    AMY-25-ZOOM

    Print

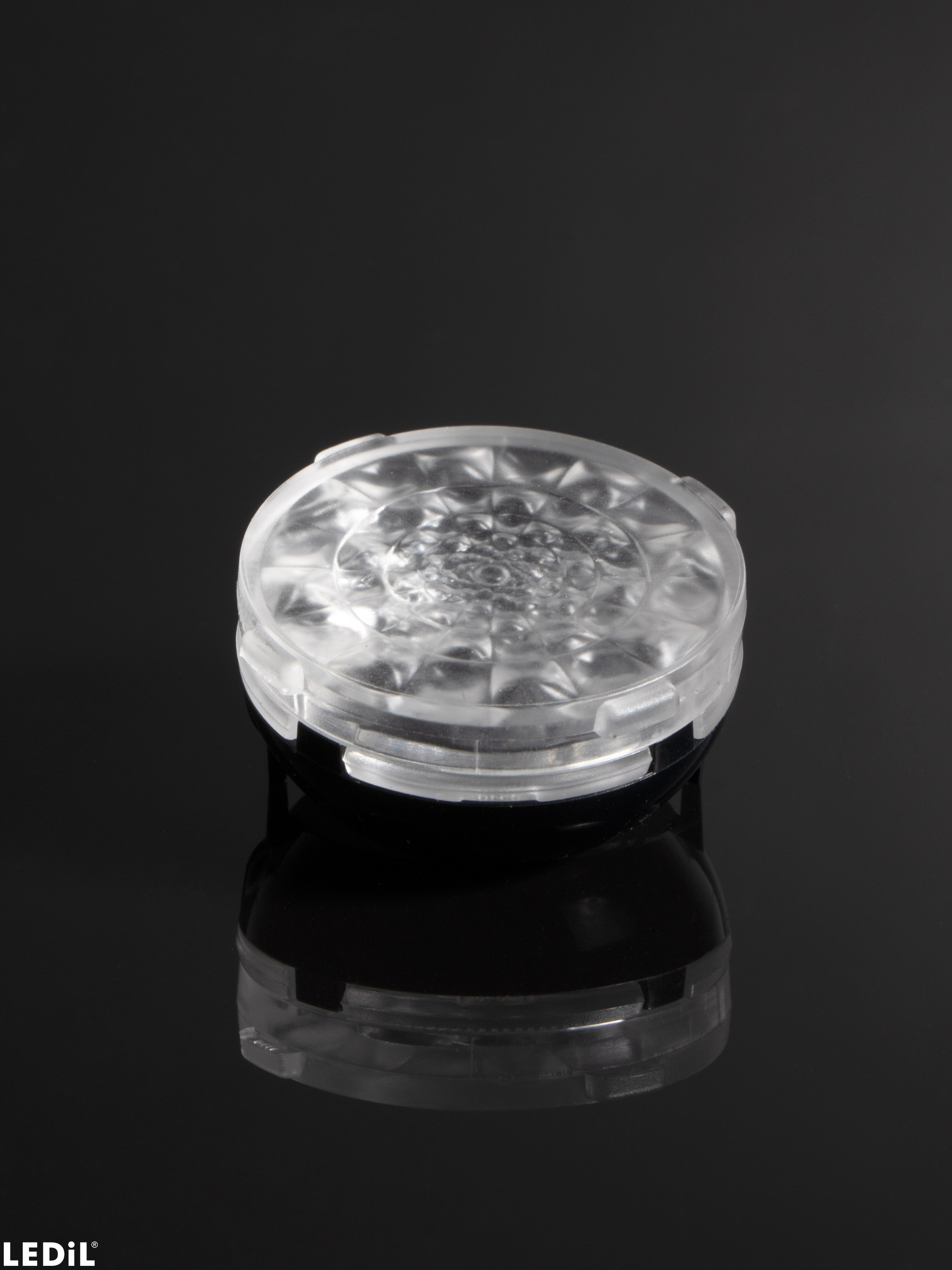

    ∅25 mm zoomable lens with infinitely adjustable beam from 20 to 50 degrees

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      25 x  25 mm
    • Height:
      12.00 mm
    • Fastening:
      tape
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantities for one set:
    • Sublens
      1 pcs
    • Assembly
      1 pcs
    • Sublens
    • C18547_AMY-25-ZOOM-SUB
    • Quantity in box:
      3375 pcs
    • Box size:
      480 x 280 x 185 mm
    • Box weight:
      5.40 kg
    • MPQ:
      135 pcs
    • MOQ:
      135 pcs
    • MOQ Size:
      480 x 280 x 20 mm
    • MOQ Weight:
      0.50 kg
    • Assembly
    • CA18549_AMY-25-ZOOM
    • Quantity in box:
      3375 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      12.70 kg
    • MPQ:
      135 pcs
    • MOQ:
      135 pcs
    • MOQ Size:
      480 x 280 x 30 mm
    • MOQ Weight:
      0.80 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18547_AMY-25-ZOOM-SUB
      CA18549_AMY-25-ZOOM

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – March/April, 2023

    News

    Zoom goes slim with AMY zoom

    Application example

    LEDiL_zoom_optics_Application_example_youtube_thumbnail

    News

    New products – January, 2023

    News

    Zoom gets smaller with AMY-25-ZOOM

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    Application guide

    Retail-lighting-opportunities-guide-2022

    News

    AMY oval – the smart choice for aisle lighting

    Article

    Explore new retail lighting opportunities

    Application guide

    Guide_for_Retail_Lighting_Optics_v.1.0_2022_WEB

    News

    AMY-35-ZOOM – Compact zoom lens for miniature designs

    Application example

    Spotlight example with AMY-35-ZOOM

    Application guide

    Guide_for_Retail_Lighting_Optics_v.1.0_2021_WEB

    Application example

    Spotlight lighting with AMY-50

    Application area

    Retail Lighting

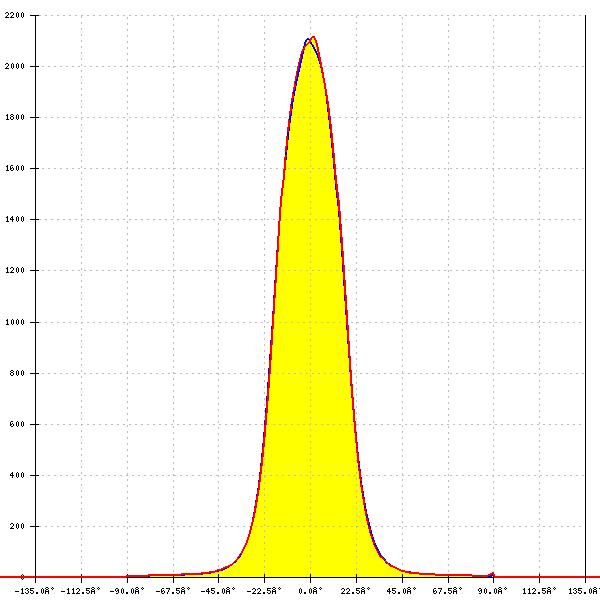

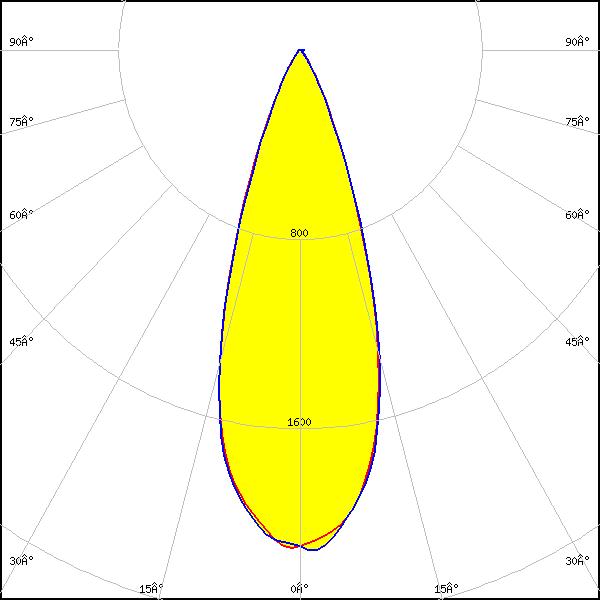

    Optical results

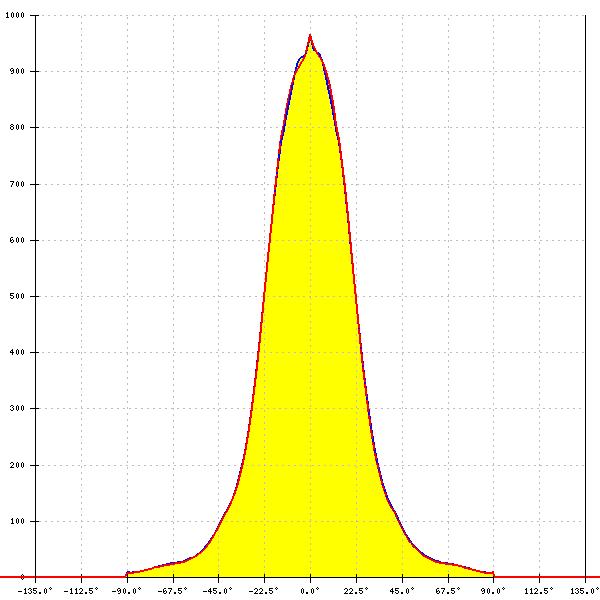

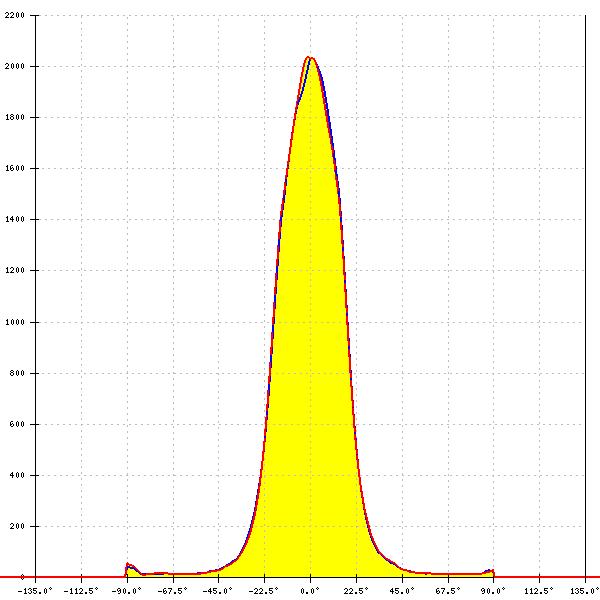

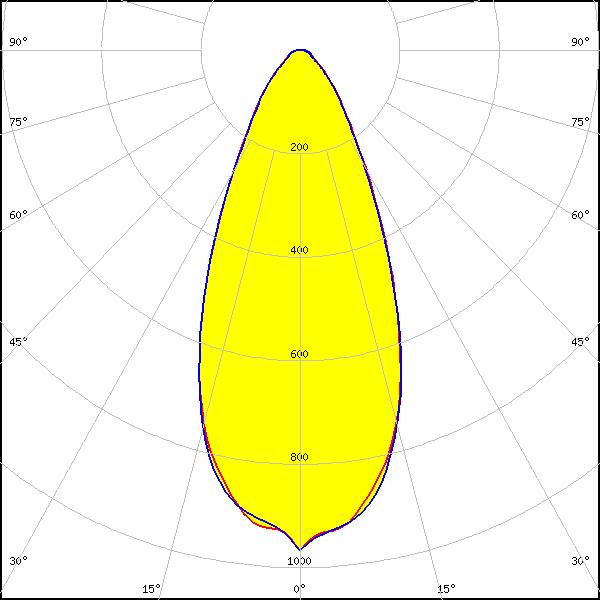

    LED: CSP 2727 (BXCP)
    FWHM: 36° - 57°
    FWTM: 72° - 97°
    Peak intensity: 1.375 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 4
    Light colour/type: White

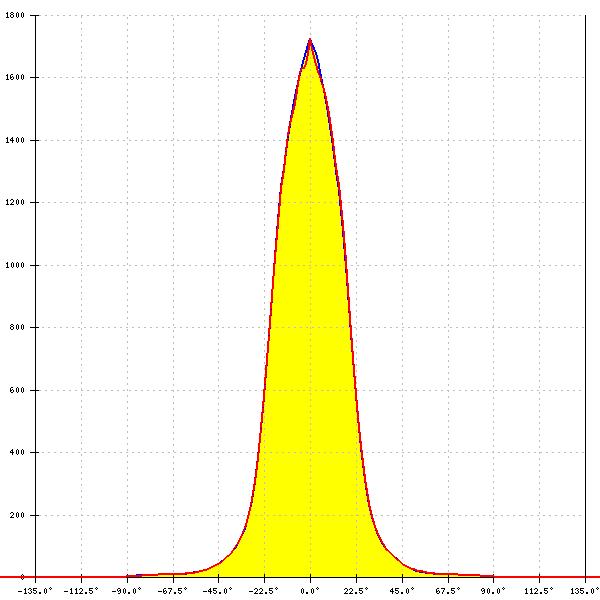

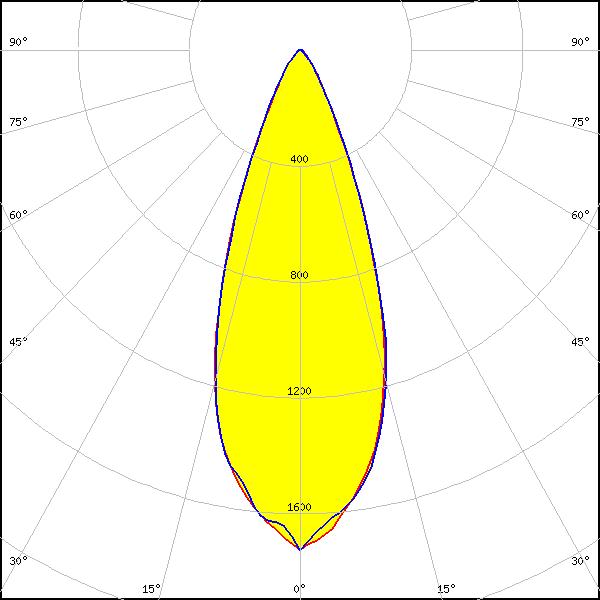

    LED: CLU7B2
    FWHM: 18° - 52°
    FWTM: 40° - 77°
    Peak intensity: 4.752 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

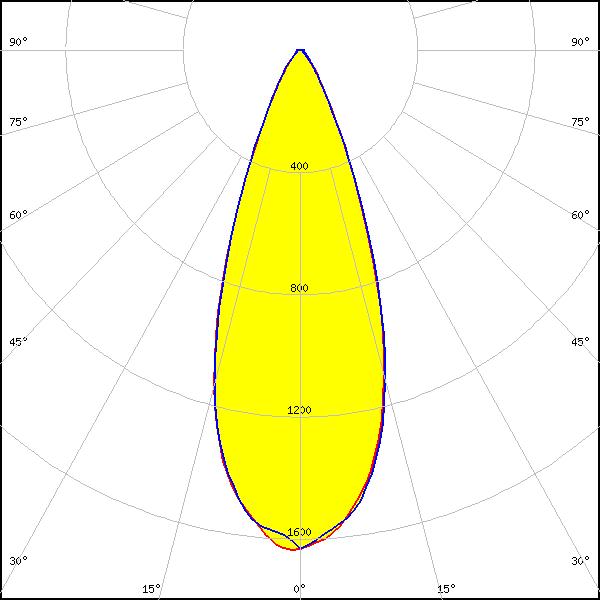

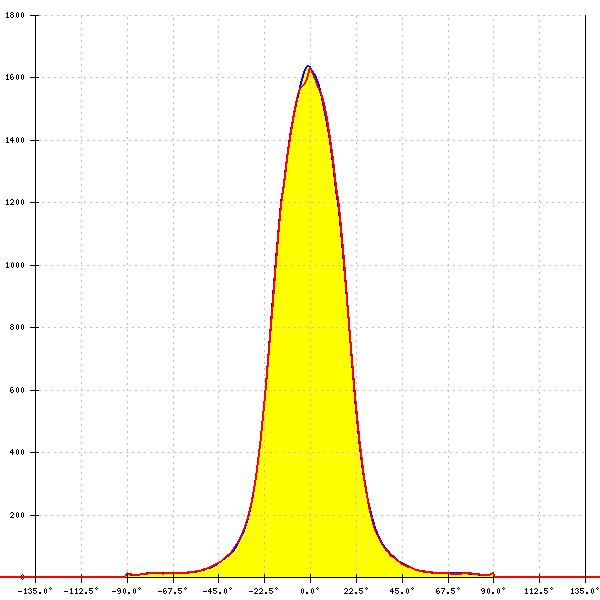

    LED: XHP35.2 HI
    FWHM: 18° - 51°
    FWTM: 38° - 78°
    Peak intensity: 4.831 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

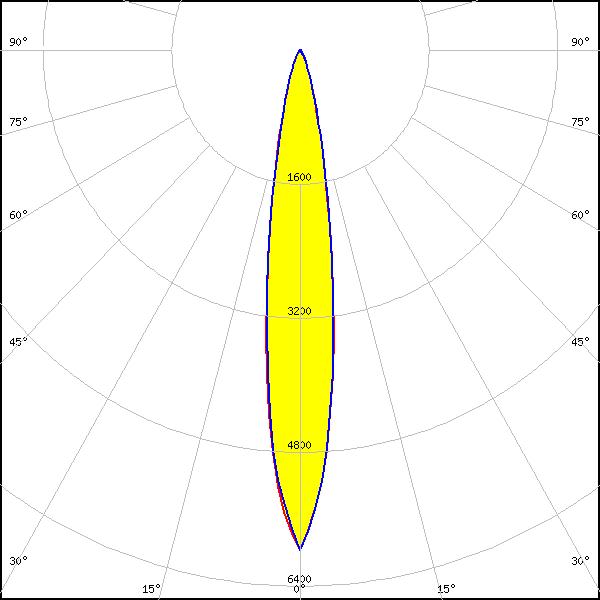

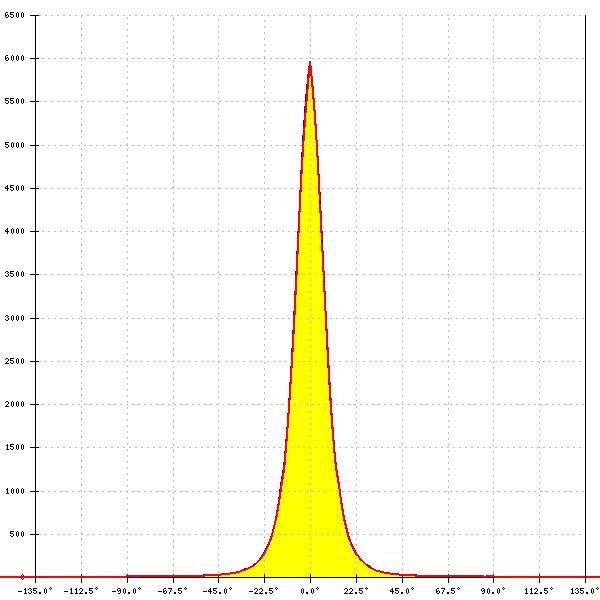

    LED: XP-G3
    FWHM: 16° - 49°
    FWTM: 34° - 80°
    Peak intensity: 5.974 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

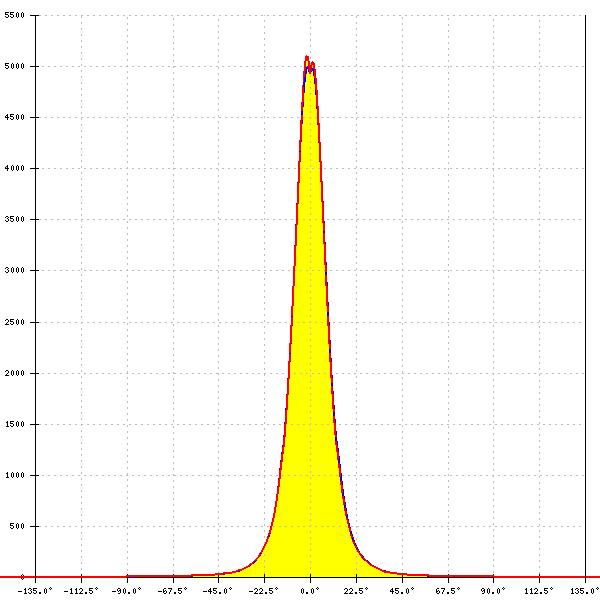

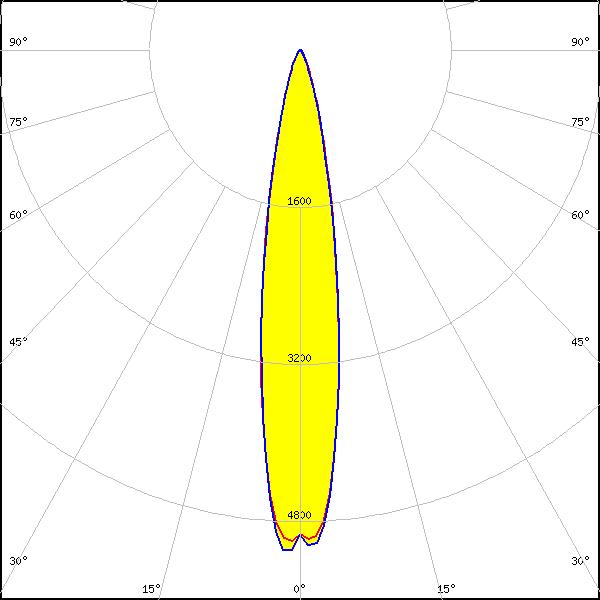

    LED: XP-L HD
    FWHM: 18° - 50°
    FWTM: 38° - 82°
    Peak intensity: 5.101 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

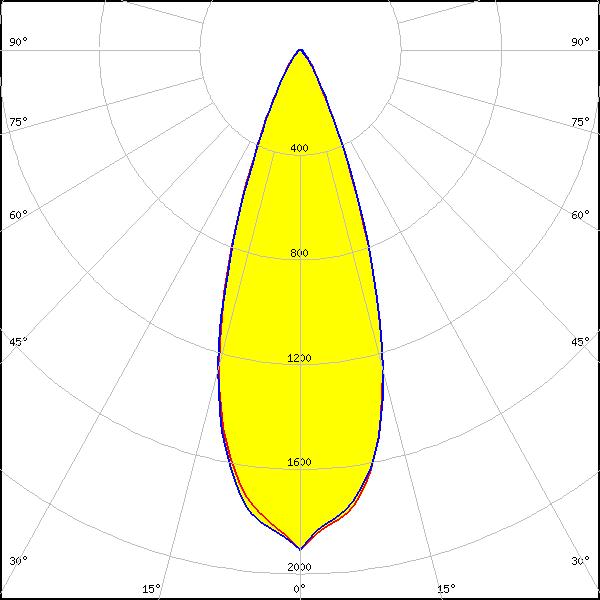

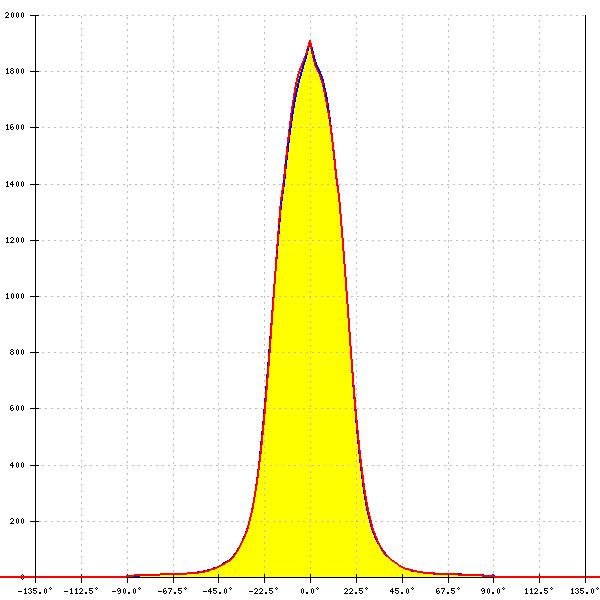

    LED: LUXEON HL2X
    FWHM: 16° - 50°
    FWTM: 34° - 70°
    Peak intensity: 6.335 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

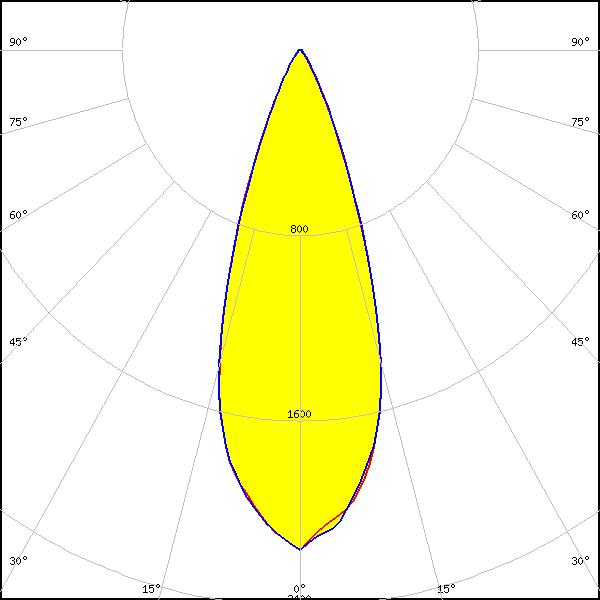

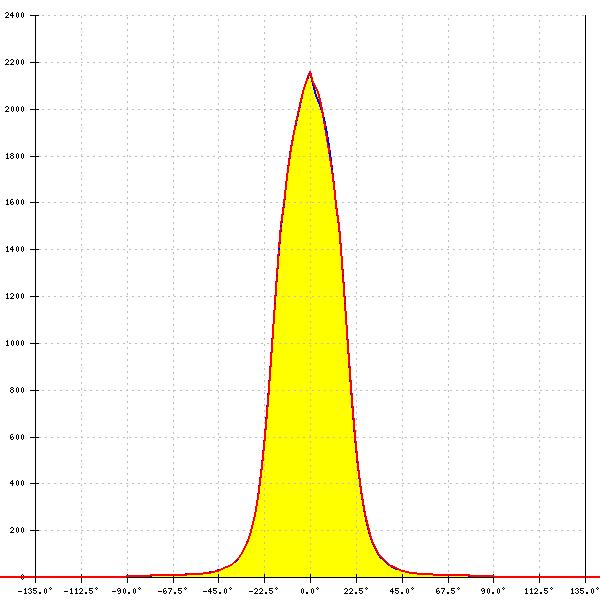

    LED: SFT-40-WCS
    FWHM: 14° - 48°
    FWTM: 28° - 71°
    Peak intensity: 9.293 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

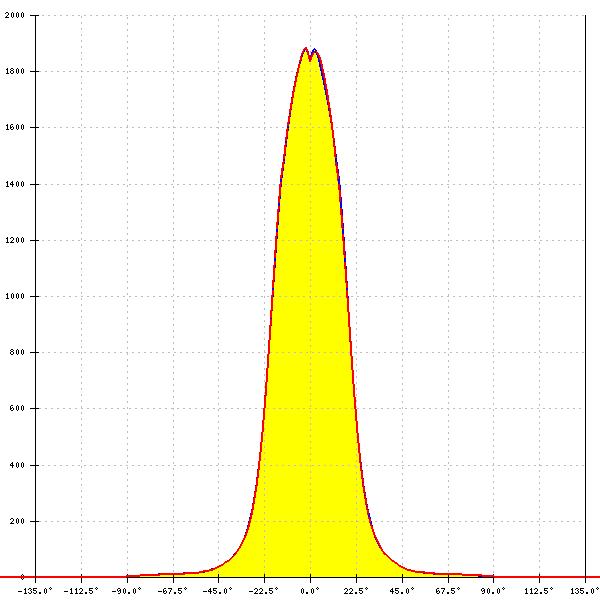

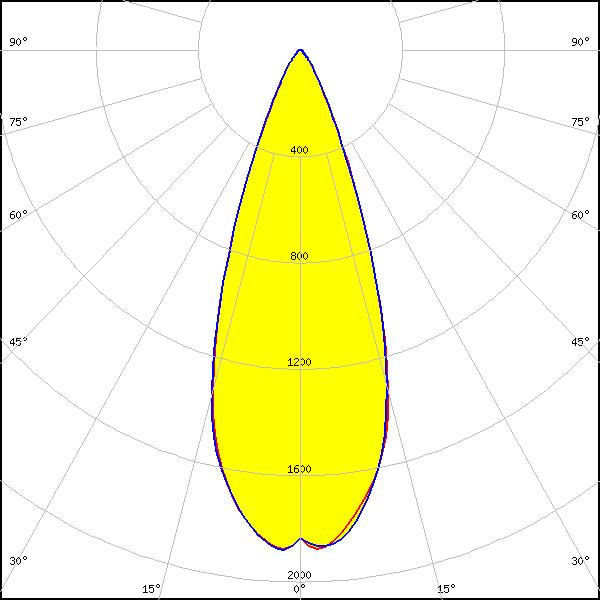

    LED: SFT-70X-WCS
    FWHM: 16° - 51°
    FWTM: 32° - 74°
    Peak intensity: 7.008 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

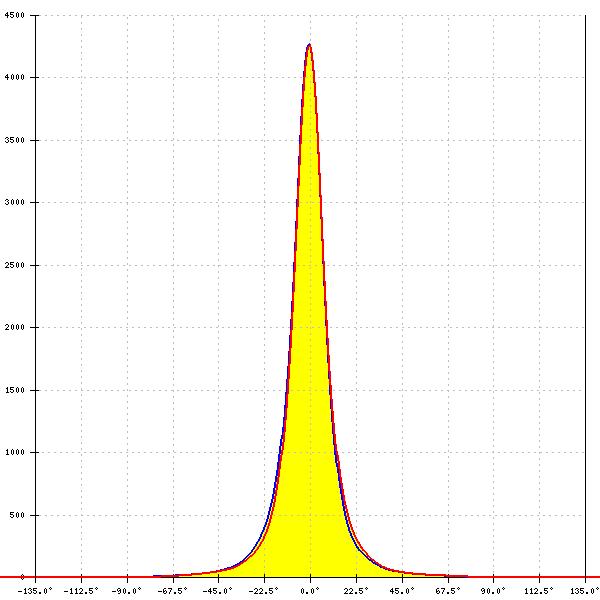

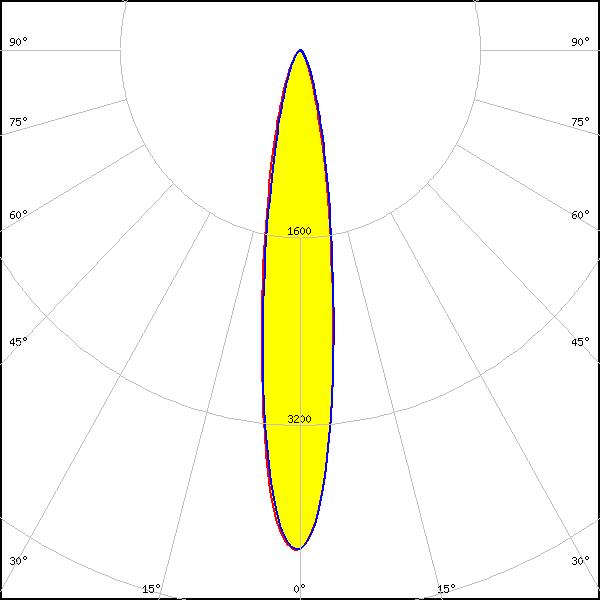

    LED: SST-40
    FWHM: 17° - 49°
    FWTM: 40° - 76°
    Peak intensity: 4.267 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

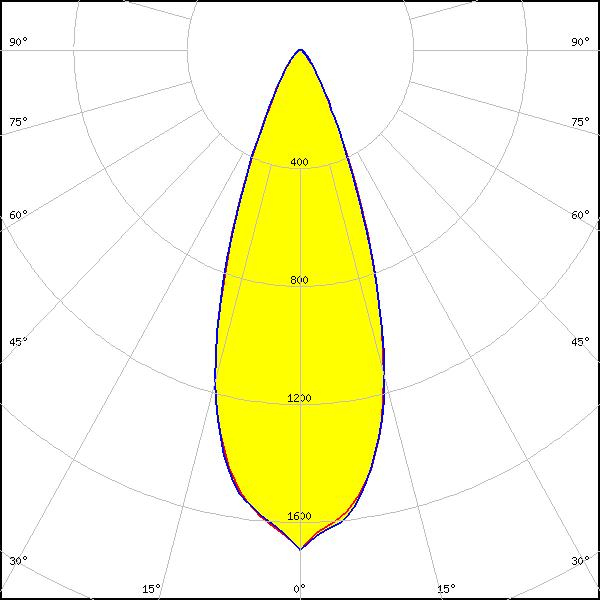

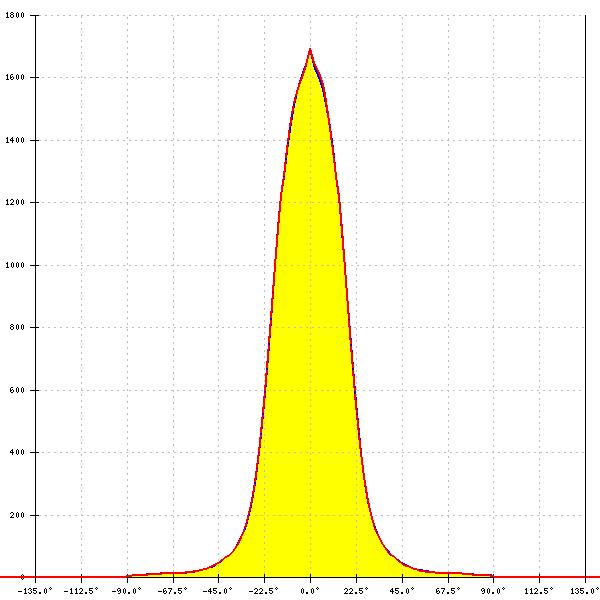

    LED: NV4WB35AM
    FWHM: 18° - 52°
    FWTM: 38° - 78°
    Peak intensity: 4.968 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

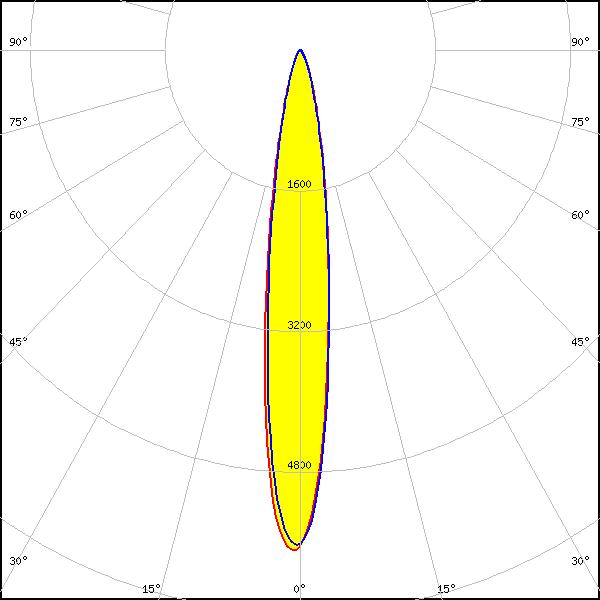

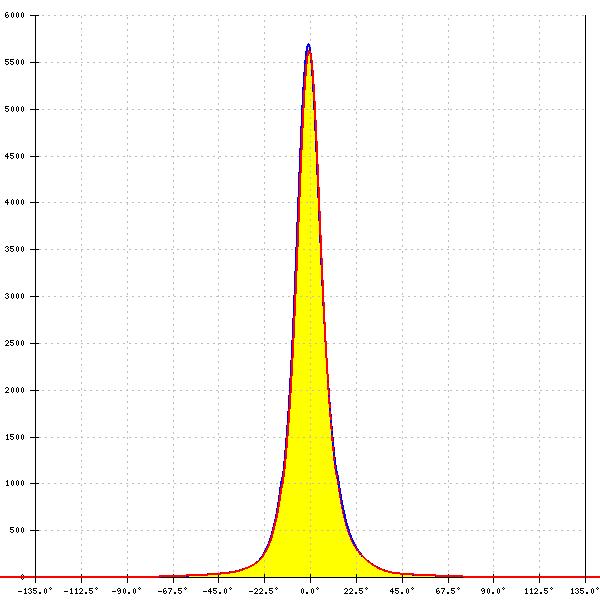

    LED: NVSW719AC
    FWHM: 15° - 46°
    FWTM: 35° - 71°
    Peak intensity: 5.701 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

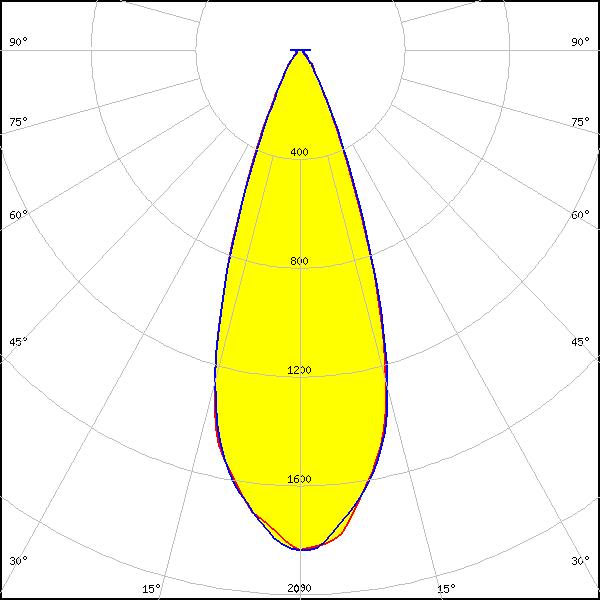

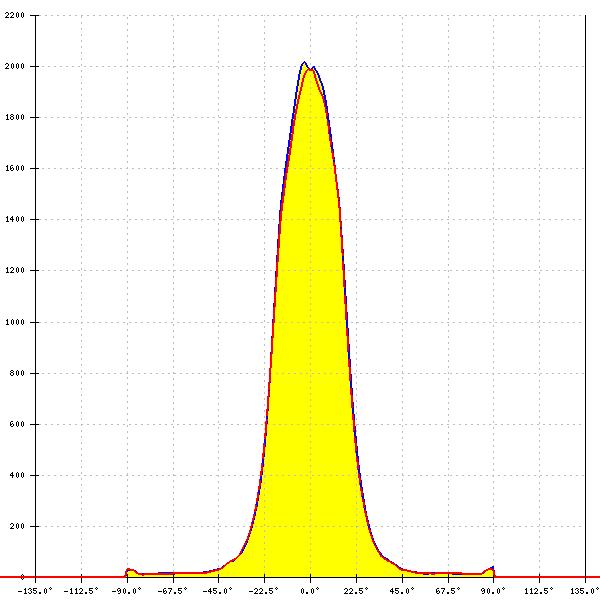

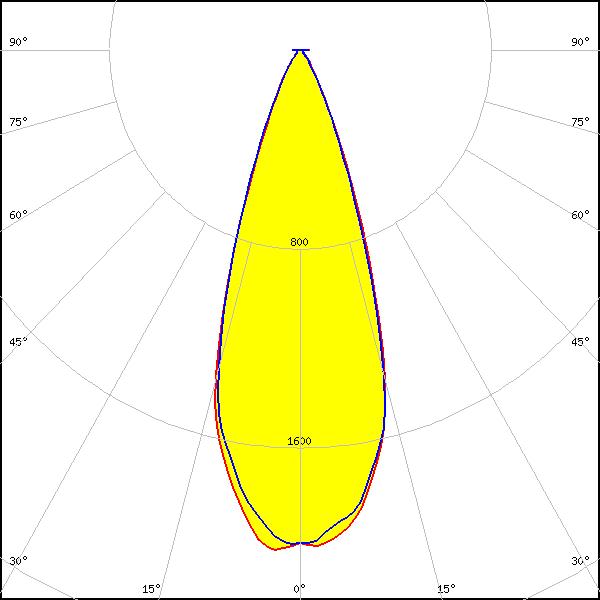

    LED: OSCONIQ P 3737 (2W version)
    FWHM: 12° - 49°
    FWTM: 28° - 72°
    Peak intensity: 9.259 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

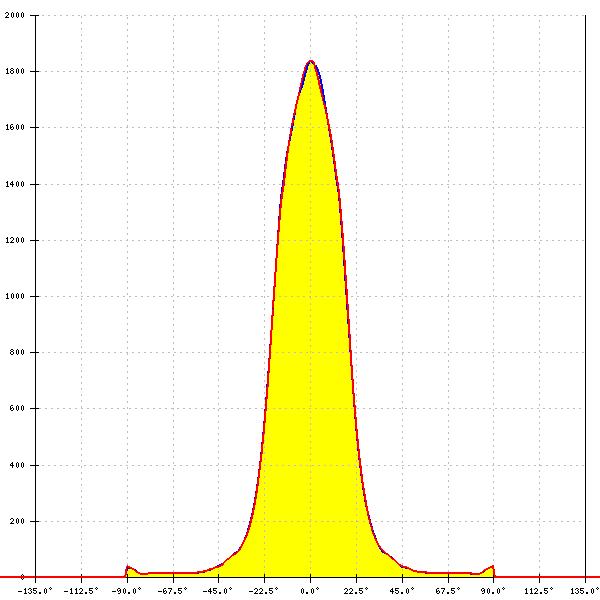

    LED: OSCONIQ P 3737 (3W version)
    FWHM: 16° - 51°
    FWTM: 34° - 75°
    Peak intensity: 6.319 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

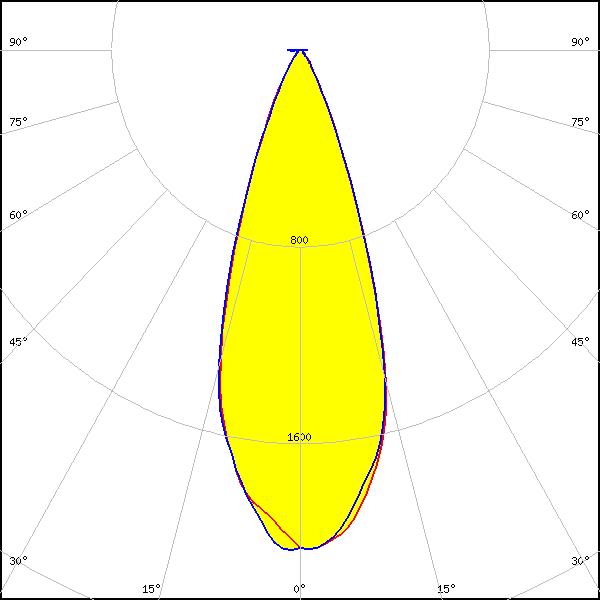

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 12° - 49°
    FWTM: 28° - 71°
    Peak intensity: 9.015 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

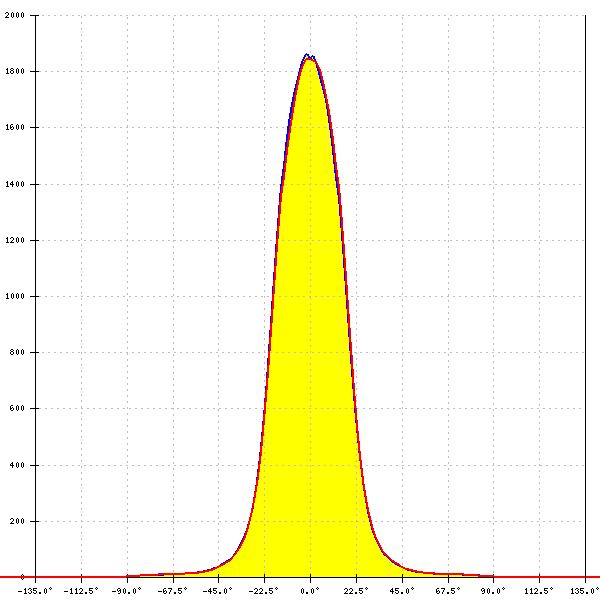

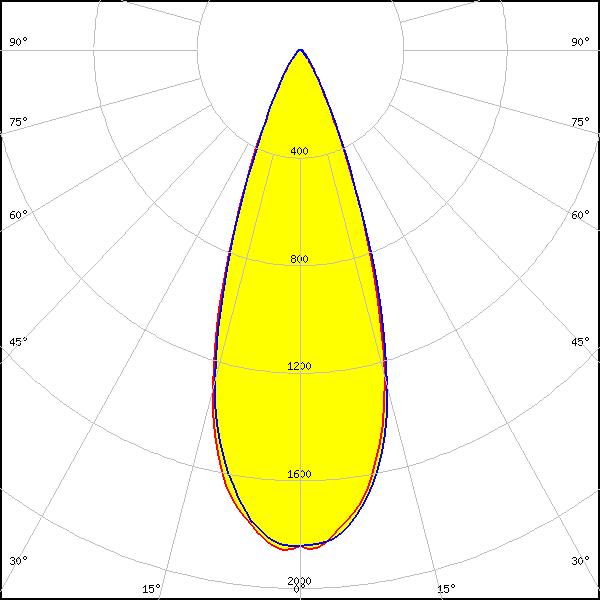

    LED: LH351C
    FWHM: 16° - 50°
    FWTM: 34° - 74°
    Peak intensity: 6.444 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

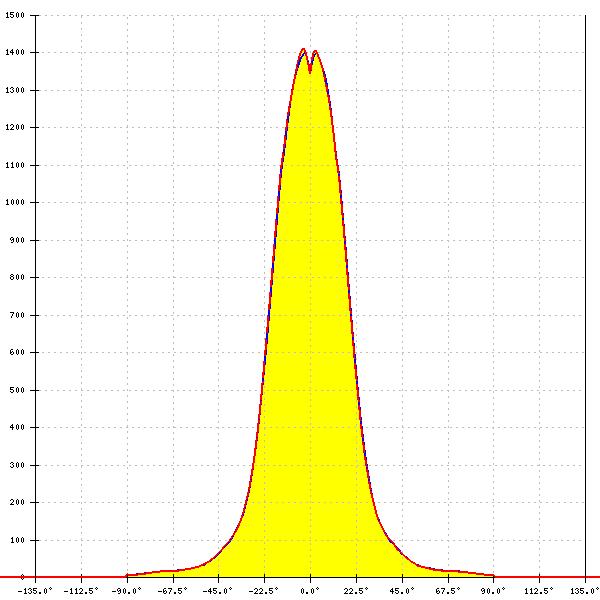

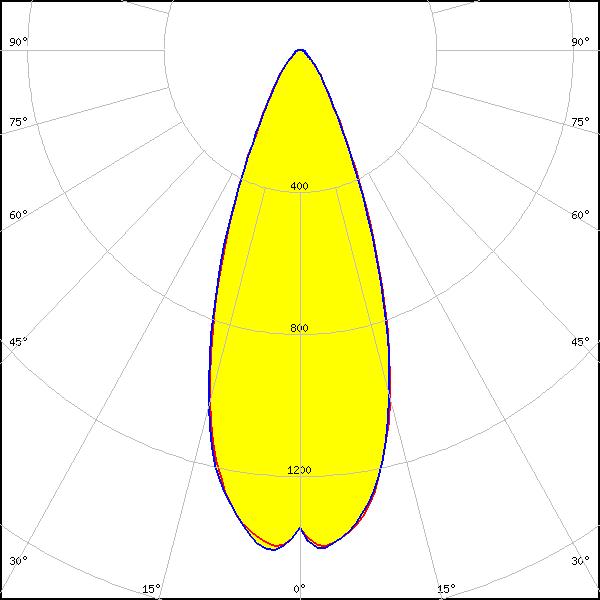

    LED: LH502D
    FWHM: 22° - 52°
    FWTM: 46° - 85°
    Peak intensity: 3.374 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

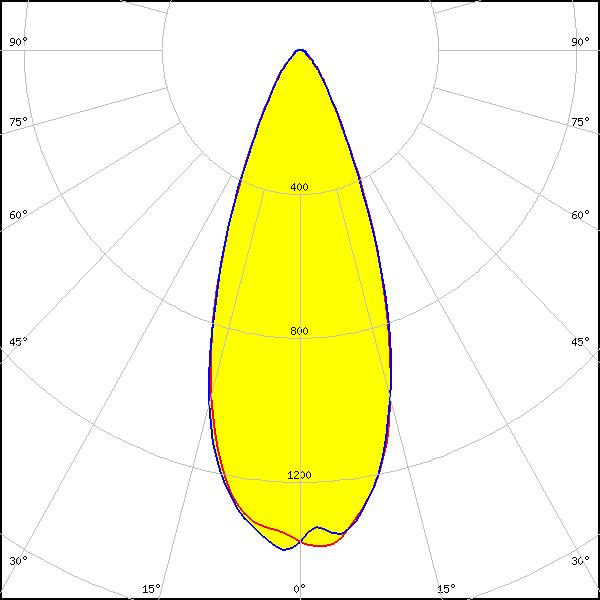

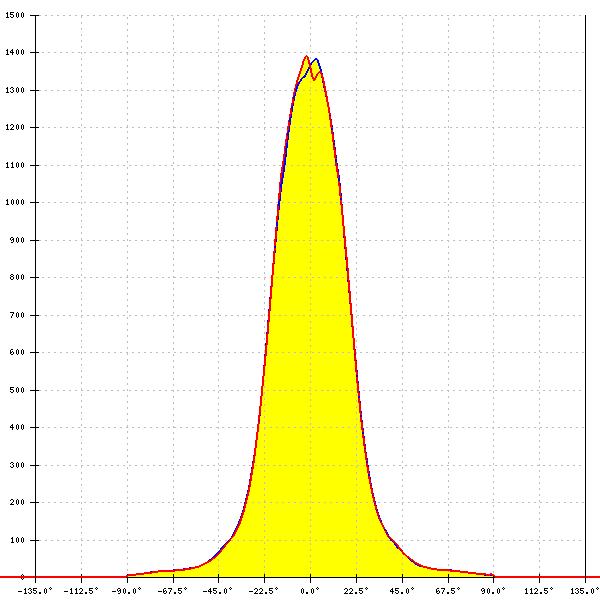

    LED: SEOUL DC 5050 6V
    FWHM: 22° - 54°
    FWTM: 48° - 86°
    Peak intensity: 3.028 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

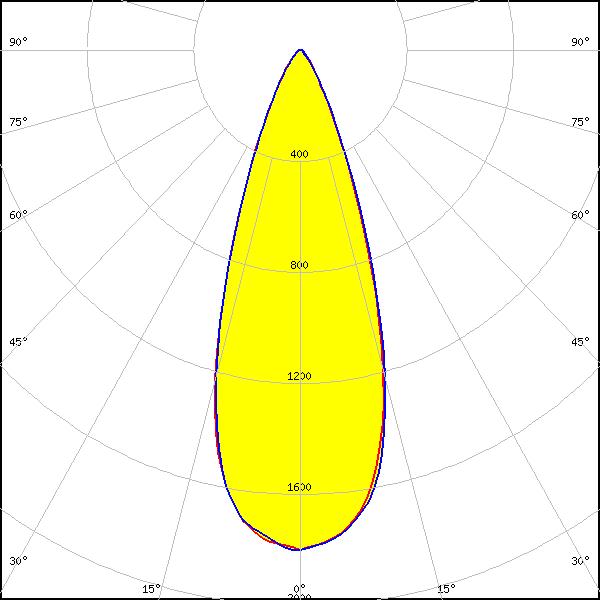

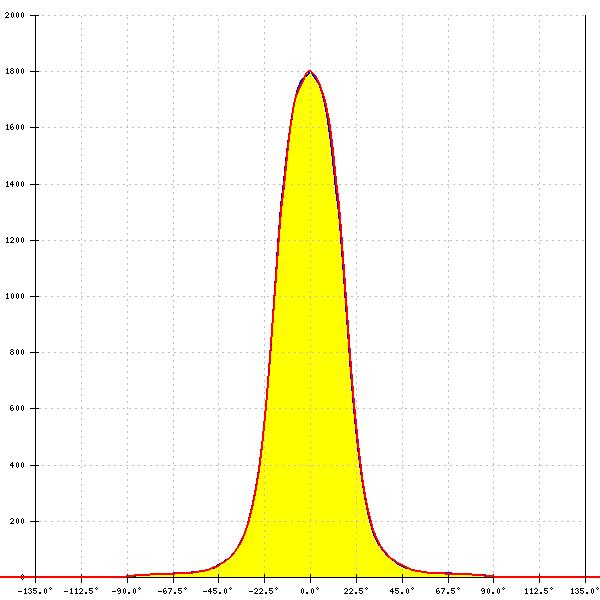

    LED: Z5M4
    FWHM: 18° - 50°
    FWTM: 36° - 76°
    Peak intensity: 5.678 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
