C18604_AMBER-2X2-ME
PrintBeam with excellent longitudinal luminance uniformity fulfilling EN13201 M-class requirements where road width is equal to or less the pole height.
Specification
-
Dimensions:50 x 50 mm
-
Height:7.10 mm
-
Fastening:glue, pin, screw
-
RoHS and REACH compliant:Yes
Materials
Ordering information
-
Quantity in box:800 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:7.9 kg
-
MPQ:160 pcs
-
MOQ:160 pcs
-
MOQ size:480 x 280 x 80 mm
-
MOQ weight:1.8 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
Optical results

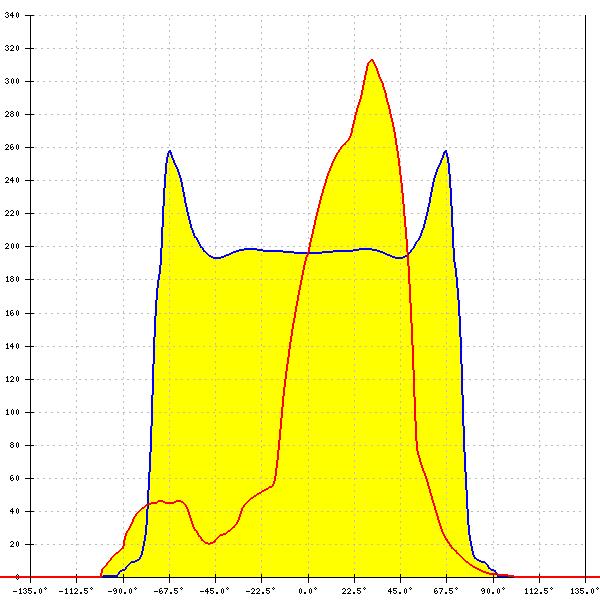

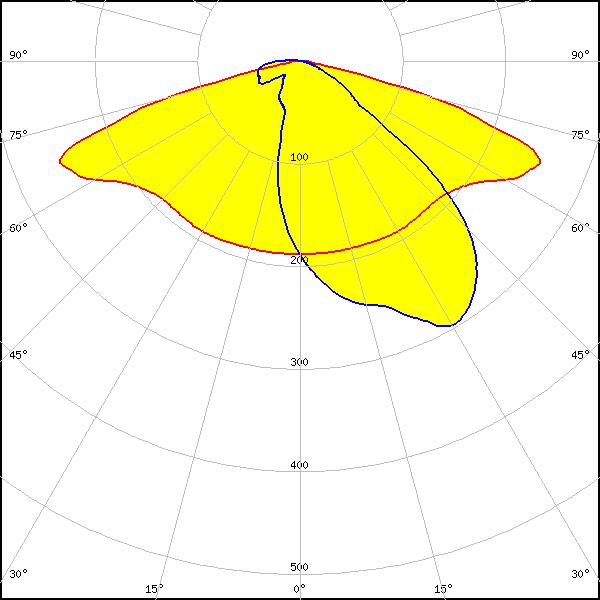

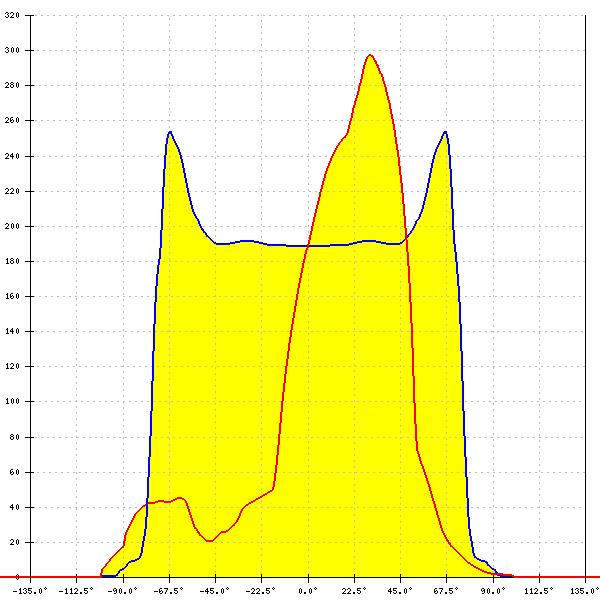

LED:

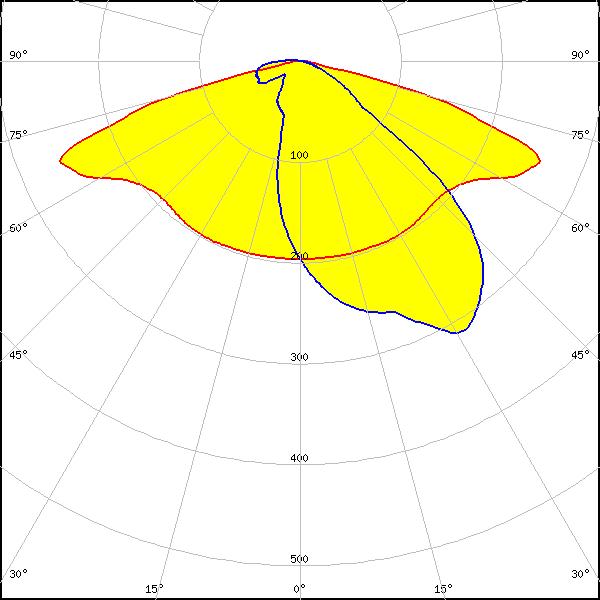

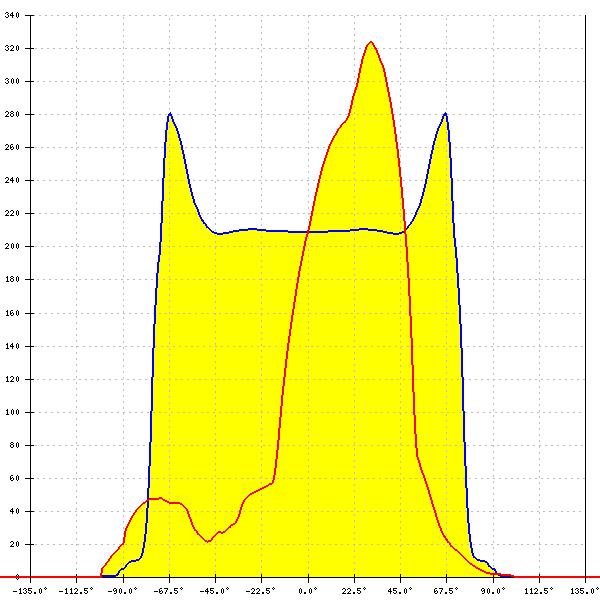

J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.457 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.434 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.478 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.444 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.490 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity:
0.478 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity:
0.430 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity:
0.516 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

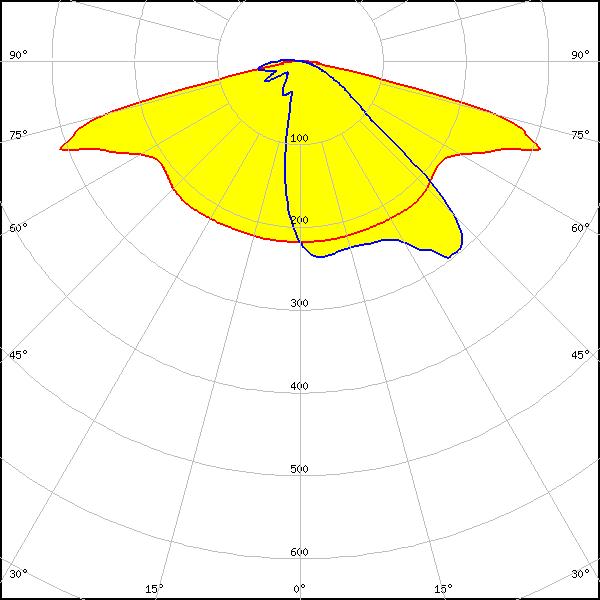

LED:
XP-G3
FWHM: asymmetric
Peak intensity:
0.675 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3900 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

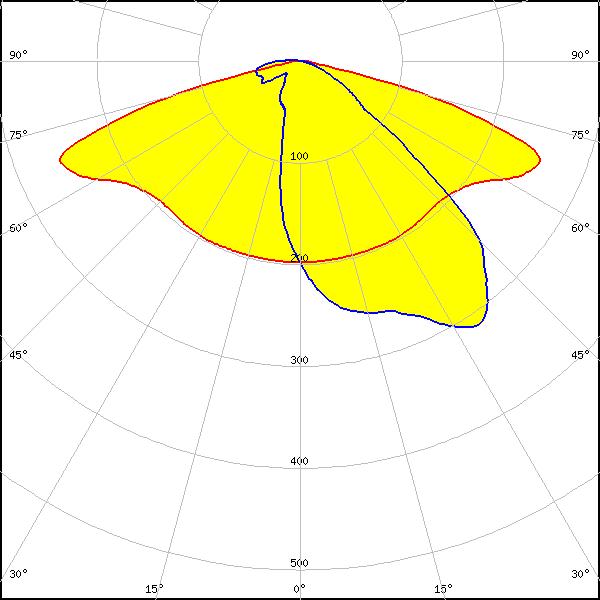

LED:
LUXEON 5050 HE
FWHM: asymmetric
Peak intensity:
0.478 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3900 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

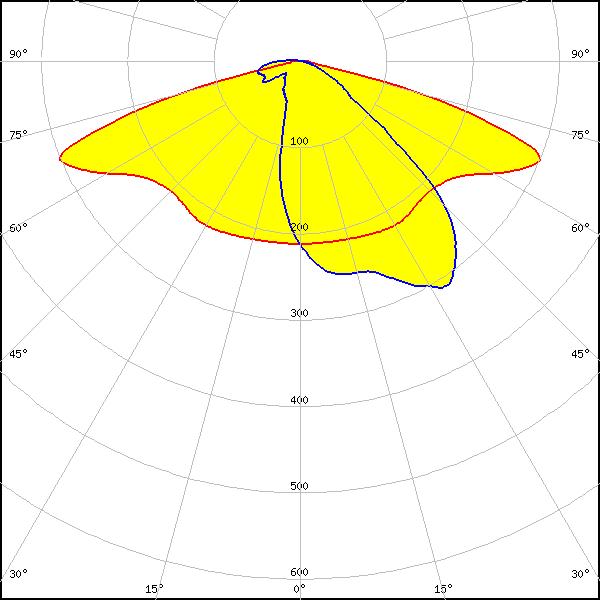

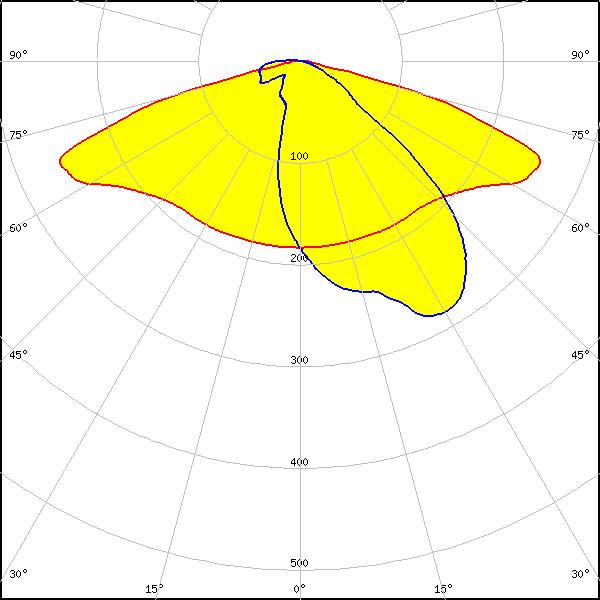

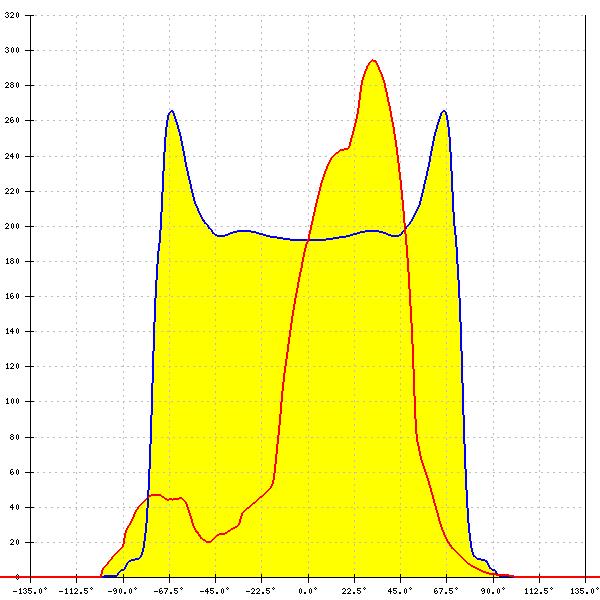

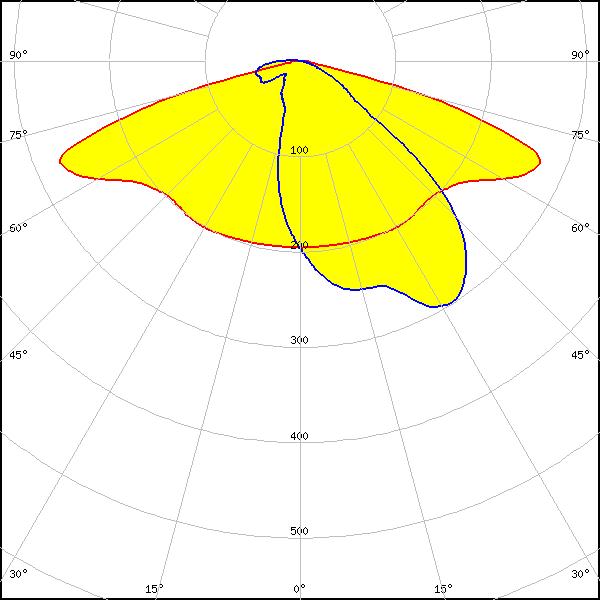

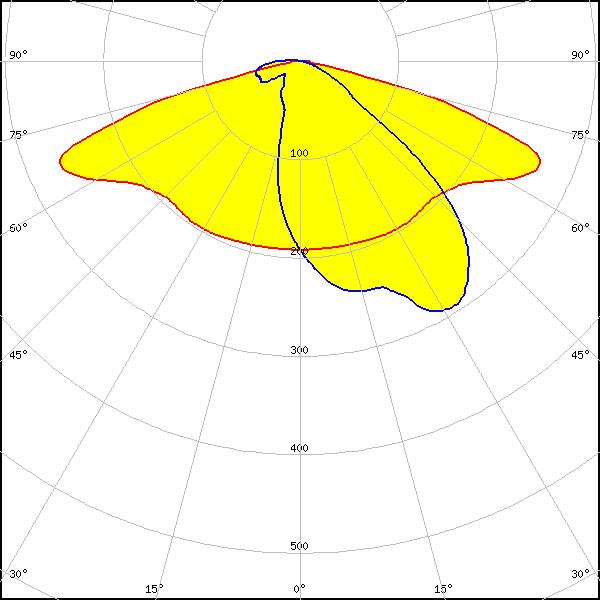

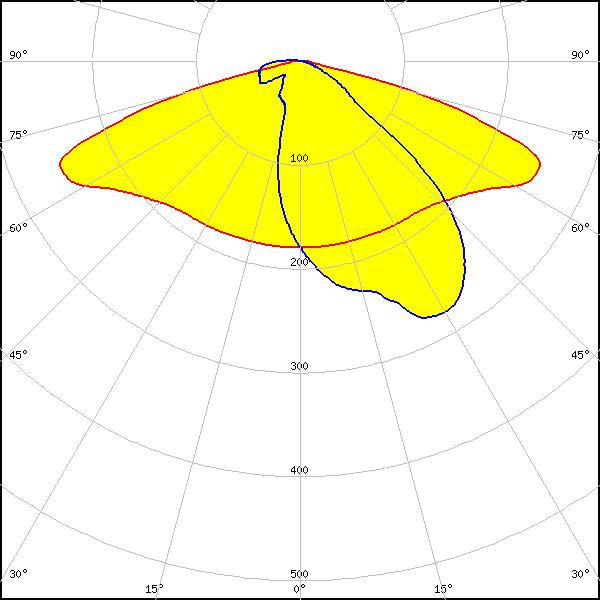

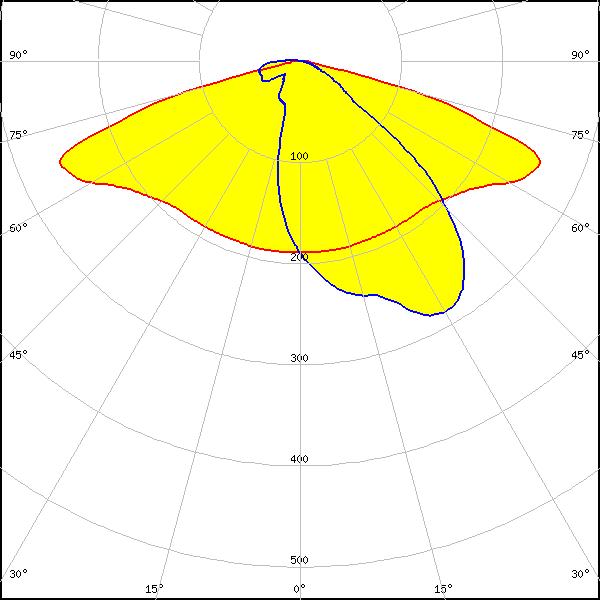

LED:

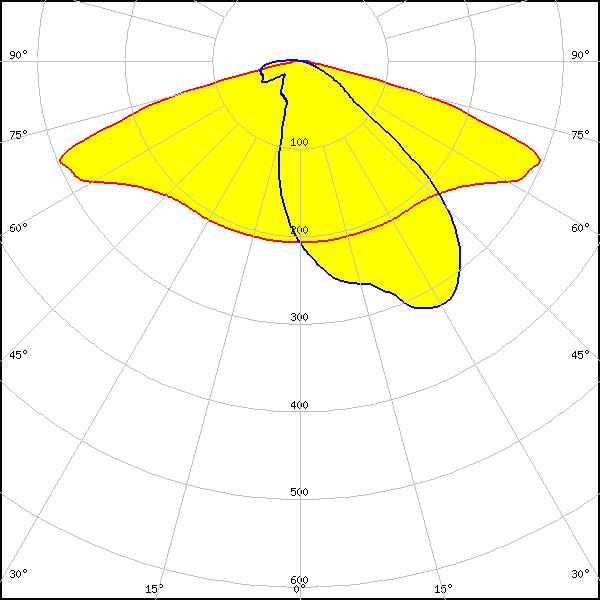

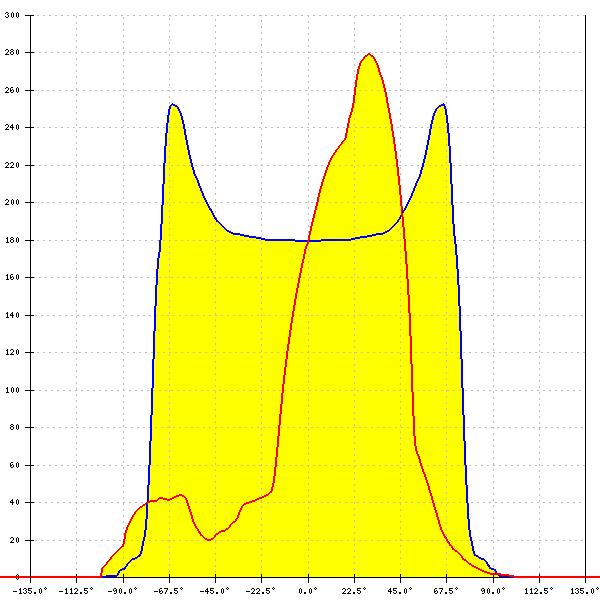

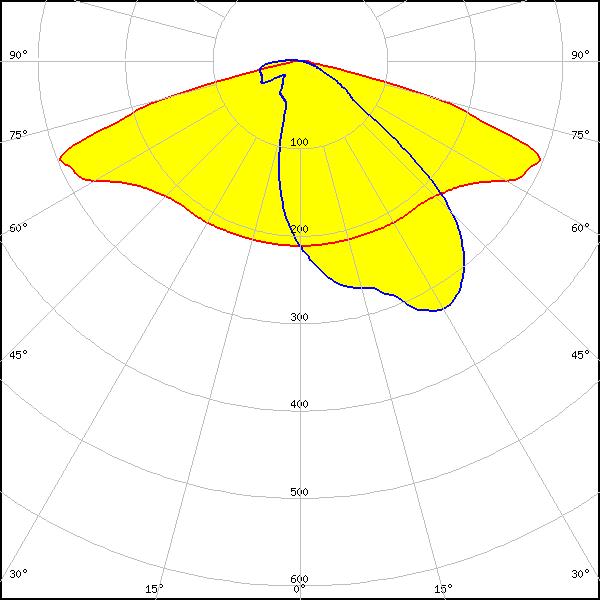

LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.415 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.444 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

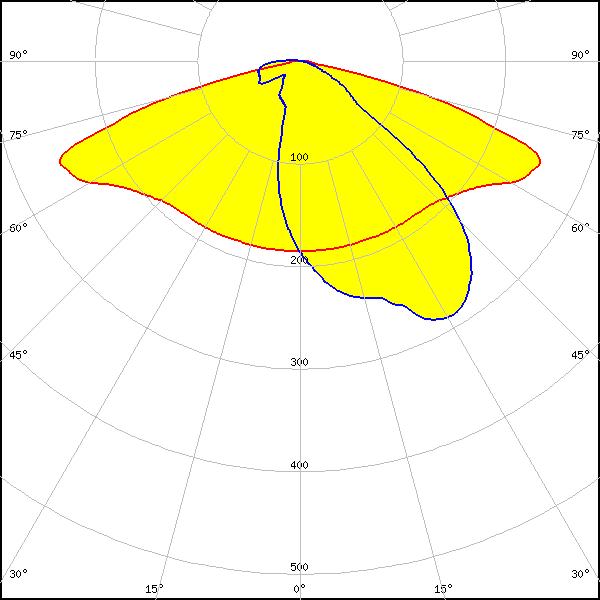

LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.418 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.417 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.522 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.400 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.435 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.485 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

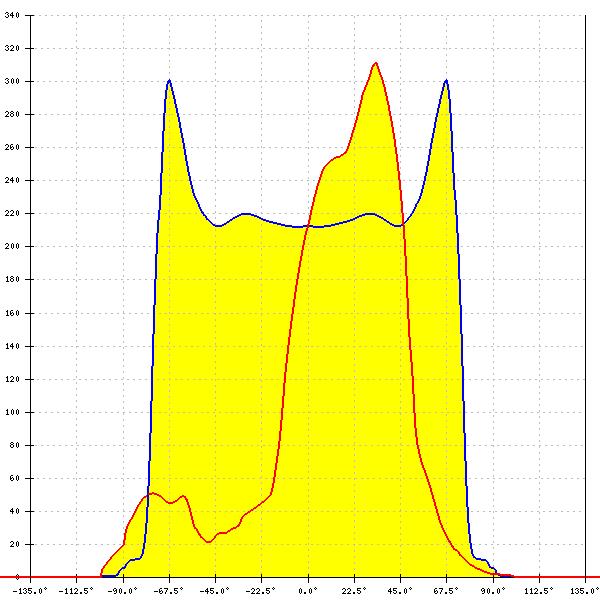

LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.476 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity:
0.494 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

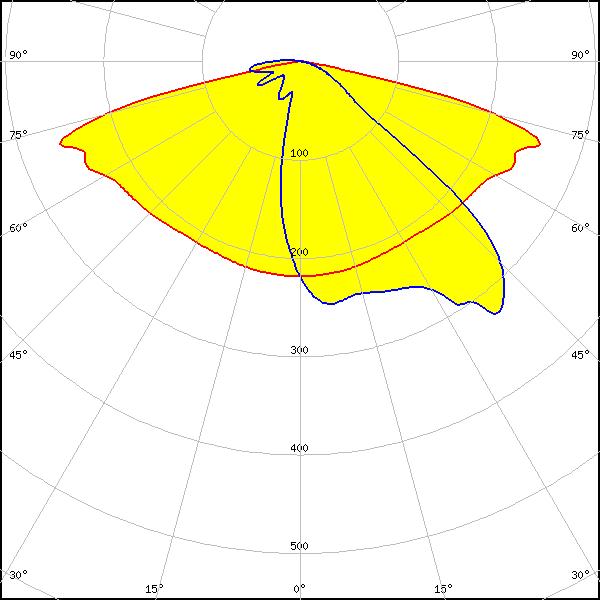

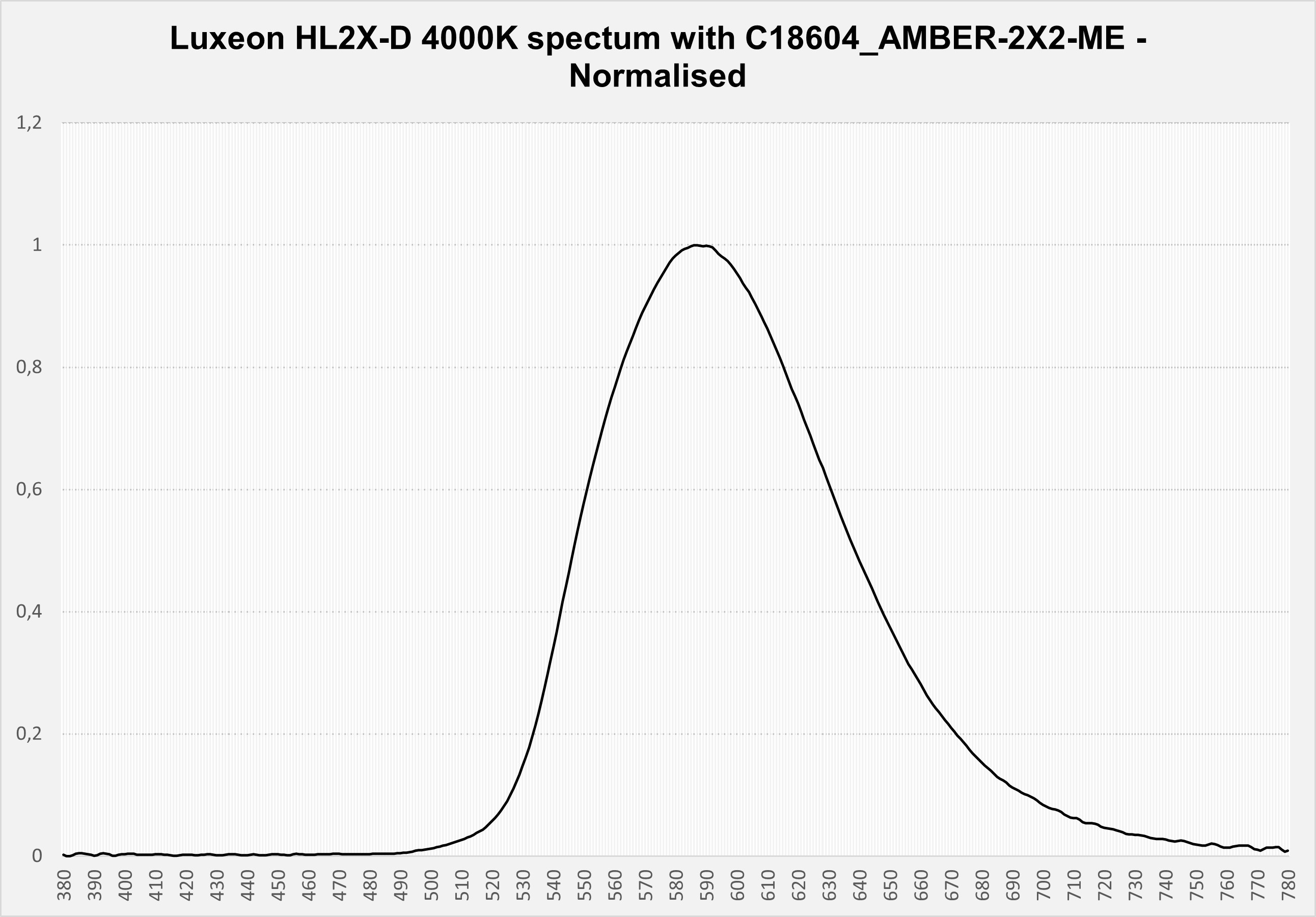

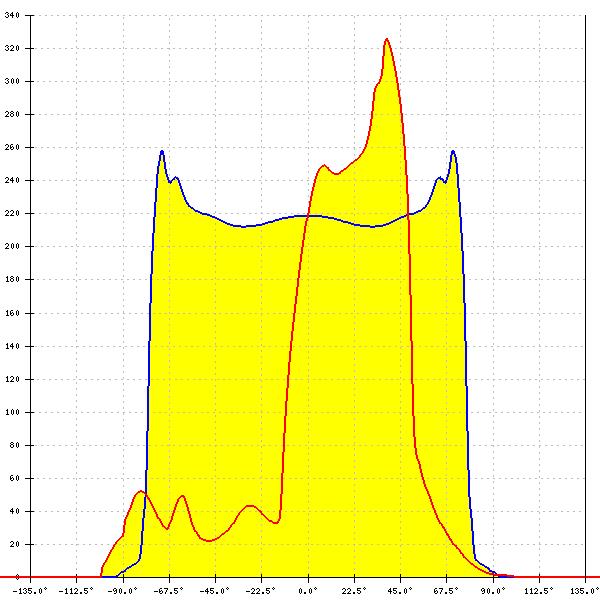

LED:
LUXEON HL2X-D
FWHM: asymmetric
Peak intensity:
0.570 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.4%
CCT (LED/with lens)*:
4000 K/ 2400 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

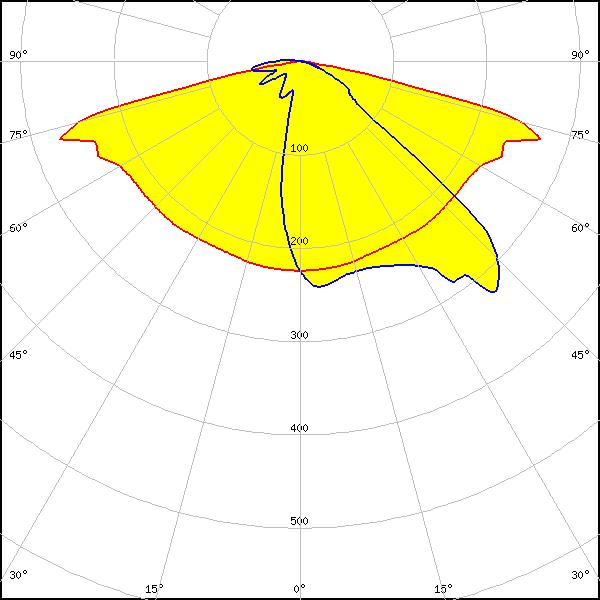

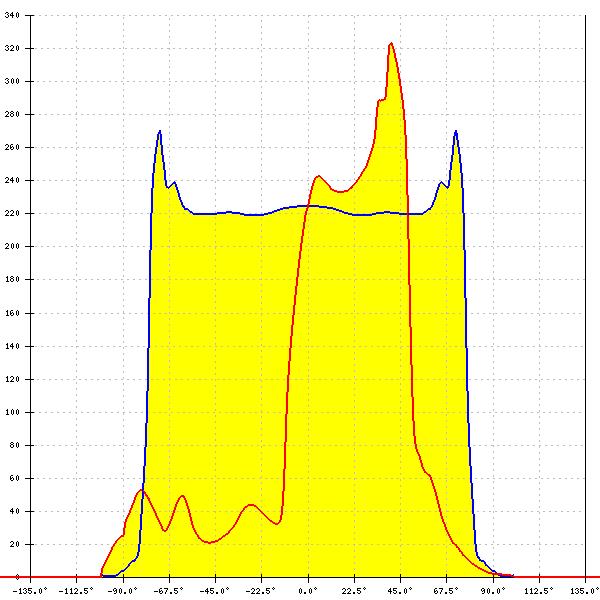

LED:
NVSW219F
FWHM: asymmetric
Peak intensity:
0.699 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.4%
CCT (LED/with lens)*:
3900 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
LED:

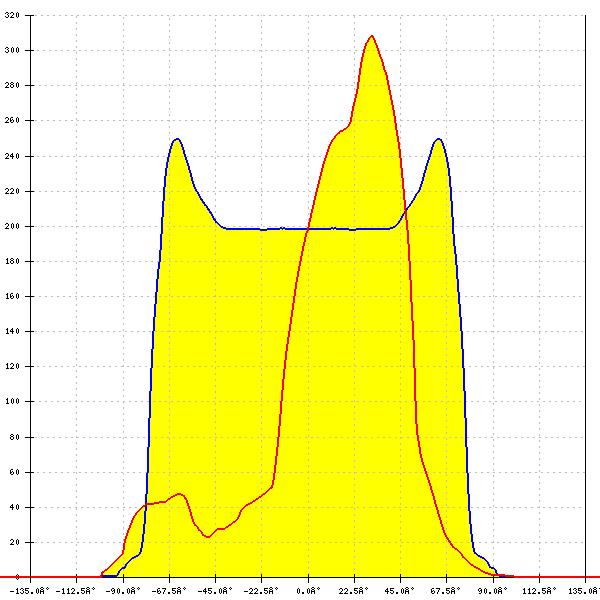

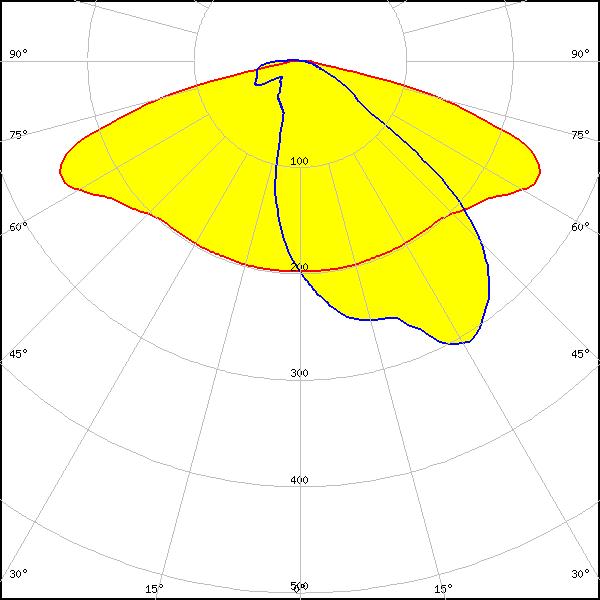

Duris S8
FWHM: asymmetric
Peak intensity:
0.416 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

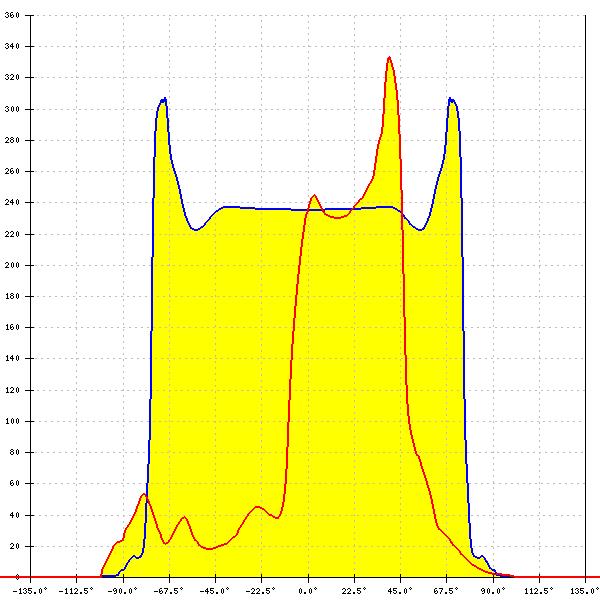

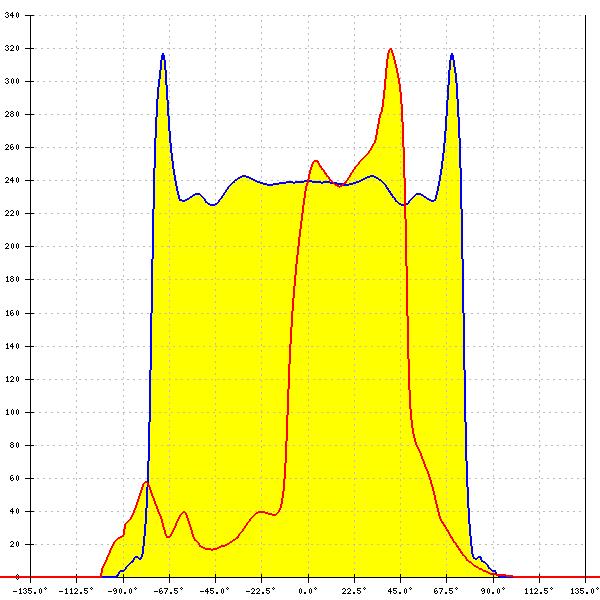

LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.801 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

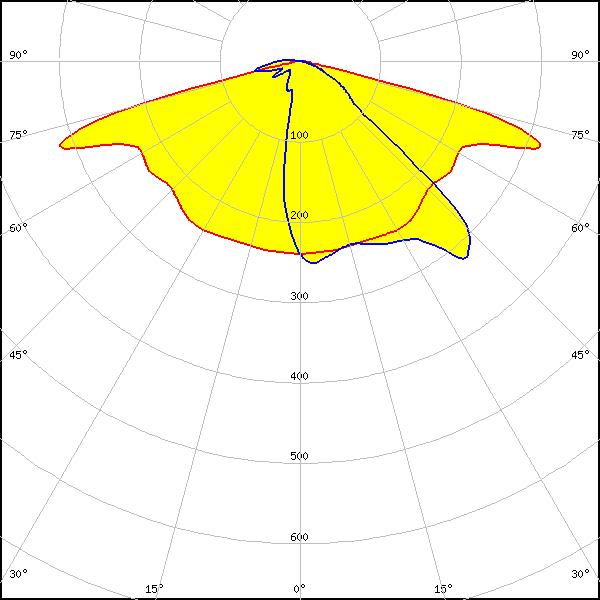

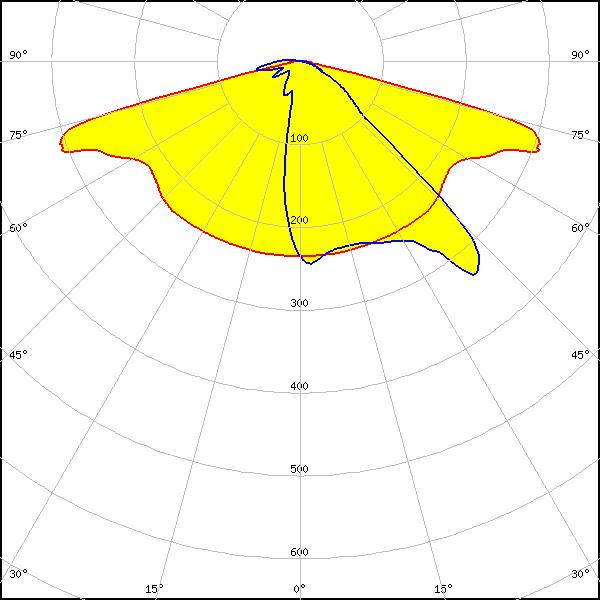

LED:
OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity:
0.750 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.4%
CCT (LED/with lens)*:
3900 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
LED:
Fortimo FastFlex LED 2x8 DA G4+
FWHM: asymmetric
Peak intensity:
0.598 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G5
FWHM: asymmetric
Peak intensity:
0.726 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

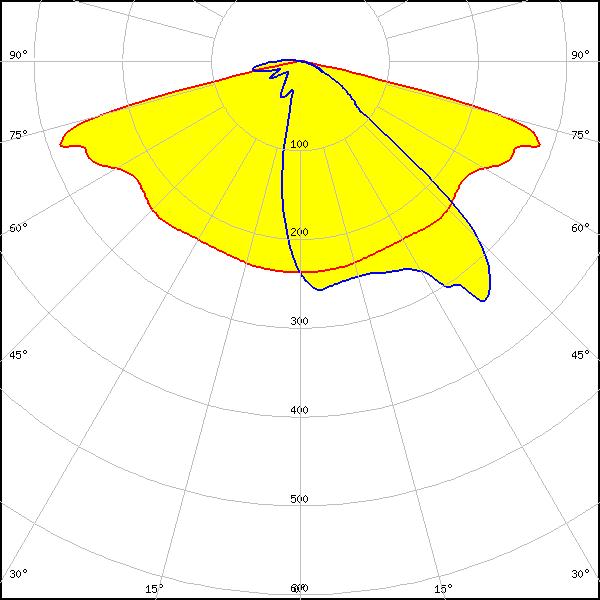

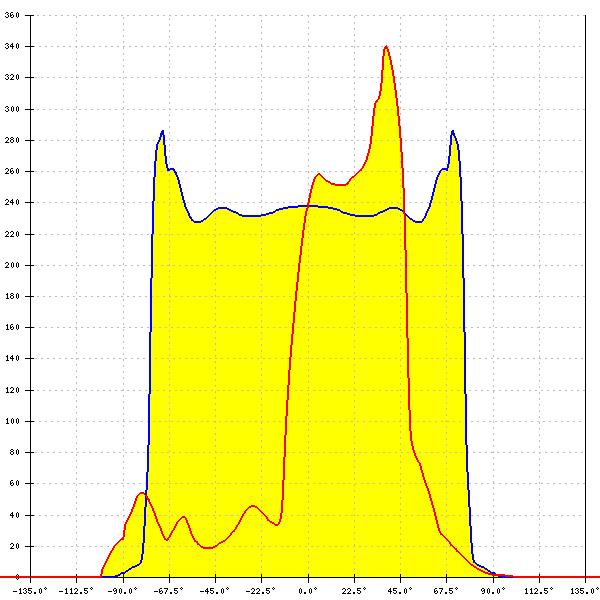

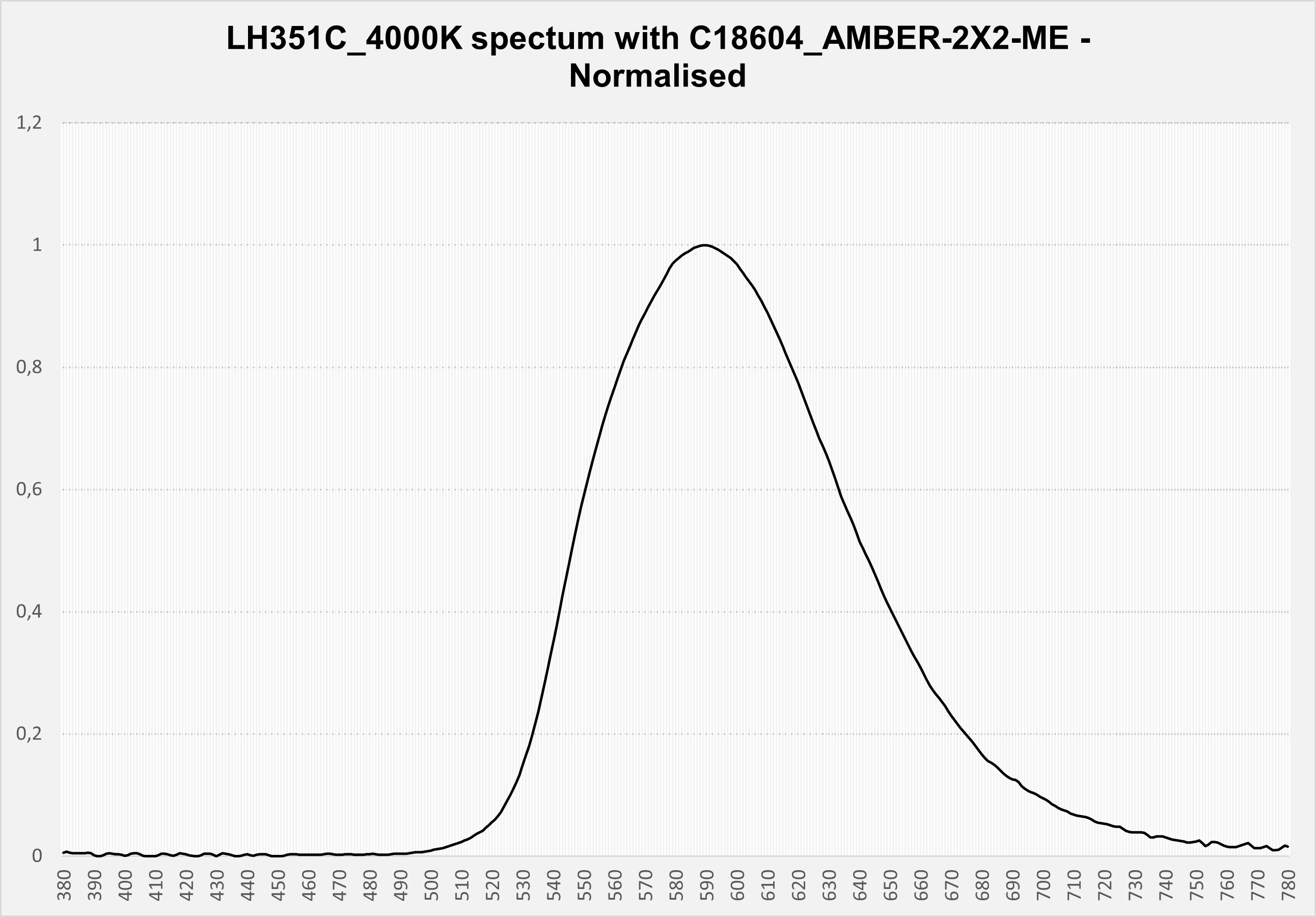

LED:
LH351C
FWHM: asymmetric
Peak intensity:
0.691 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

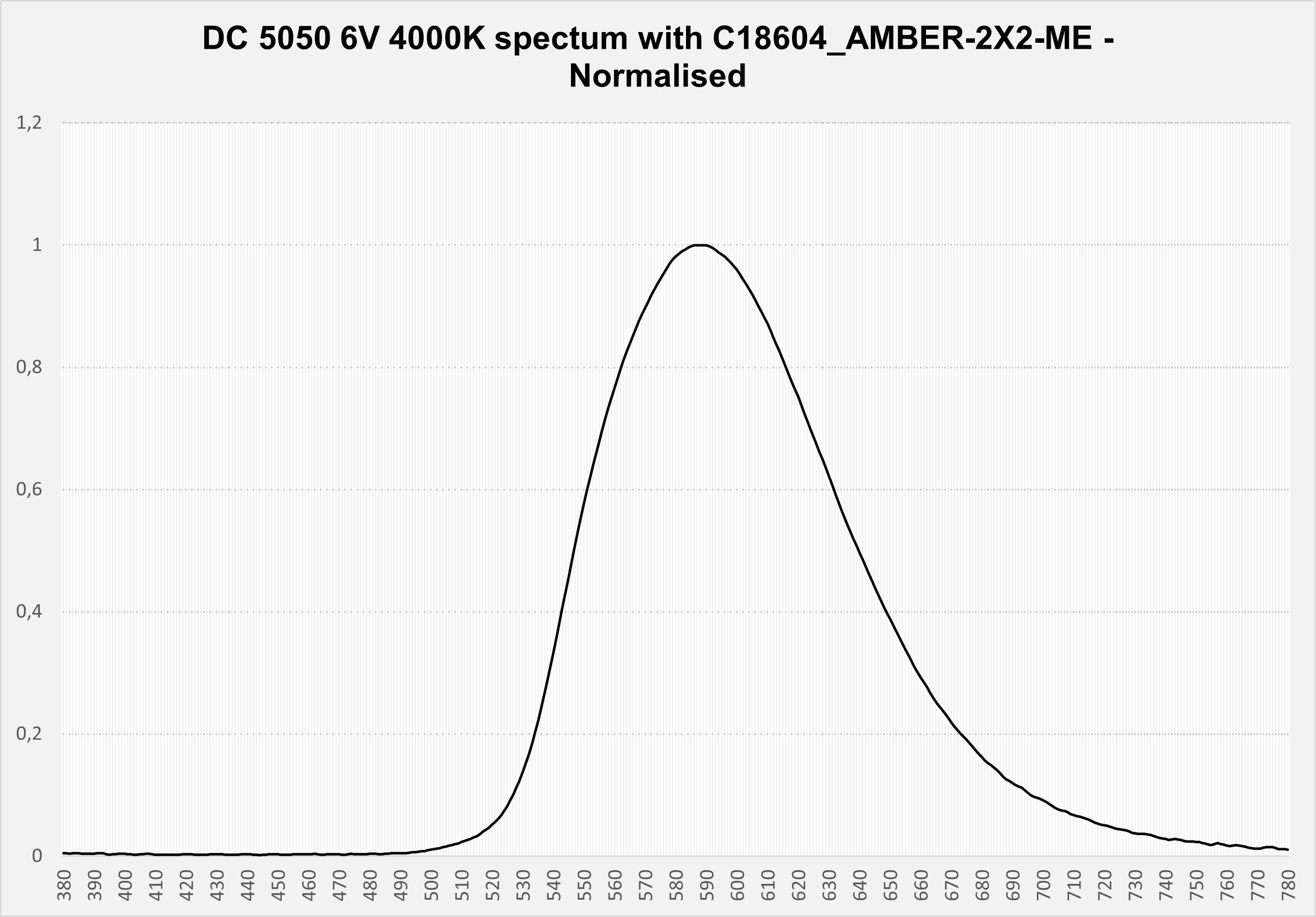

LED:
SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity:
0.443 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.4%
CCT (LED/with lens)*:
4000 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
