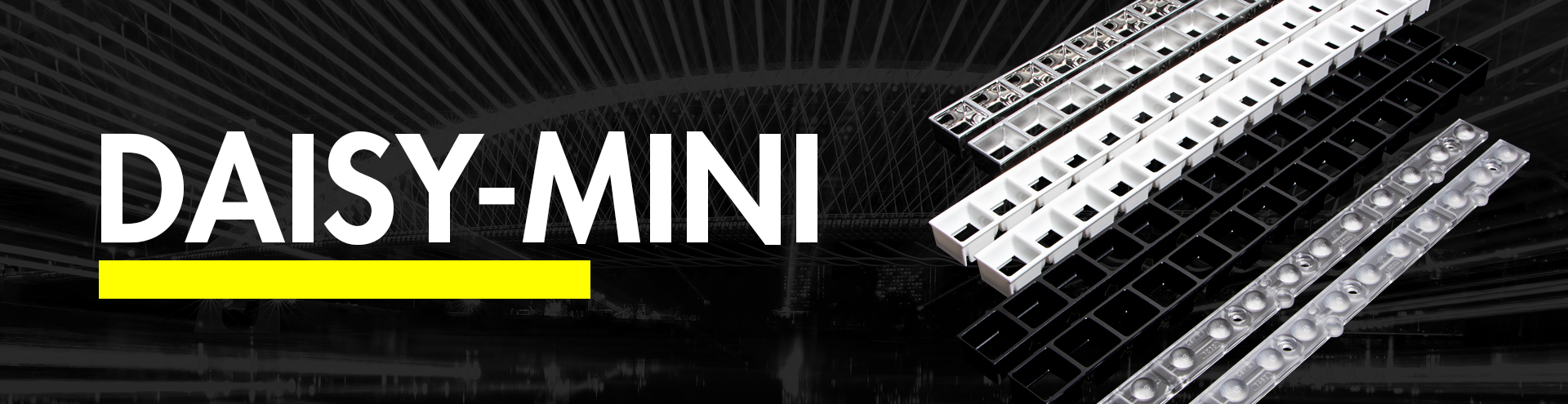

Meet DAISY-MINI – the smallest LEDiL Dark Light optic in the world

Just 21 mm wide optic for compact, glare free luminaires

At just 21 mm wide DAISY-MINI is absolutely the smallest Dark Light optic in the world for retail, office and hospitality lighting. In line with the trend of miniaturization, DAISY-MINI is half the size of its incredibly popular big sister.

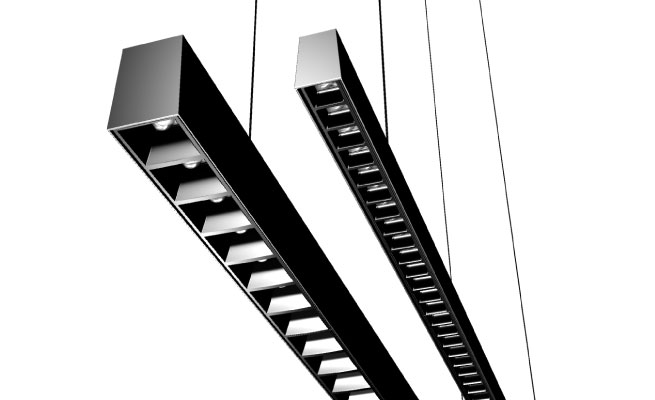

Luminaires with DAISY and DAISY-MINI Dark Light optic Luminaires with DAISY and DAISY-MINI
This new member of the DAISY family enables the creation of compact glare free UGR <19 linear or track luminaires. DAISY-MINI has three beams, including a narrow 30-degree beam ideal for accent lighting. Available with black, white and metal shades in both gloss and matt finishes DAISY-MINI lenses come in clear or diffused versions and are tunable white enabled for human-centric lighting. DAISY-MINI is optimized for 2835 and compatible with up to 5630 size mid-power LED packages. The M beam can be used with one 2835 mid-power LED per optic while the W and WW beams can be used with two 2835 mid-power or one 5630 mid-power LED per optic.


Learn more about LEDiL Dark Light Concept

Gain more insight into the Dark Light Concept by clicking here. Sign up and you will receive access to our article.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.


EXAMPLES OF DAISY-MINI IN USE:

Linear luminaire example with DAISY-MINI Dark Light optic
