AMY-110 – for slim and elegant
wide diameter downlights

Beautiful illumination for hospitality environments



Spectacular illumination can make a big difference in hospitality environments. Harmonious lighting helps create a welcoming atmosphere as well as complement and set the ambiance in a space. Using wider luminaires means surfaces appear less bright and minimise nuisance glare, to ensure lighting is pleasant to the eye. AMY-110 enables slim, elegant lighting designs for downlights with a wide diameter, perfect for hospitality applications.


LEDiL_AMY_sideview

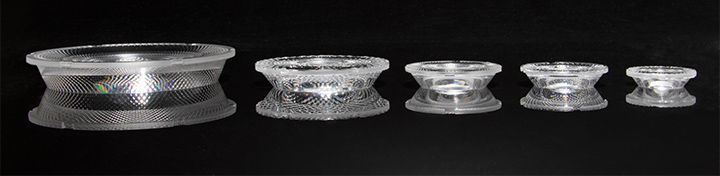

The highly popular AMY family now includes wide downlights with the addition of a 110 mm diameter subfamily. These lenses complement the existing portfolio of slim form factor AMY lenses 35, 45, 50 and 70 mm diameters. With a height of only 17.1 mm, AMY-110 lenses are ideal for downlight designs that need to be as flat as possible.

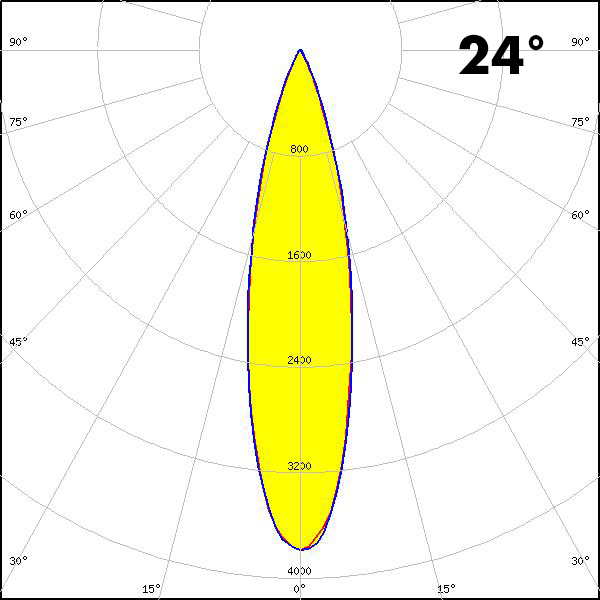

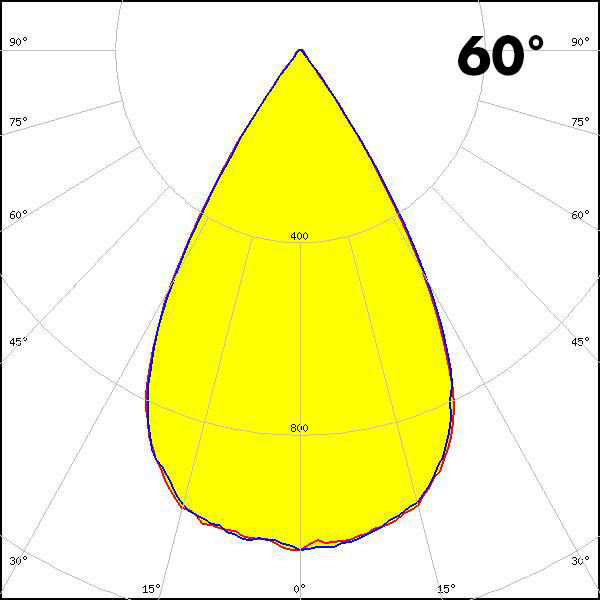

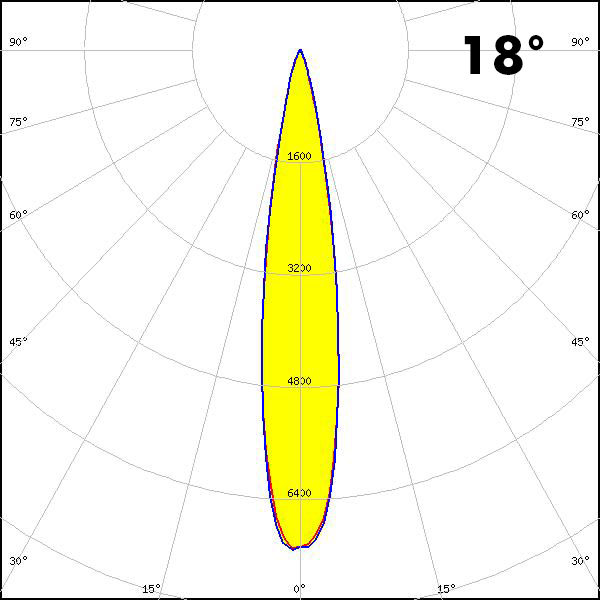

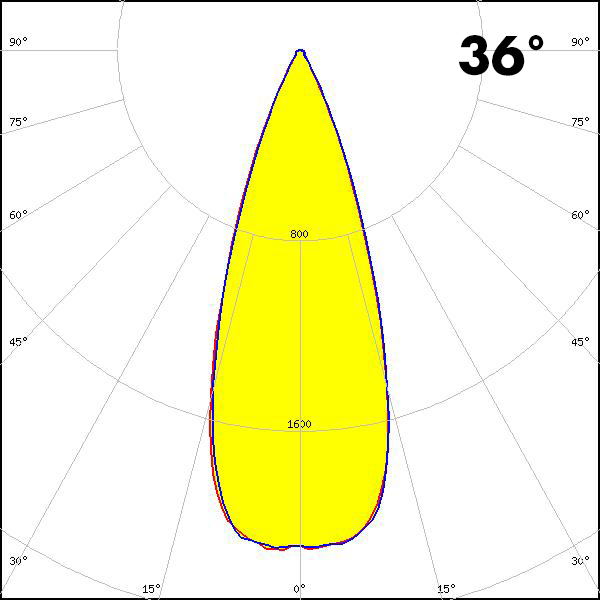

AMY-110 is available in four beautiful, clean beams with good cutoff and is perfect for tunable white applications. These COB lenses offer 18-, 24-, 36- and 60-degree beams in the same elegant AMY family look you are used to.


AMY-S-beamAMY-M-beamAMY-W-beamAMY-WW-beam

These lenses can easily be attached to the luminaire using the top flange or the two holders for HEKLA and BJB connectors.

AMY-110 is optimized for 14.5 mm LES size COBs and compatible up to 19 mm LES size COBs.
