APPLICATION EXAMPLE

Railway track lighting with STRADA-2X2-FR


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

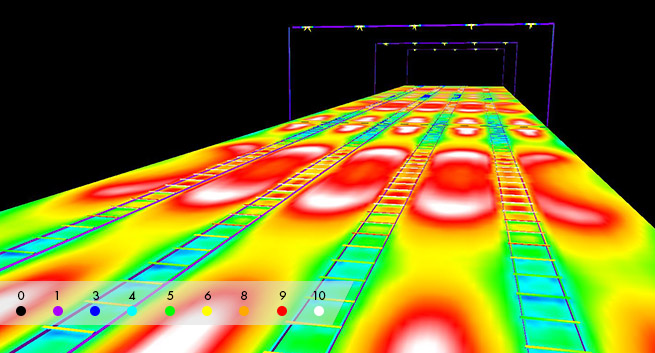

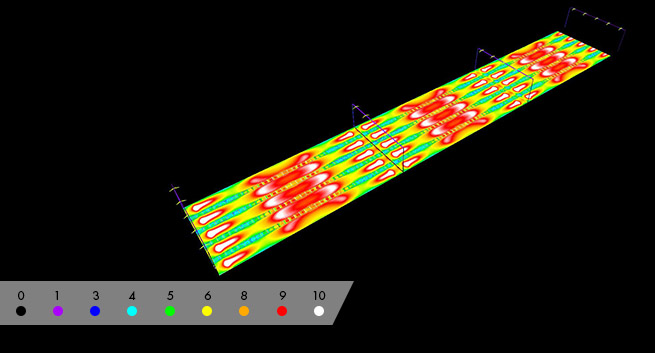

Results without trains.
STRADA-2X2-FR optics is especially designed for lighting railway tracks.
  • High illuminance uniformity with and without train
  • Minimal glare to train driver direction
  • Simulation according to Russian normative
  • SETUP:

    Application: Railway track lighting
    Optics: STRADA-2X2-FR
    Luminous flux (Luminaires): 3100 lm

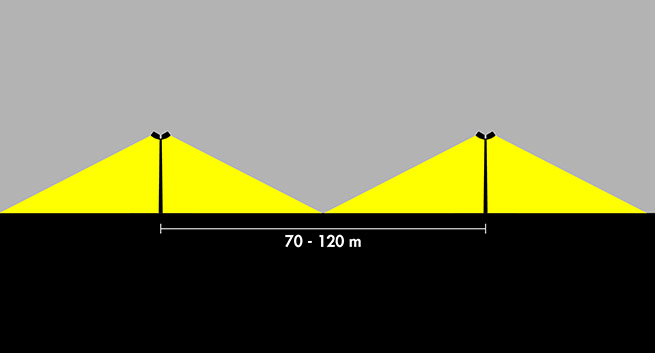

    Pole height: 12 m
    Pole distance: 70 m
    Boom angle: 67°

    RESULTS:

    Min: 5 lx
    Uo: 0.6
    GO TO PRODUCT CARDS
    C16378_STRADA-2X2-FR
