APPLICATION EXAMPLE
Pedestrian crossings with STRADA-2X2-PX and -PXL
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
- Special optics designed for illuminating pedestrian crossings, no need for directing poles separately
- Adequate illumination and contrast on a vertical plane, making it easier for drivers to notice crossing pedestrian over a longer distance
- PX for right and PXL for left side traffic
- Designed to meet official European pedestrian crossing requirements
- Highly uniform illumination on the crossing area

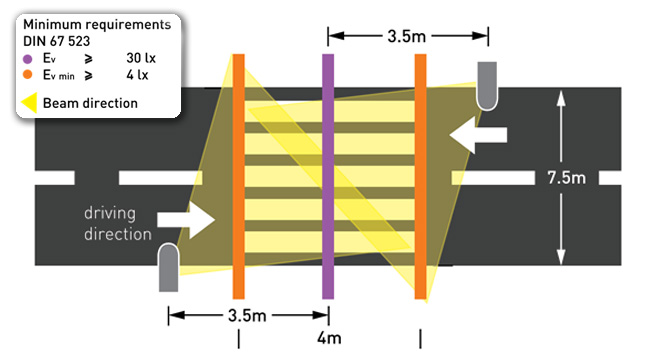

SETUP:
| Application: | Pedestrian crossing |
| Requirements: | DIN 67523 compliant illuminance levels on the pedestrian crossings |
| Optics: | STRADA-2X2-PX and -PXL |
| Luminous flux (luminaire): | 5170 lm |
| Boom length: | 0 m |
| Distance pole to roadway: | 0.55 m |
| Overhang: | -0.55 m |
| Road width: | 8 m |
| Installation height: | 6 m |

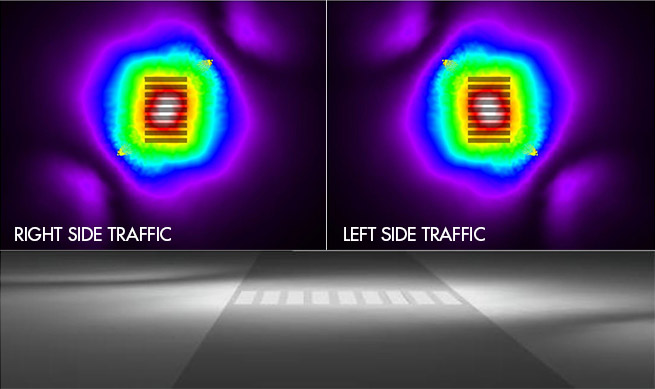

RESULTS:
| Ev center line: | 38 lx |
| Ev min: | 5 lx |
| Minimum requirements DIN 67 523: | |
| Ev: | > 30 lx |
| Ev min: | > 4 lx |
| C14116_STRADA-2X2-PX | ||
| C14896_STRADA-2X2-PXL |
