APPLICATION EXAMPLE

Parking lot lighting with STRADA-FT


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

With STRADA-FT it is possible to create truly modular luminaire design to be able to create efficient lighting solution for parking lots. When using different STRADA-FT arrangement it is possible to create efficient luminaires for edges and corners of parking lot as well as central luminaires while using exactly the same parts with different configurations.

SETUP:

Optics: STRADA-FT
Pole height: 6 m
Distance between luminaires: 25 m
Total luminous flux (LEDs): 24 000 lm

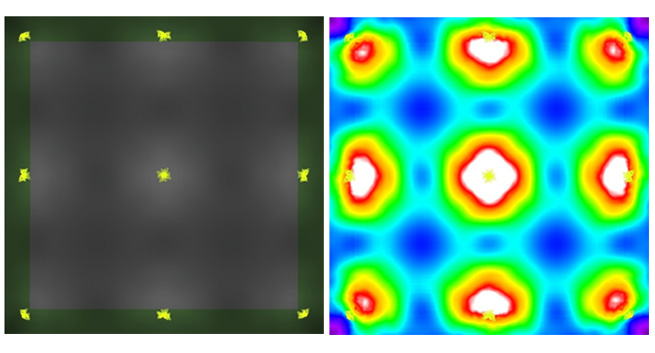

RESULTS:

Average illuminance: > 5 lx
Uo: ~0.45
GO TO PRODUCT CARDS
C12049_STRADA-FT
C13476_STRADA-FT
CA12050_STRADA-FT
CA13477_STRADA-FT
