APPLICATION EXAMPLE

Parking lot lighting with STRADA-2X2MX-8-VSM


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support



  • Symmetrical wide square beam (IESNA Type V Short)
  • Typical luminaire classifying IESNA “Semi Cutoff” or G1-G2 luminous intensity class (EN13201)

SETUP:

Application: Parking lot
Optics: STRADA-2X2MX-8-VSM
Luminous flux (LEDs): 1600 lm
Maintenance factor: 0.8
Installation height: 5 m
Distance between luminaires: 25 m

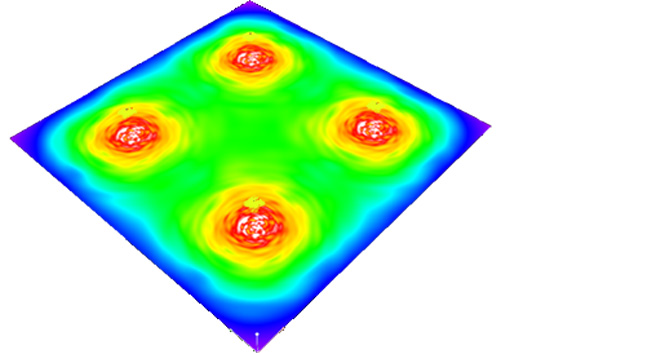

RESULTS:

Average: 20 lx
Min: 16 lx
Max: 55 lx
Uo: 0.79
GO TO PRODUCT CARDS
CS15763_STRADA-2X2MX-8-VSM
