APPLICATION EXAMPLE

Parking lot lighting with STELLA-T4


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

SETUP:

Application: Parking lot
Optics: STELLA-T4
LED: CXA2590
Luminous flux (LEDs): 10 000 lm
No. of poles: 4 pcs
No. of optics in pole: 4 pcs
Installation height: 20 m
Area size: 100 x 100 m

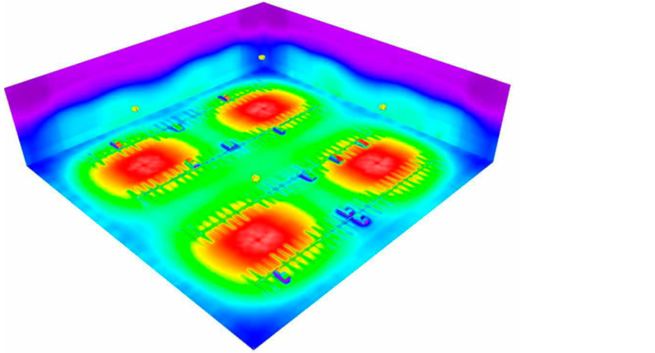

RESULTS:

Average: 12 lx
Min: 5.6 lx
Max: 21 lx
GO TO PRODUCT CARDS
FN14645_STELLA-T4
FN15187_STELLA-T4
