APPLICATION EXAMPLE
Wall-washing with OLGA-WAS
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

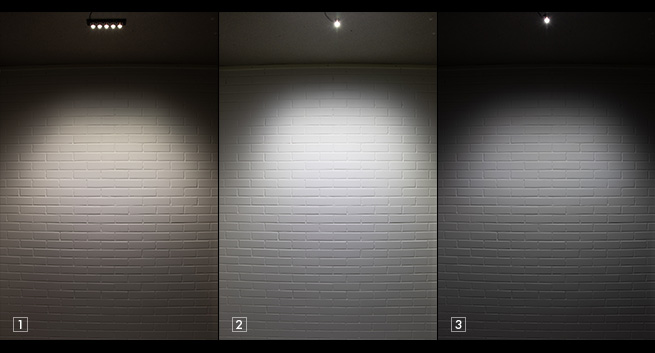

SETUP:
| 1 | |
| LED: | XP-G2 |
| LED package size: | 3535 |
| LED type: | High-power |
| Number of optics: | 5 pcs |
| 2 | |
| LED: | XHP50 |
| LED package size: | 5050 |
| LED type: | High-power |
| Number of optics: | 1 pcs |
| 3 | |
| LED: | Duris 8 |
| LED package size: | 5050 |
| LED type: | Mid-power |
| Number of optics: | 1 pcs |
| 4 (Simulation) | |
| LED: | XP-E2 |
| LED package size: | 3535 |
| LED type: | High-power |
| Number of optics in one luminaire: | 2 pcs |
| Output/luminaire: | 300 lm |
| Installation ratio: | 1:3 |
| Luminaire spacing: | 0.9 m |
| C16307_OLGA-WAS | ||
| CA16308_OLGA-WAS |
