LUMINAIRE EXAMPLE

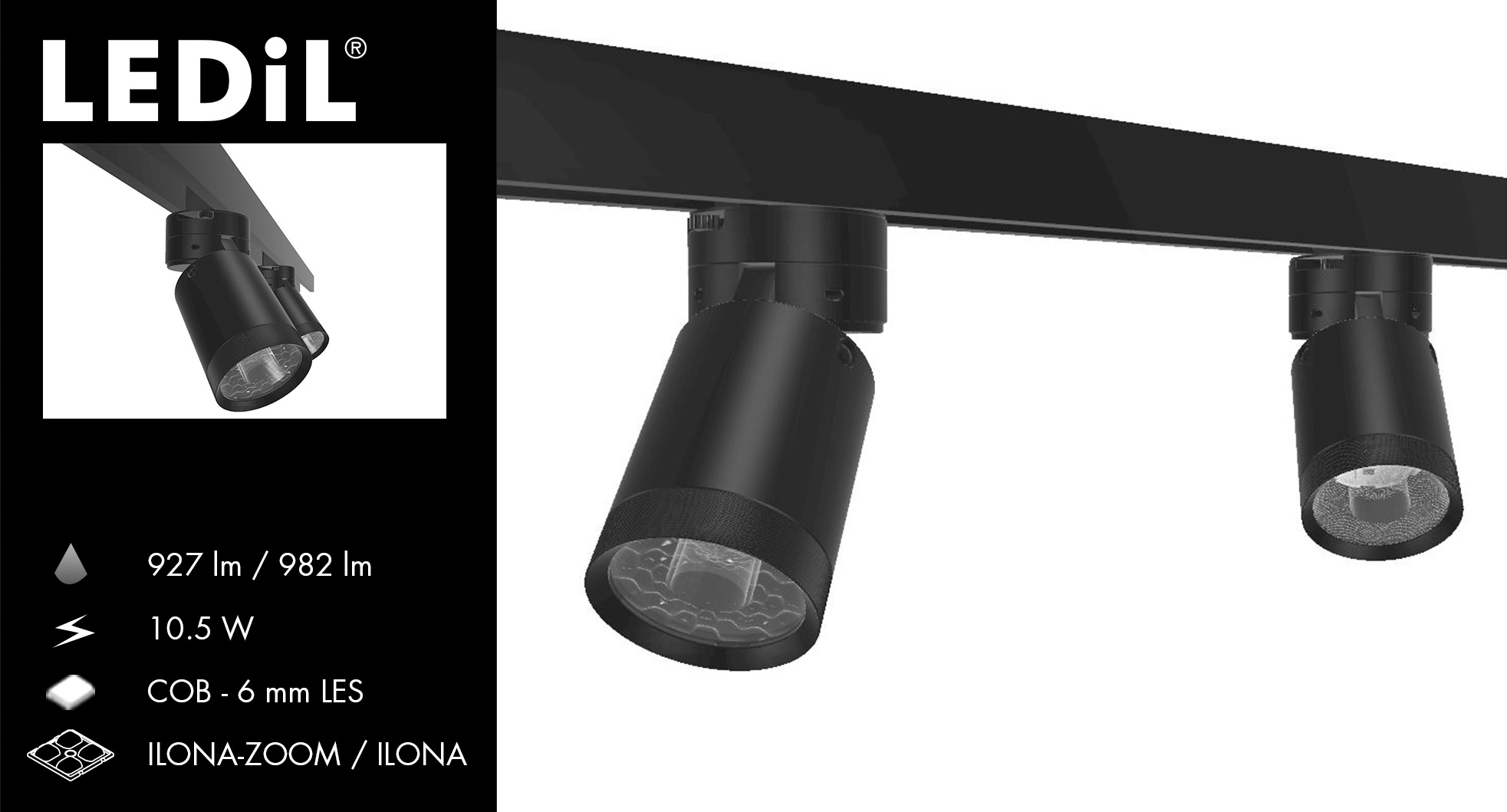

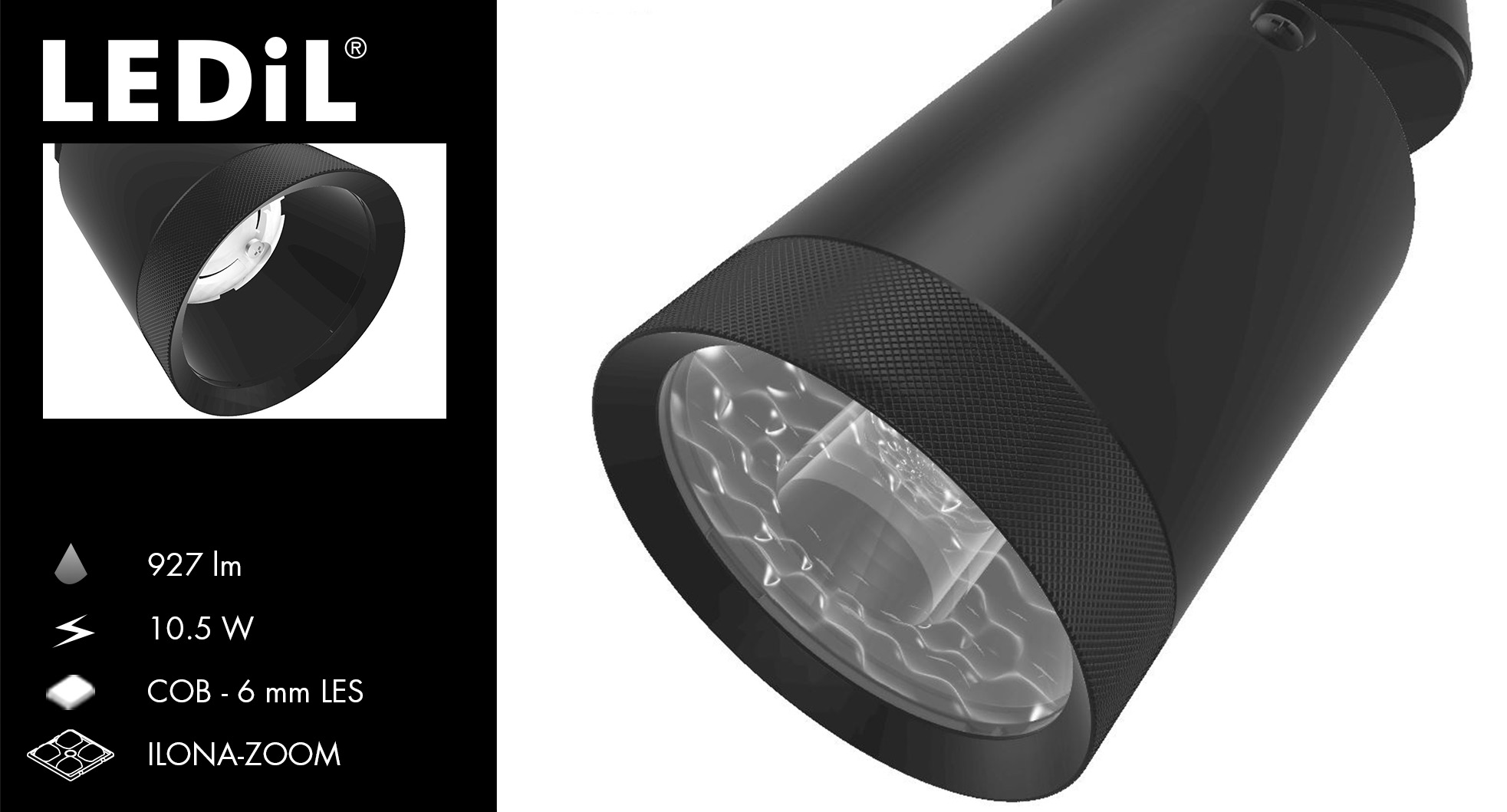

Track lights with ILONA-ZOOM & ILONA
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SPECIFICATIONS
| Optics: | ILONA-ZOOM | ILONA-SS, RS, M, W |
| Optics size: | Ø50 mm | Ø50 mm |
| Luminaire size: | Ø60 mm | Ø60 mm |
| COB Package size: | 13.5 x 13.5 mm | 13.5 x 13.5 mm |
| COB LES size: | 6 mm | 6 mm |
| Connector: | HEKLA-SOCKET-C | HEKLA-SOCKET-C |
| Luminous flux (Luminaire): | 927 lm | 982 lm |
| Power (Luminaire): | 10.5 W | 10.5 W |
| FWHM: | 13.5° – 48° | 10° / 14° / 25° / 35° |
| Efficiency: | ~85 % | ~90 % |
| LED lm/W: | 104 | 104 |
| Luminaire lm/W: | 88 | 94 |
