APPLICATION EXAMPLE
Supermarket lighting with CLAUDIA
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Retail lighting |
| LED: | Mid-power 3030 LED |

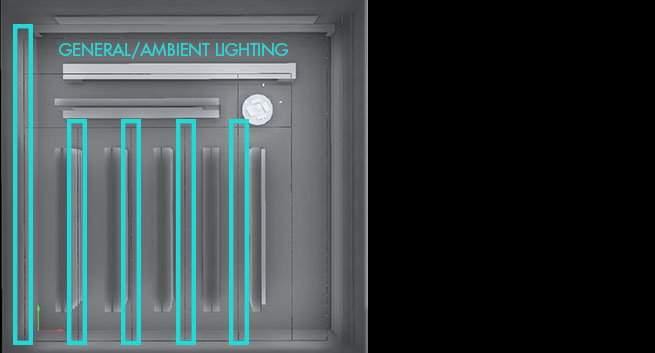

| General/Ambient lighting: | |
| Optics: | CLAUDIA-60 |
| Luminous flux (Luminaire): | 2500 lm/m |
| Power (Luminaire): | 12.5 W/m |
| Luminaire efficiency: | 199 lm/W (Incl. optics 94 % and driver 95 %) |

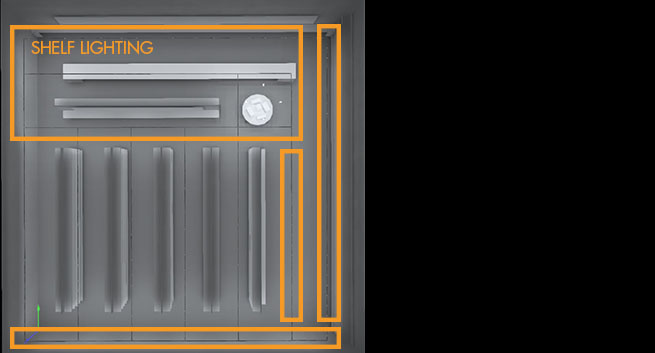

| Shelf lighting | |
| Optics: | CLAUDIA-90 |
| Luminous flux (Luminaire): | 1700 lm/W |
| Power (Luminaire): | 9 W/m |
| Luminaire efficiency: | 199 lm/W (Incl. optics 94 % and driver 95 %) |

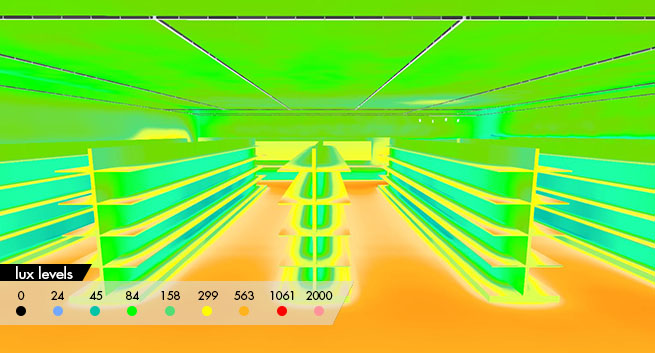

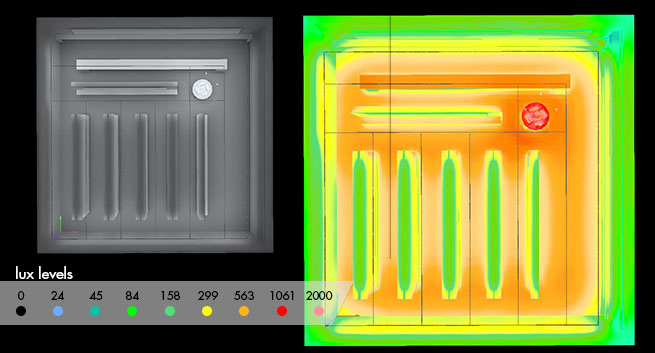

RESULTS:

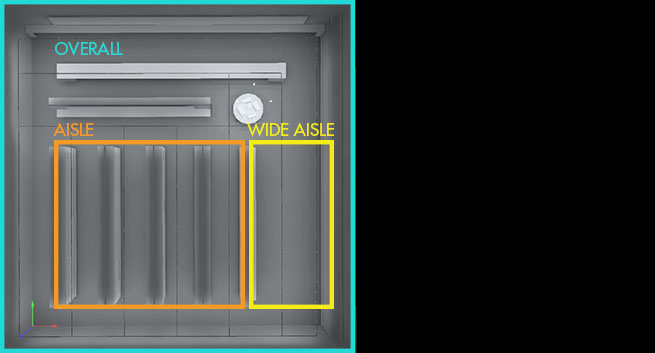

| Aisle | |
| Average (Floor): | 470 lx |
| Average (Shelves): | 200 lx |
| Uo (Floor): | 0.91 |
| Uo (Shelves): | 0.78 |
| UGR (Max): | 18 |
| Wide aisle | |
| Average (Floor): | 530 lx |
| Average (Shelves): | 230 lx |
| Uo (Floor): | 0.72 |
| Uo (Shelves): | 0.92 |
| UGR (Max): | 19 |
| Overall (Without furniture) | |
| Average (Floor): | 610 lx |
| Uo (Floor): | 0.59 |
| UGR (Max): | 20 |
| C16664_CLAUDIA-60 | ||
| C16613_CLAUDIA-90 |
