APPLICATION EXAMPLE

Street lighting with STRADA-IP-2X6-T2


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

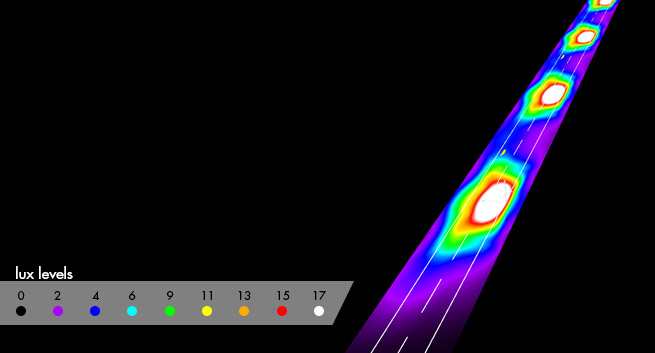

SETUP:

Optics: STRADA-IP-2X6-T2
Road width: 7 m
Number of lanes: 2
Arrangement: Single row, bottom
Luminous flux (Luminaire): 6 957 lm
Power (Luminaire): 51 W
Pole distance: 58 m
Mounting height: 10 m

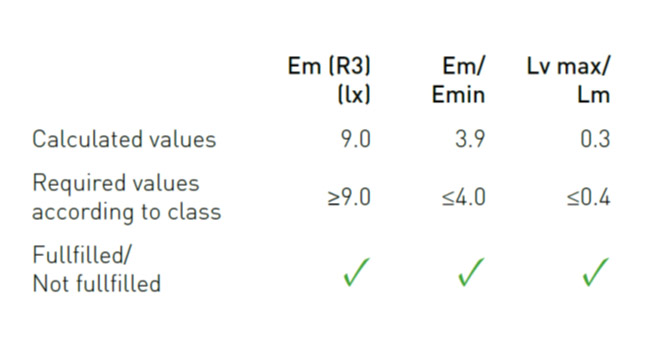

RESULTS:

Maximum luminous intensities
at 70°: 998 cd/klm
at 80°: 141 cd/klm
at 90°: 25 cd/klm
GO TO PRODUCT CARDS
CS14055_STRADA-IP-2X6-T2
