APPLICATION EXAMPLE

Road lighting with STRADA-2X2-5050-T2-C


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

SETUP:

Application: Street lighting
Optics: STRADA-2X2-5050-T2-C
LED: Nichia NFMW48xA
Road width: 10.5 m
Number of lanes: 3
Sidewalk width: 1.5 m (each side)
Arrangement: Single row, bottom
Maintenance factor: 0.8
Luminous flux (Luminaire): 6132 lm
Pole distance: 35 m
Mounting height: 9 m
Overhang: 2.4 m
Boom angle:
Boom lenght: 0 m

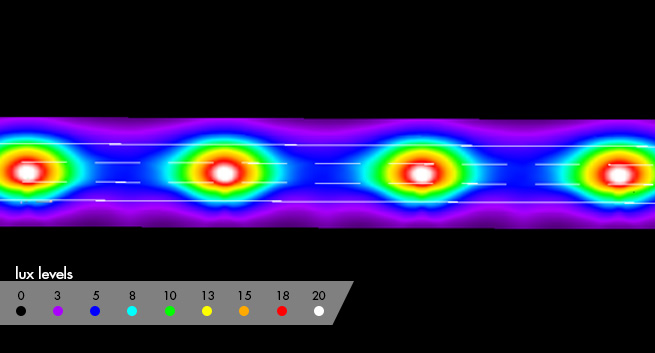

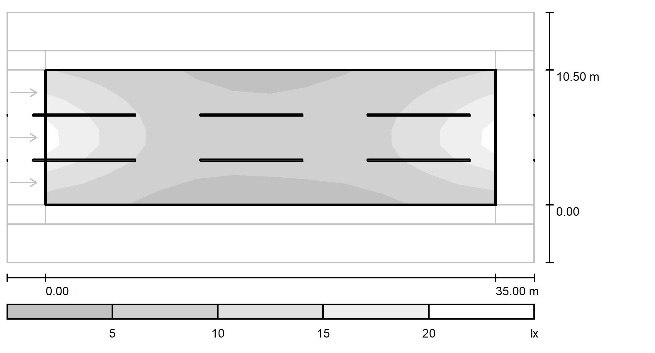

RESULTS:

Average: 8.6 lx
Min: 3.6 lx
Max: 20 lx
Uo: 0.42
GO TO PRODUCT CARDS
C16637_STRADA-2X2-5050-T2-C
