Application example

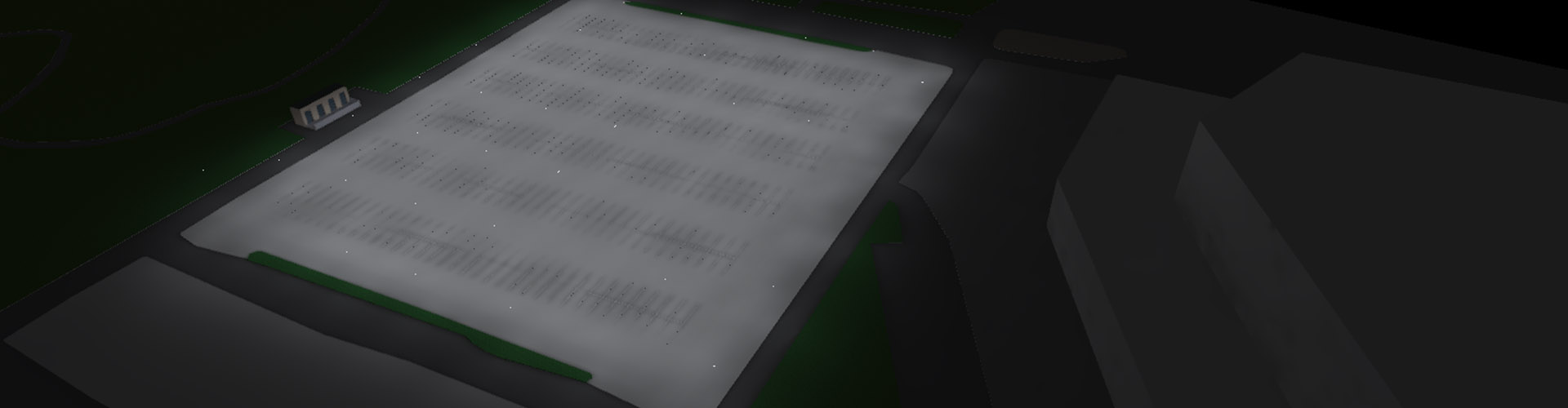

Parking lot lighting with STRADELLA-IP-64-T4-B


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

Setup:

Application:Parking lot lighting
Parking lot size:100 x 115 m
Number of luminaires:93 pcs
Luminaire spacing:16 x 17 m
Installation height:8 m

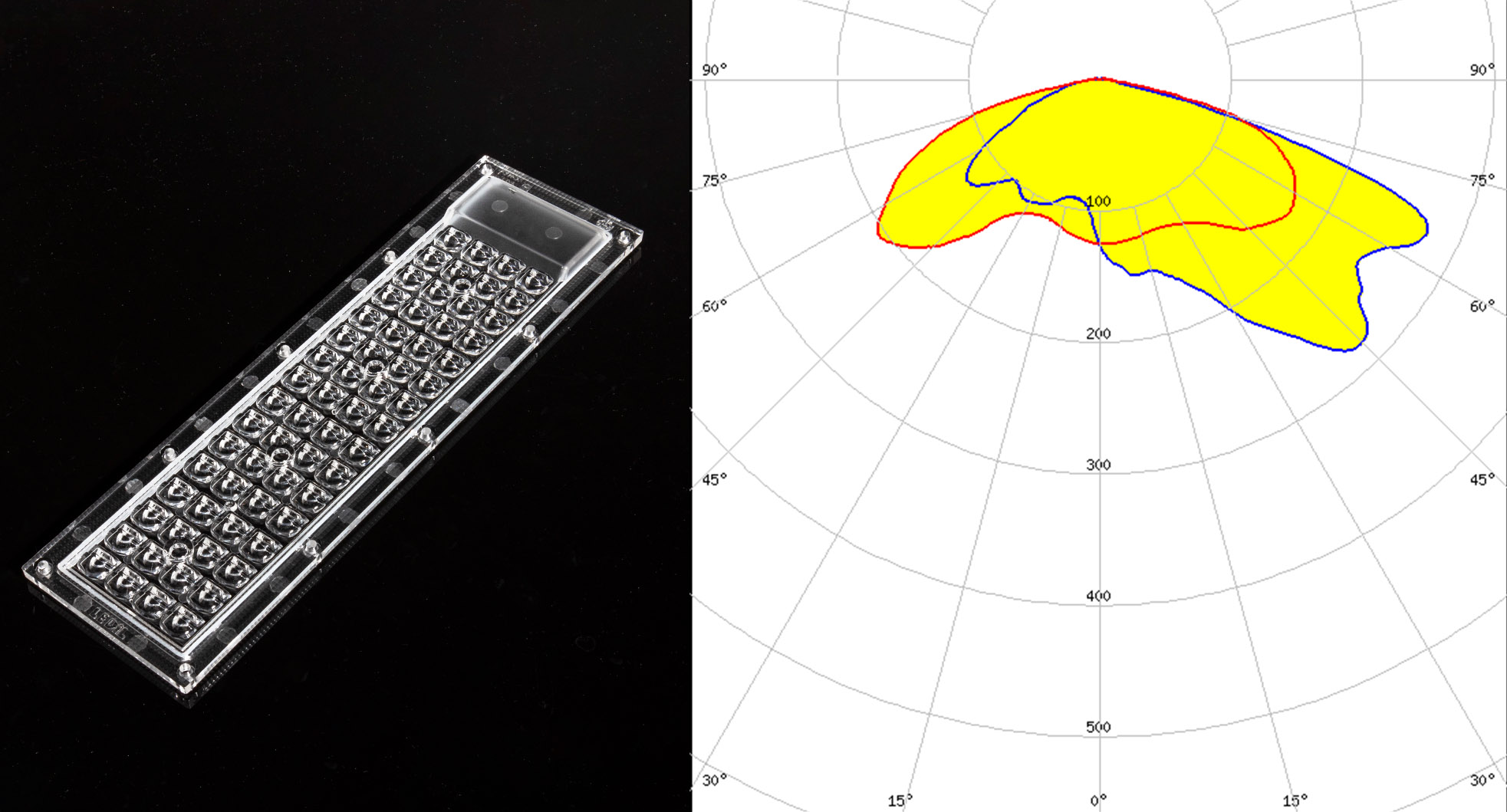

Optics:STRADELLA-IP-64-T4-B
Luminaire luminous flux:3800 lm
Luminaire power:22.5 W
Luminaire efficacy w/o driver:170 lm/W
Total power:2093 W
Total lumen output:355 000 lm

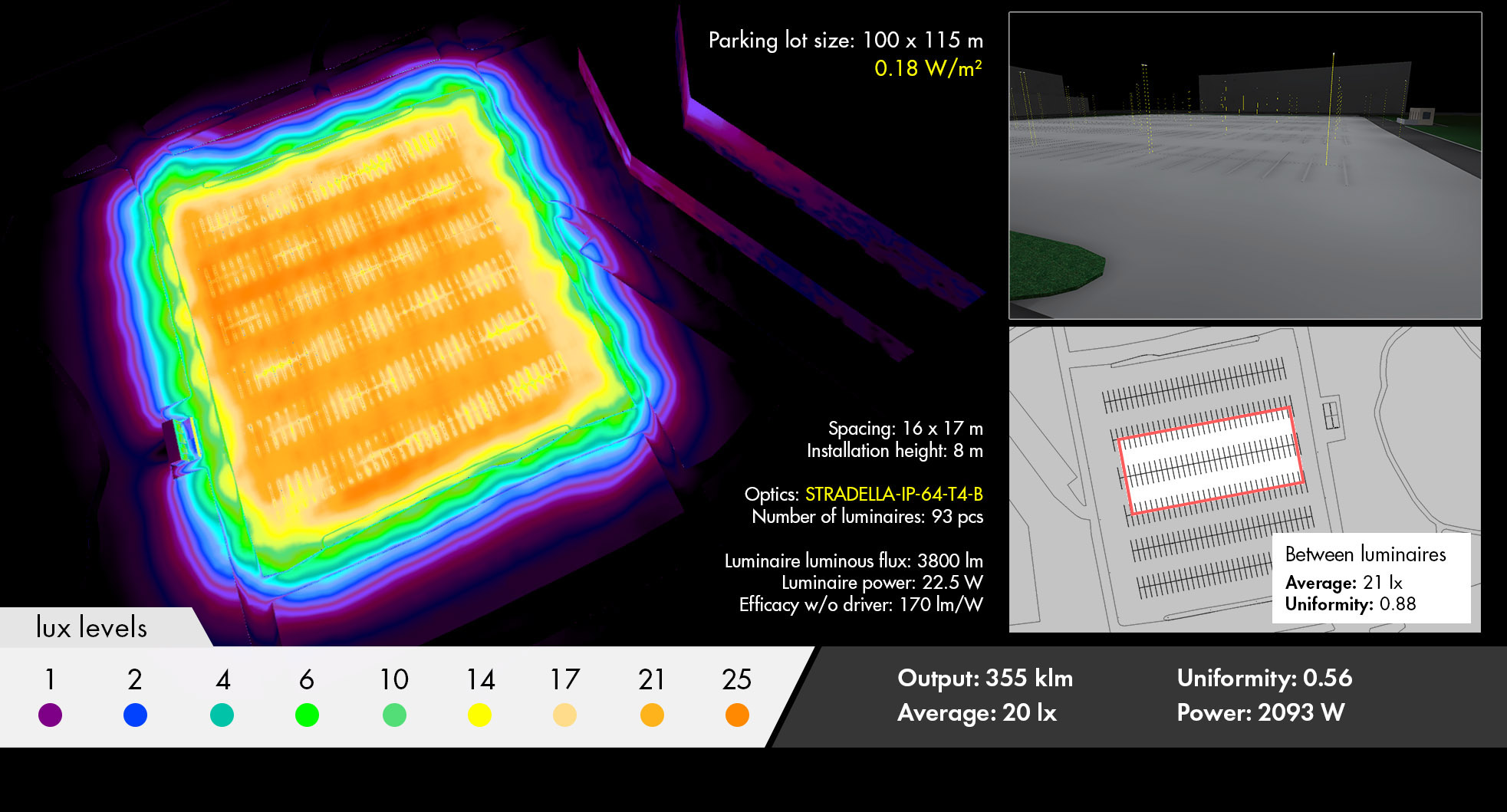

Results:

Power consumption:0.18 W/m2
Between luminaires
Average:21 lx
Uniformity:0.88
Whole area
Average:20 lx
Uniformity:0.56

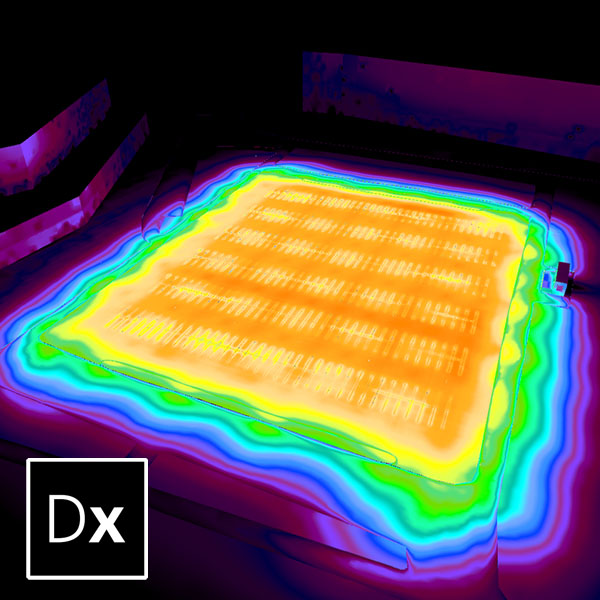

Download the simulation for STRADELLA-IP-64-T4-B
