APPLICATION EXAMPLE

Multi-purpose indoor sports facility lighting

Download the DIAlux files by filling the form at the end of this page.


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

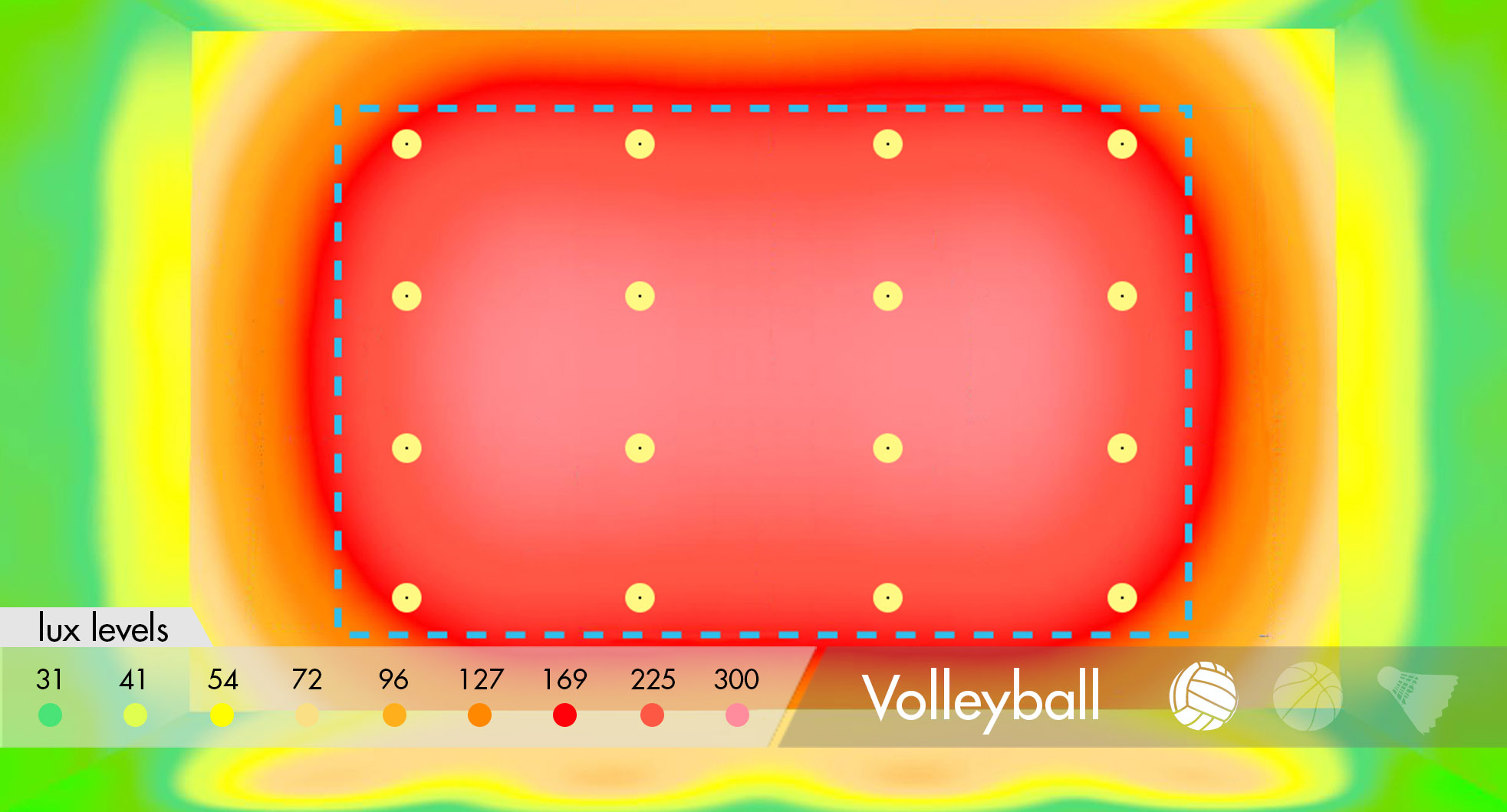

Lighting scene #1 - Volleyball

One multi-purpose facility and lighting installation with three different lighting scenes to meet requirements for different sporting events.

SETUP

Number of luminaires with SPORT-2X2-S458 pcs
Number of luminaires with DAISY-7X1-W16 pcs
Mounting height:10 m
Room size:19 x 32 m
Total load*:1344 - 1585 W
Power consumption*:2.2 - 2.6 W/m2
*Based on individual lighting scenes
Field resultsVolleyballBasketballBadminton
E Average:233 lx242 lx316 - 317 lx
Uo:0.660.690.73


Vertical illuminance levels on netVolleyballBadminton
E Average:56 lx62 lx
Uo:0.370.42
