APPLICATION EXAMPLE

Linear luminaire with LINNEA-GC2


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

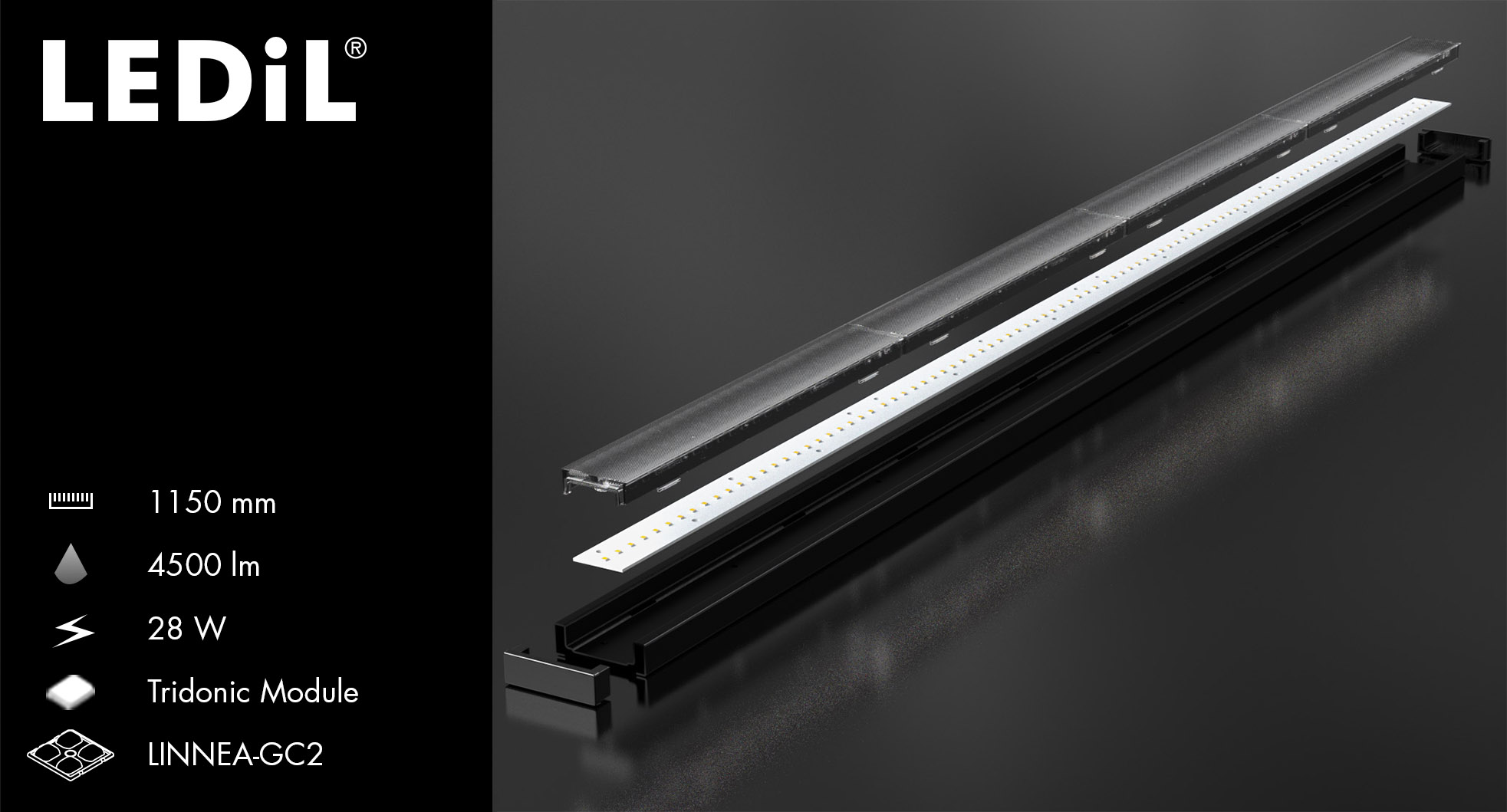

Linear luminaire with LINNEA-GC2

Linear luminaire with LINNEA-GC2

Luminaire length:1150 mm (4 lenses)
Optics:LINNEA-GC2
PCB:LLE_24x280mm Tridonic PCB
Number of LEDs:96 pcs (24 pcs/lens)
Output:4500 lm (after optic)
Luminaire power:27.7 W
System efficacy:180 lm/W
