LUMINAIRE EXAMPLE

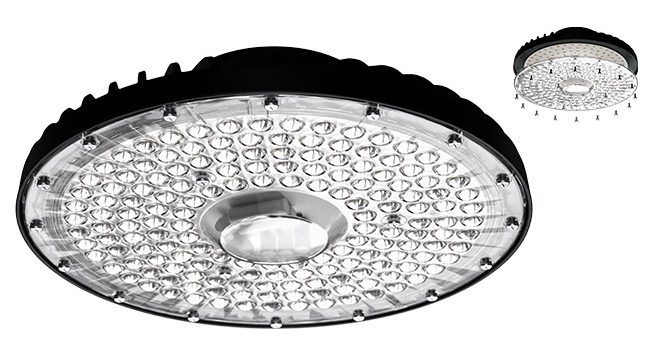

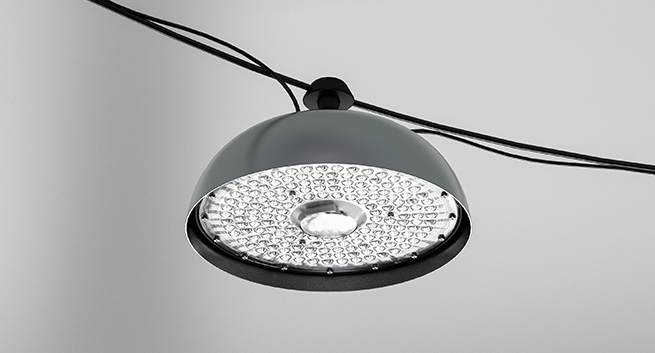

Highbay luminaire with VICTORIA


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

VICTORIA

  • Ø300 mm power house for industrial lighting
  • Consists of 160 lenses with LEDiL patented RZ surface
  • Use with two mid power LEDs or one 5050 size LED per lens and get up to 40 000 lumen output
  • Can be used with a silicone seal for ingress protection

Find all VICTORIA optics.
Find all our optics for industrial highbay lighting

SETUP:

Optics: VICTORIA
LED: 2835 package x 160
Output: ~26 000 lm
Power: 160 W

GO TO PRODUCT CARDS
VICTORIA
