Application example

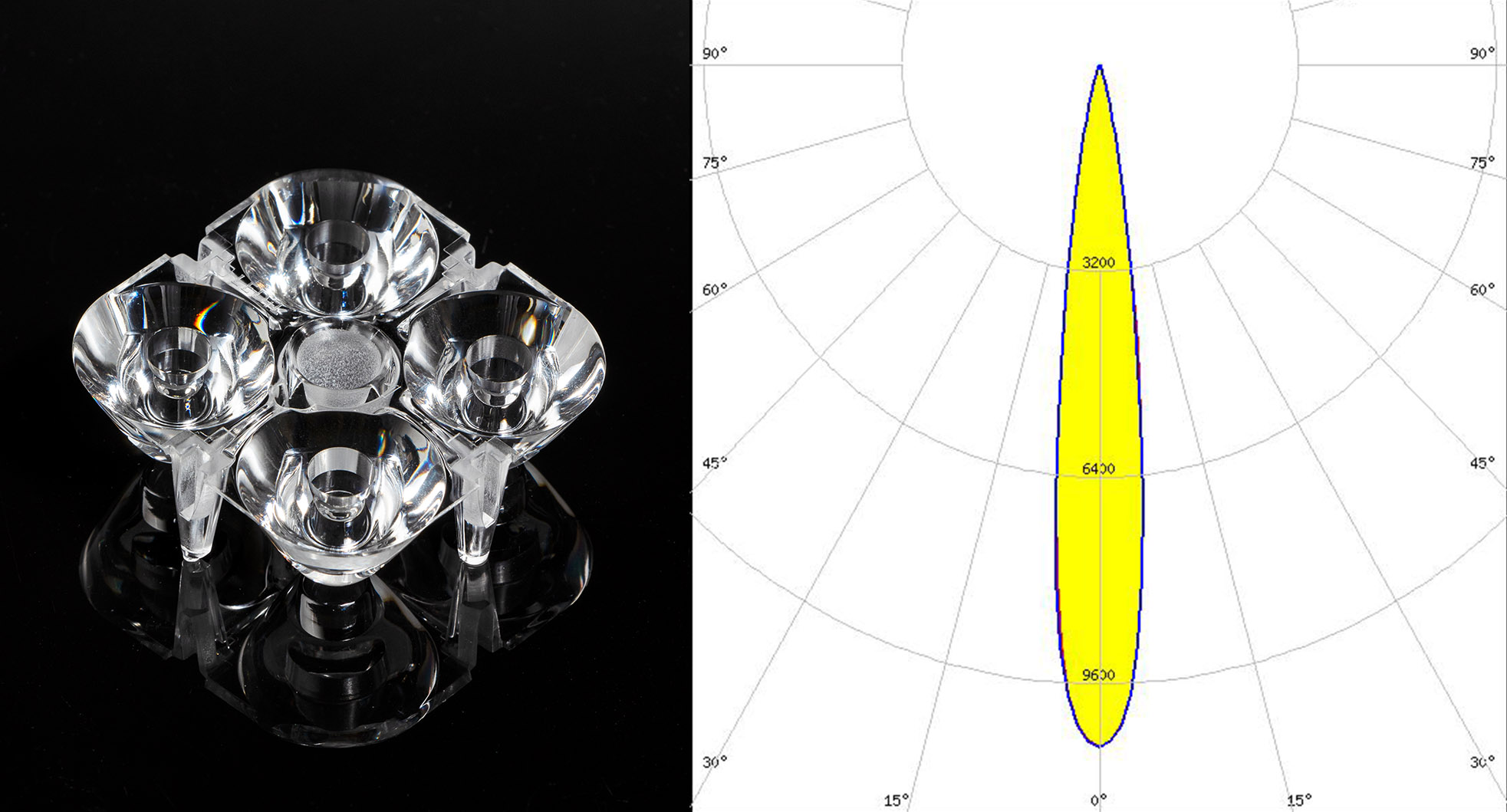

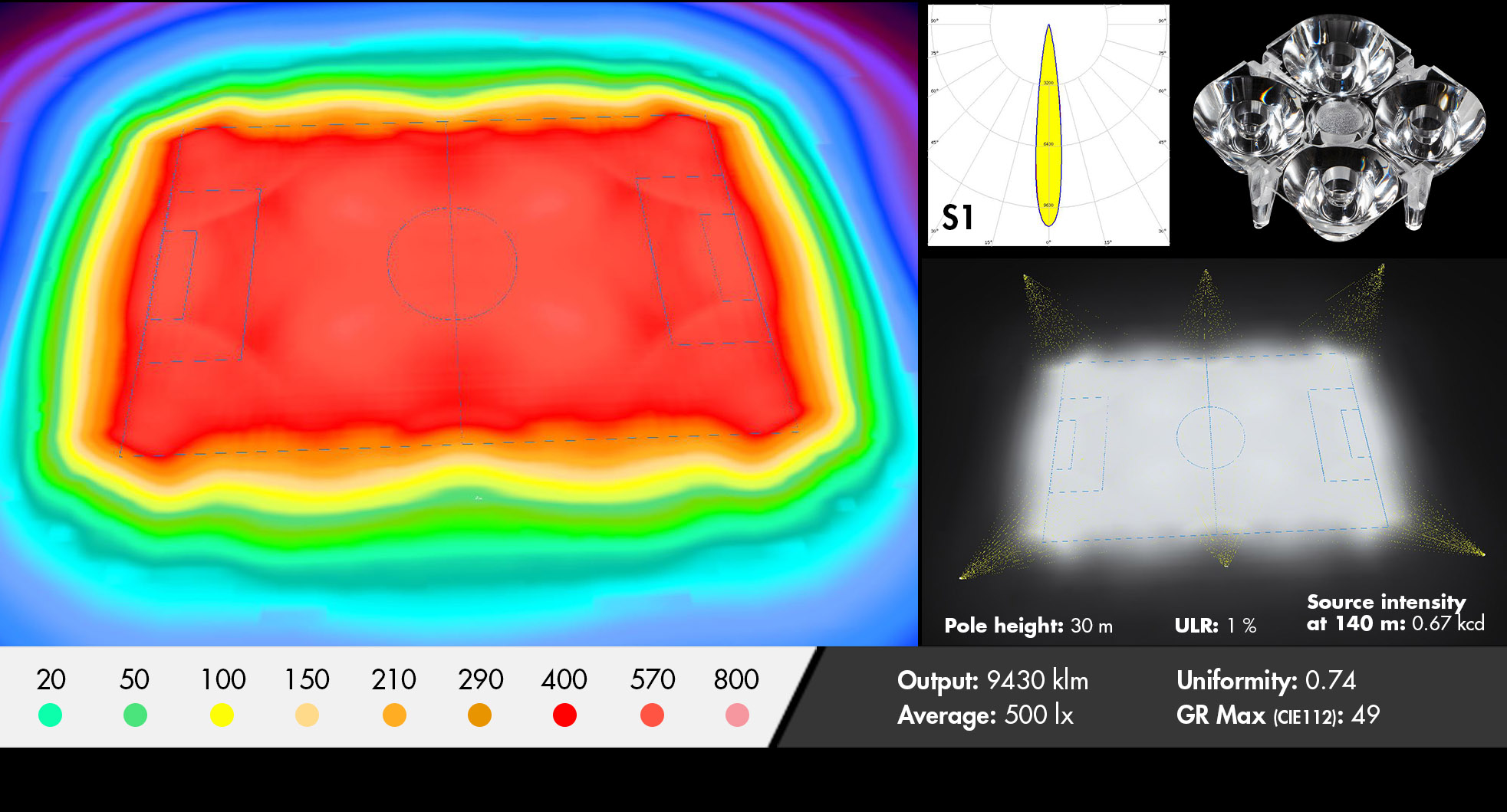

Football field lighting with SPORT-2X2-S1.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Sports lighting |
| Optics: | SPORT-2X2-S1 |
| Efficiency with protective glass: | 87 % |
| Number of poles: | 6 pcs |
| Mounting height: | 30 m |
| Luminous flux (total): | 9430 klm |
| Power (total): | 74 234 W |
| Led outputs | |
| Single LED: | 1200 lm |
| Corner pole: | 1906 klm (1588 LEDs) |
| Middle pole: | 1570 klm (1308 LEDs) |
| Number of optics: | |
| Corner pole: | 397 pcs |
| Middle pole: | 327 pcs |
| Total: | 2242 pcs |

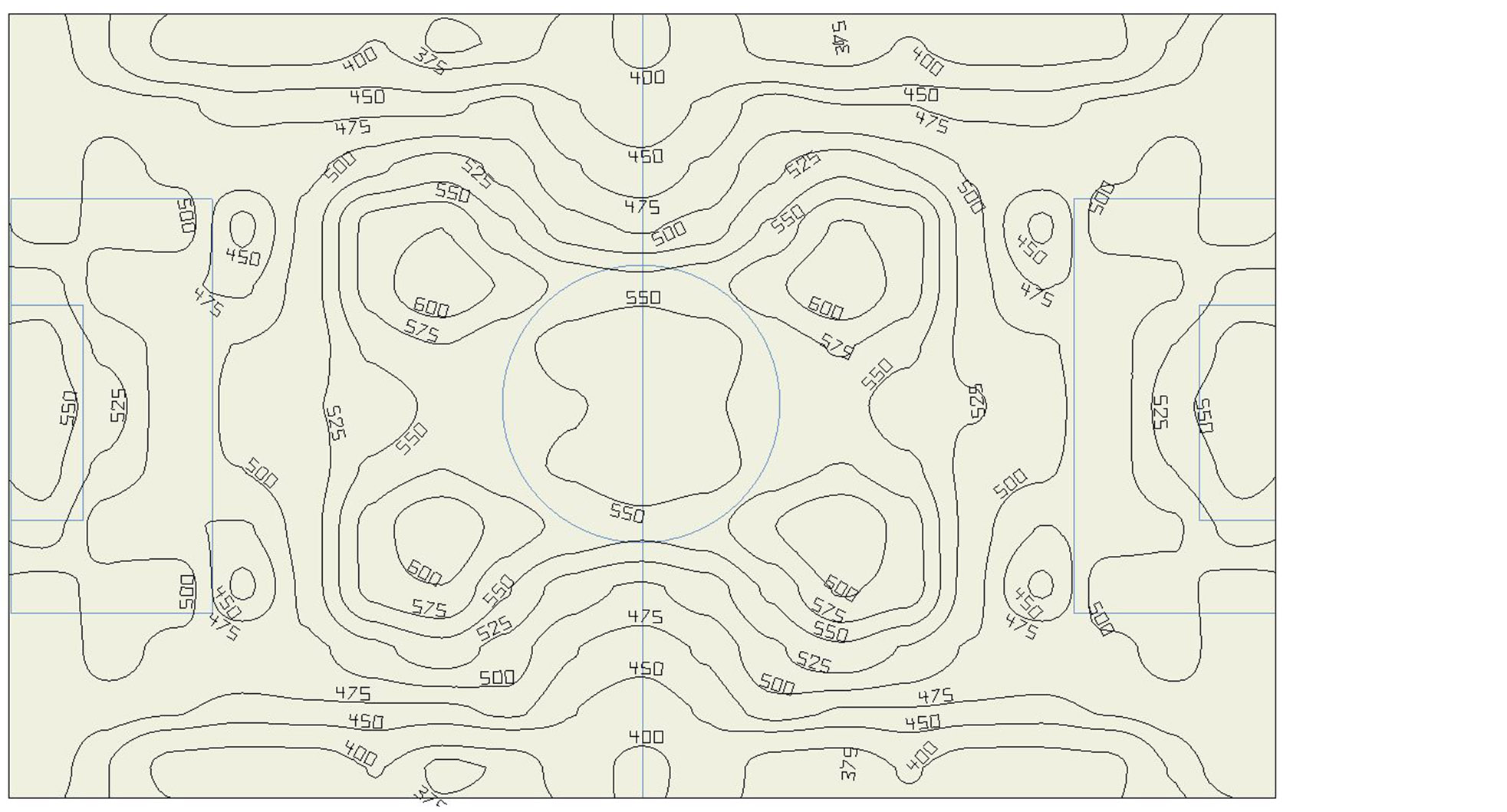

RESULTS:
| Average: | 500 lx |
| Min: | 370 lx |
| Max: | 628 lx |
| Min/Average: | 0.74 |
| Upward light ratio (ULR): | 1 % |
| GR Max (CIE112): | 49 |
| Source intensity at 140 m: | 0.67 kcd (eligible for post-curfew E2 (CIE 1917, IESNA 1999) |
