APPLICATION EXAMPLE
Factory floor lighting with VICTORIA-MINI-W.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

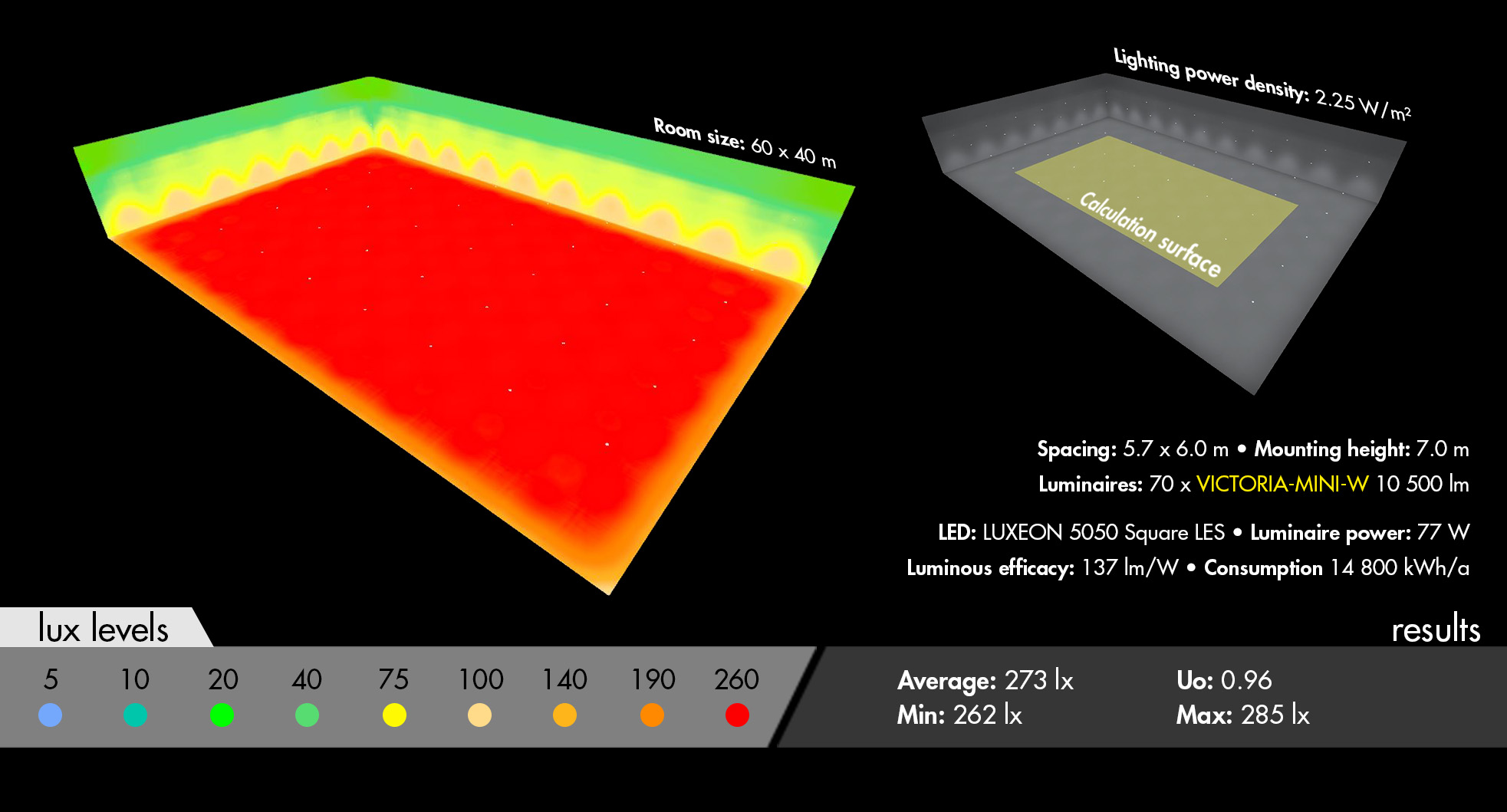

Setup and results on factory floor
SETUP:
| Application: | Industrial lighting |

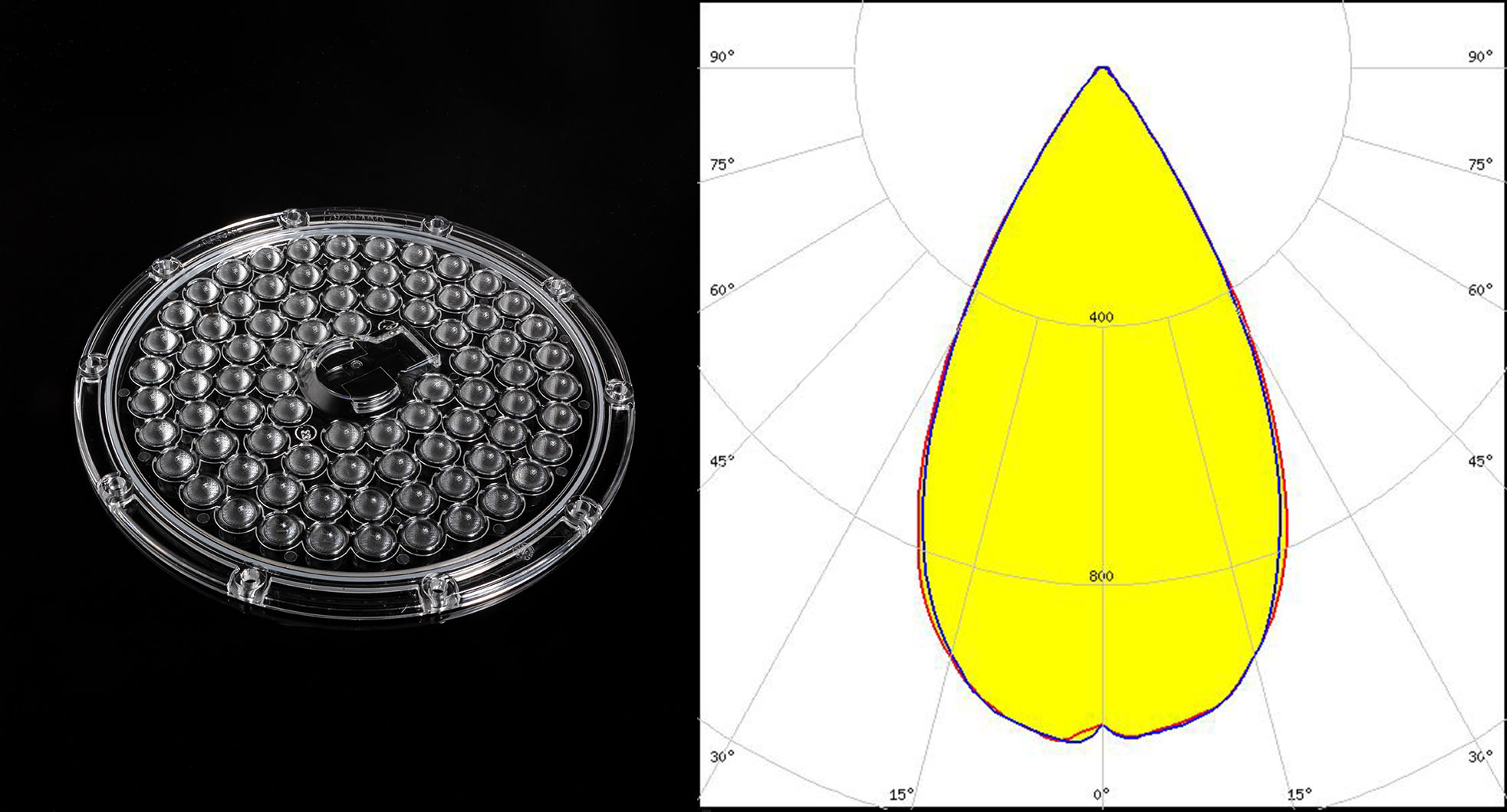

| Optics: | VICTORIA-MINI-W |
| LED: | Flat 5050 |
| Room size: | 60 x 40 m |
| Spacing: | 5.7 x 6.0 m |
| Mounting height: | 7.0 m |
| Number of luminaires: | 70 pcs |
| Luminaire power: | 77 W |
| Luminous flux (Luminaire): | 10 500 lm |
| Luminous efficacy: | 137 lm/W |
RESULTS:
| Average: | 273 lx |
| Min: | 262 lx |
| Max: | 285 lx |
| Uo: | 0.96 |
| Lighting power density: | 2.25 W/m2 |
| Consumption: | 14 800 kWh/a |
| C17975_VICTORIA-MINI-W | ||
| CS17977_VICTORIA-MINI-W | Ingress protected version. | |
| CS18055_VICTORIA-MINI-W-PC | Ingress protected version made from PC. |
Factory floor lighting with VICTORIA-MINI-W.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
