Application example

C3 street lighting with STRADA-IP-24-T3-M


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

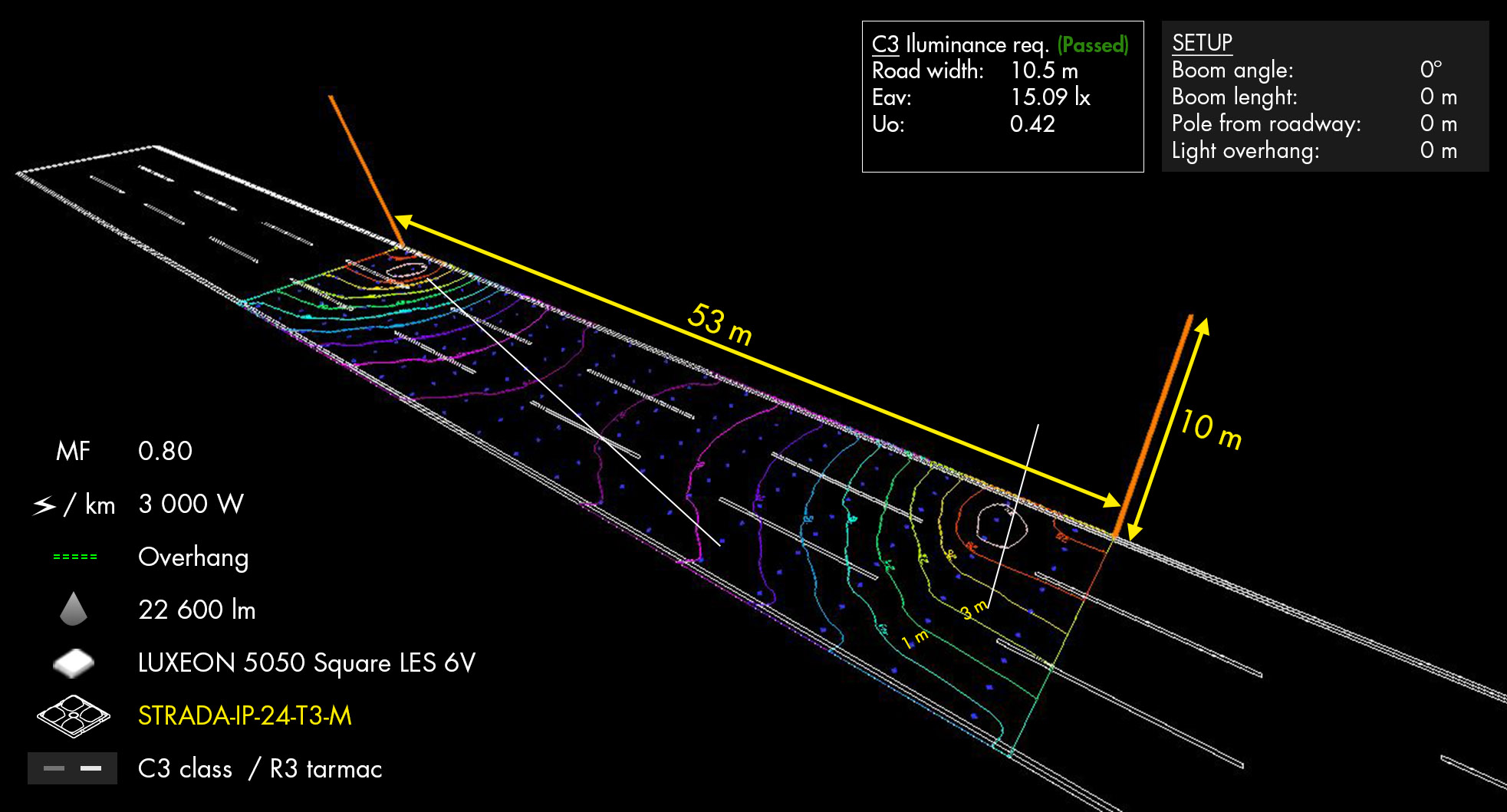

Setup:

Application:Street lighting
Roadway class:C3
Tarmac:R3

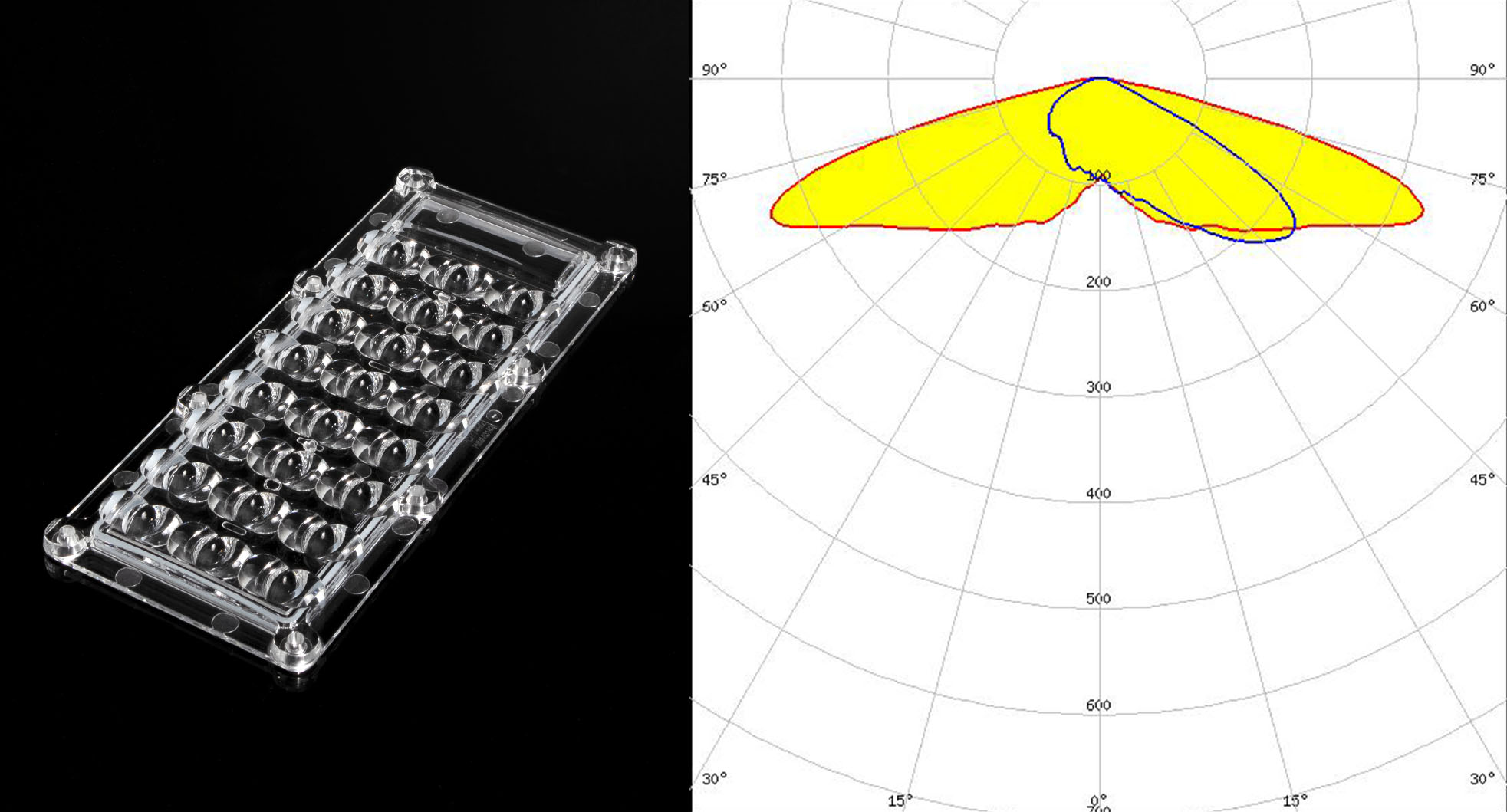

Optics:STRADA-IP-24-T3-M
LED:Luxeon 5050 Square LES 6V
Road width:10.5 m
Number of lanes:3 pcs
Pole distance:53 m
Mounting heigth:10 m
Overhang:0 m
Boom angle:
Boom length:0 m
Pole distance from roadway:0 m
Maintenance factor:0.8
Total lumen output/luminaire:22 600 lm
Power consumption/km:3000 W
Energy consumption/year:630 kWh

Results:

Eav:15.09 lx
Uo:0.42
C3 illuminance requirements:Passed

Download the simulation for STRADA-IP-24-T3-M
