APPLICATION EXAMPLE
Aisle lighting with LINNEA-GC2
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
LINNEA-GC2-30

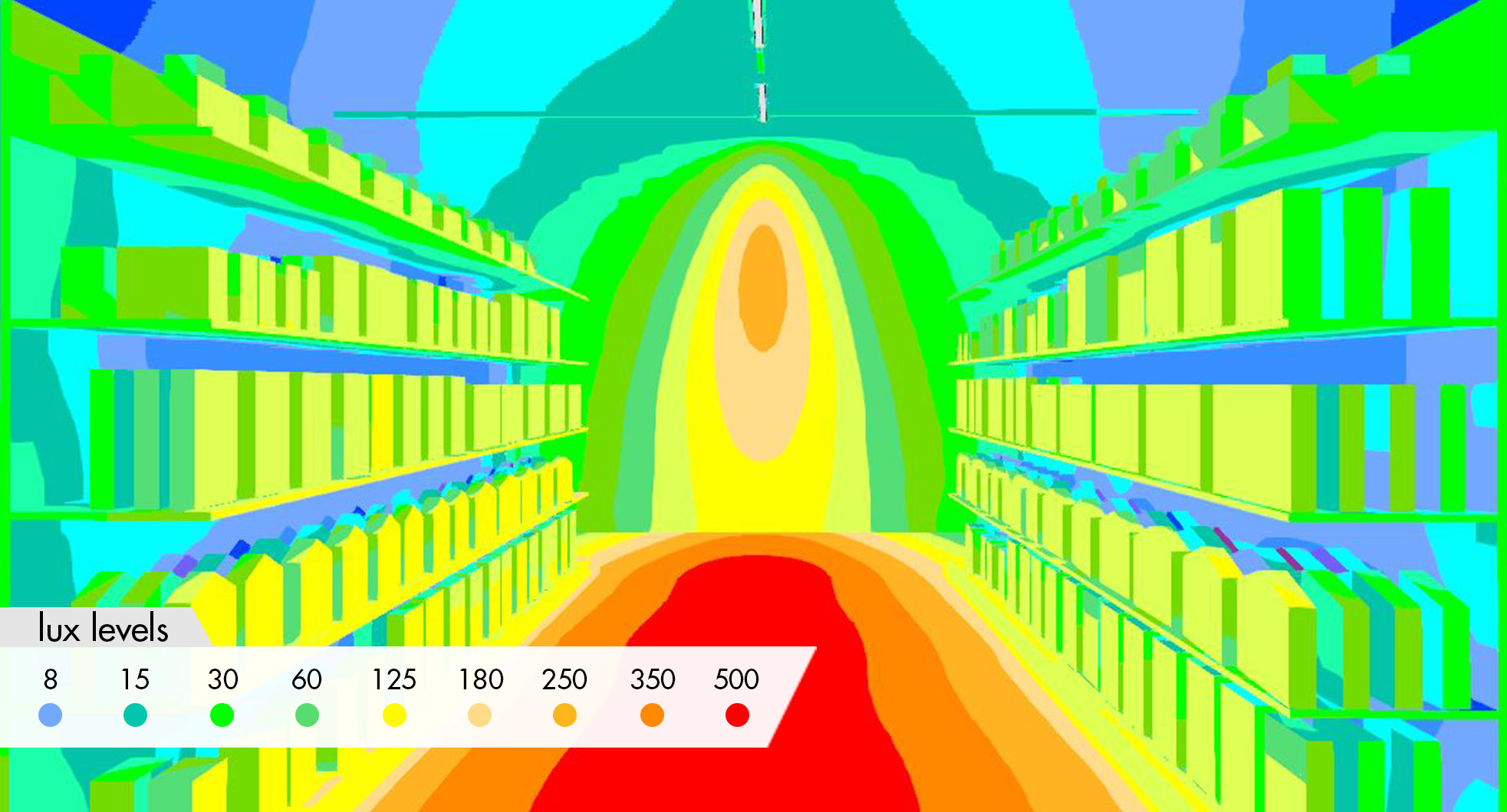

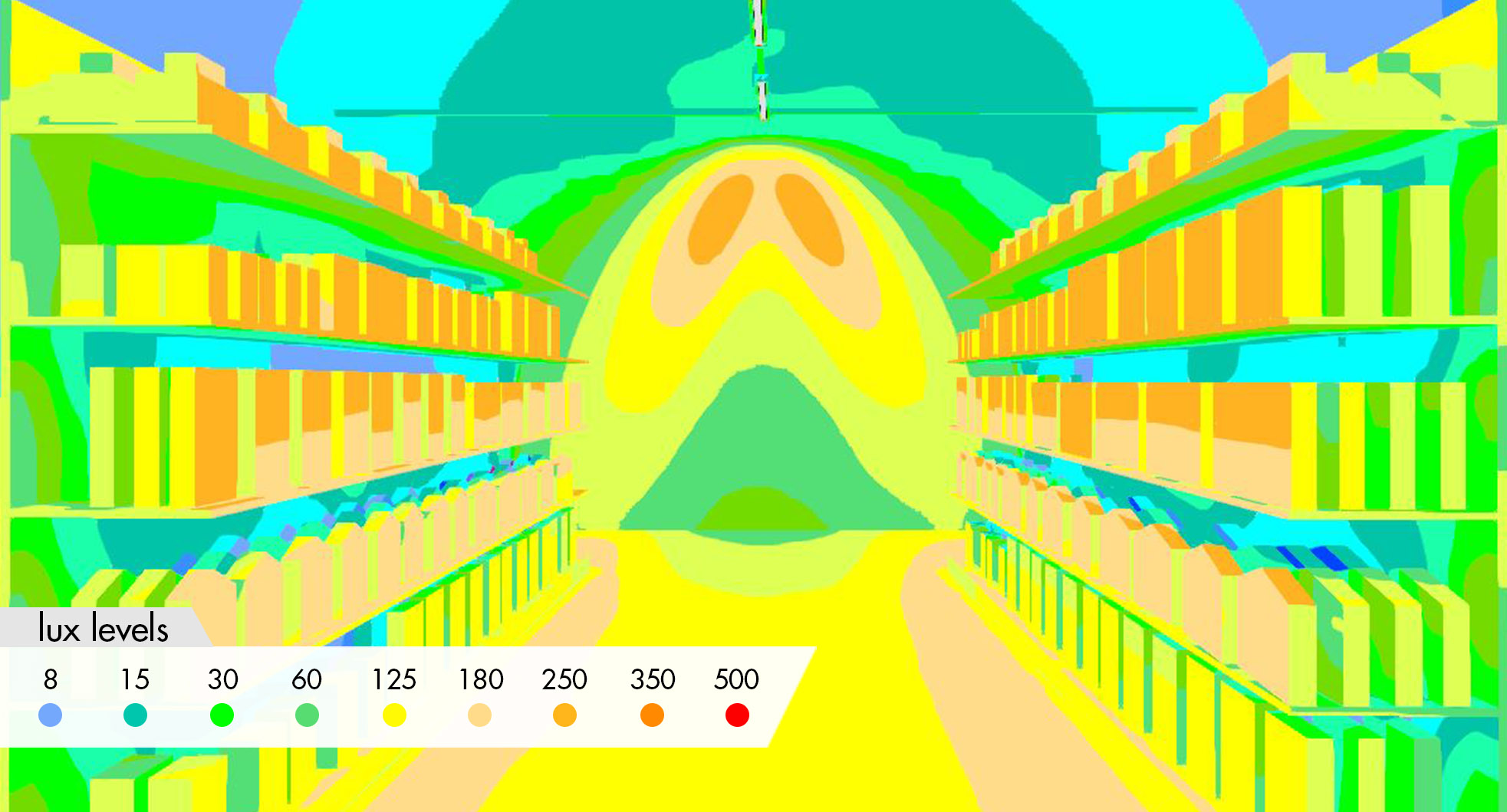

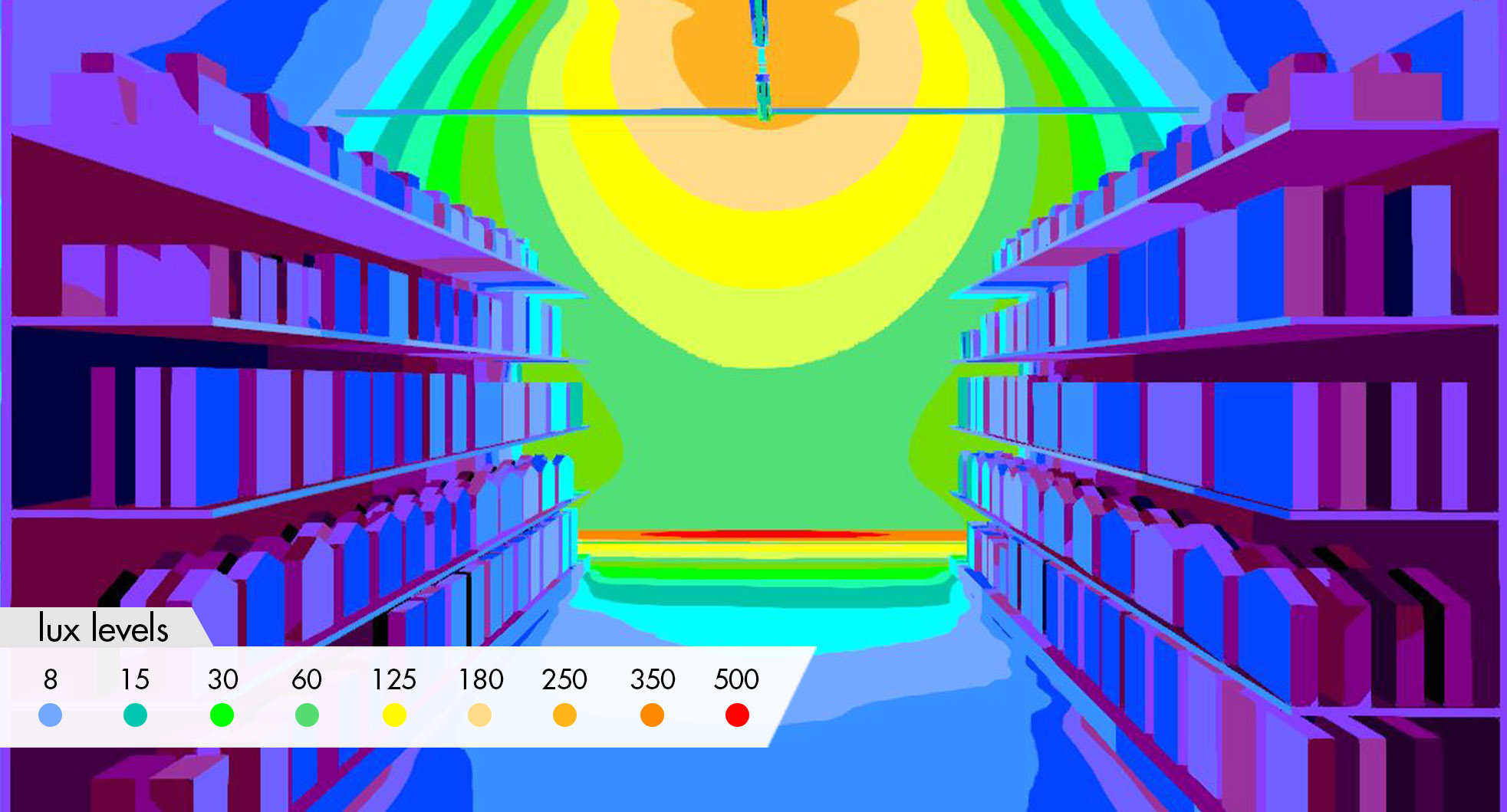

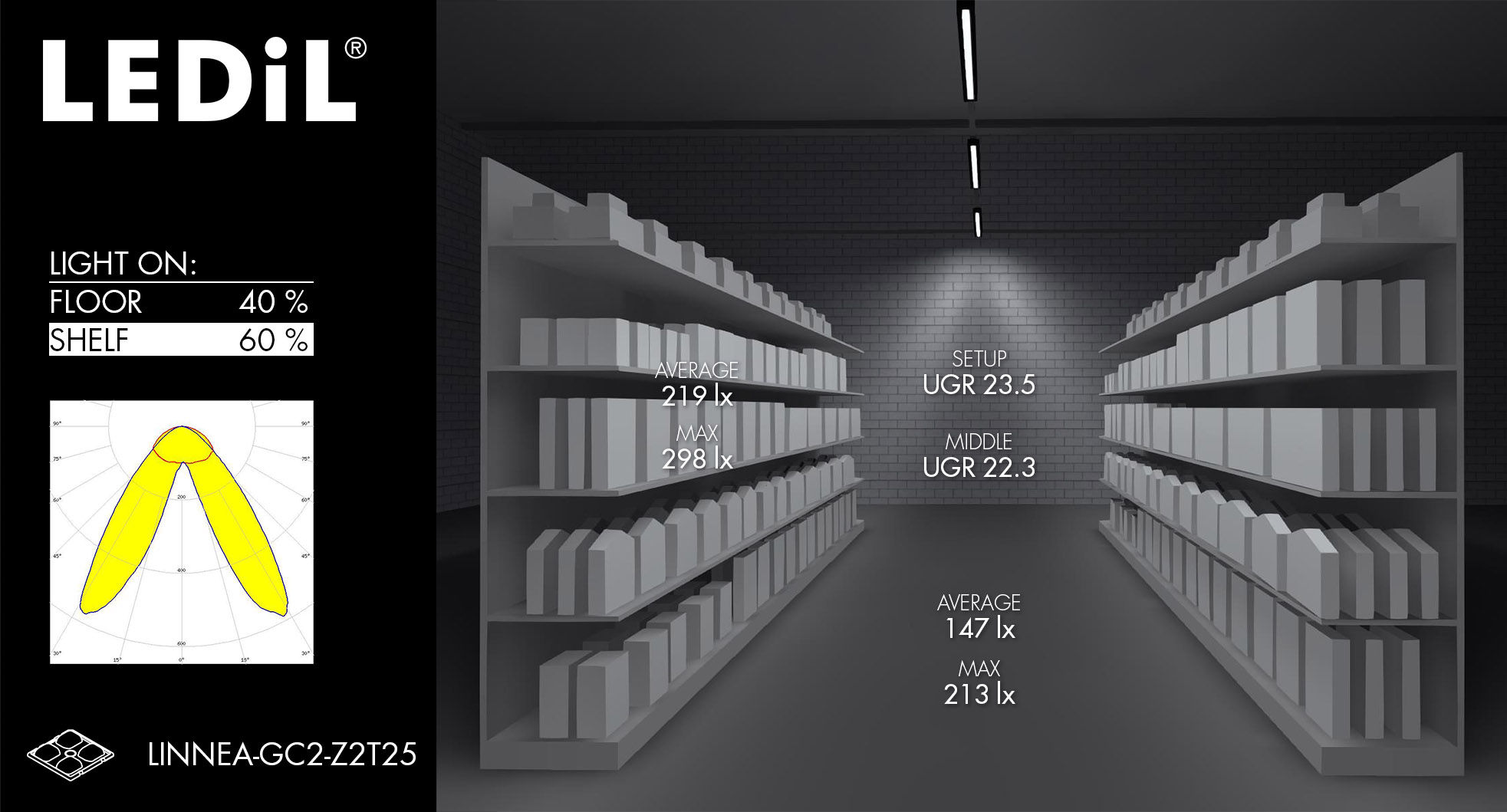

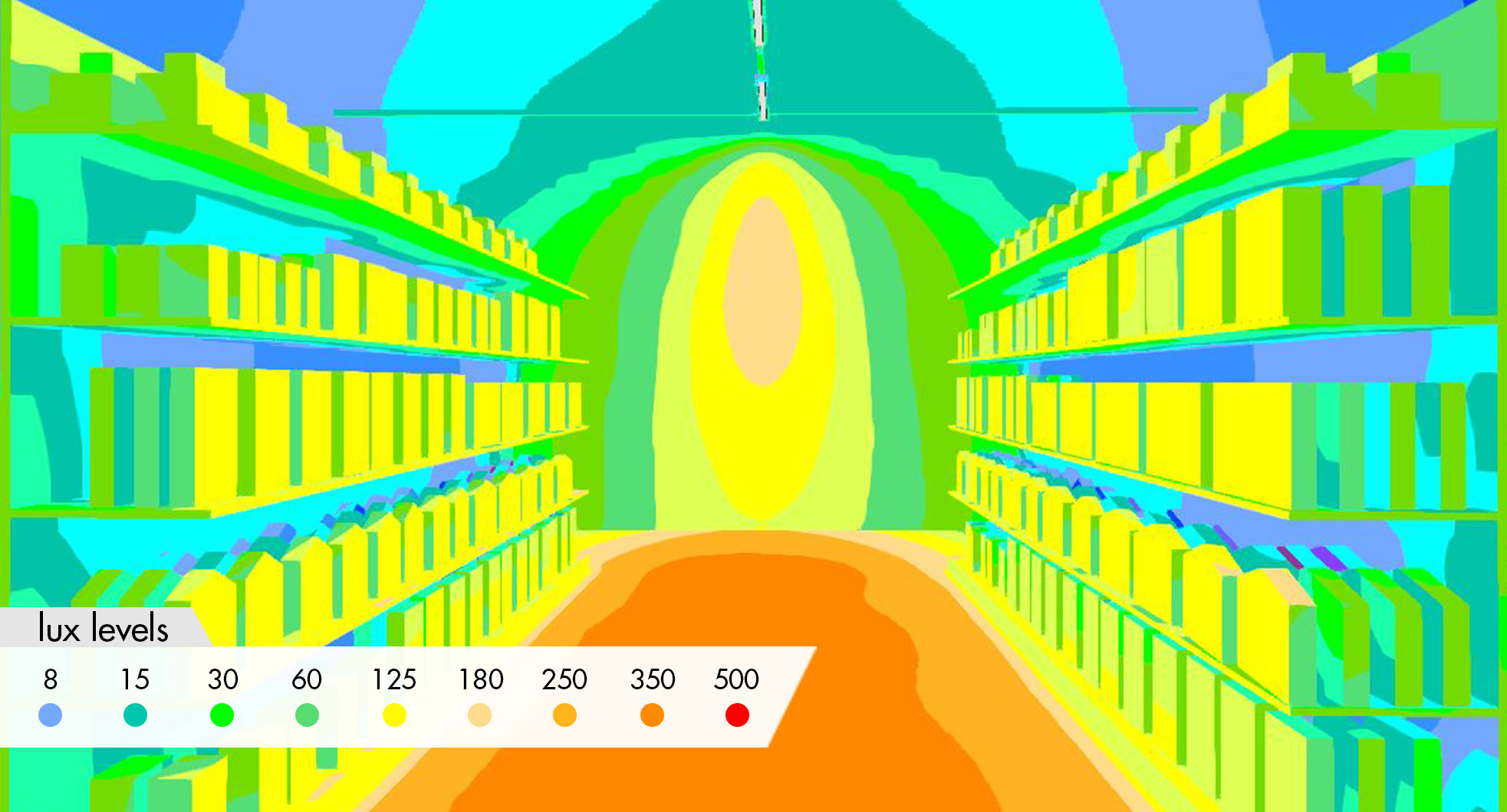

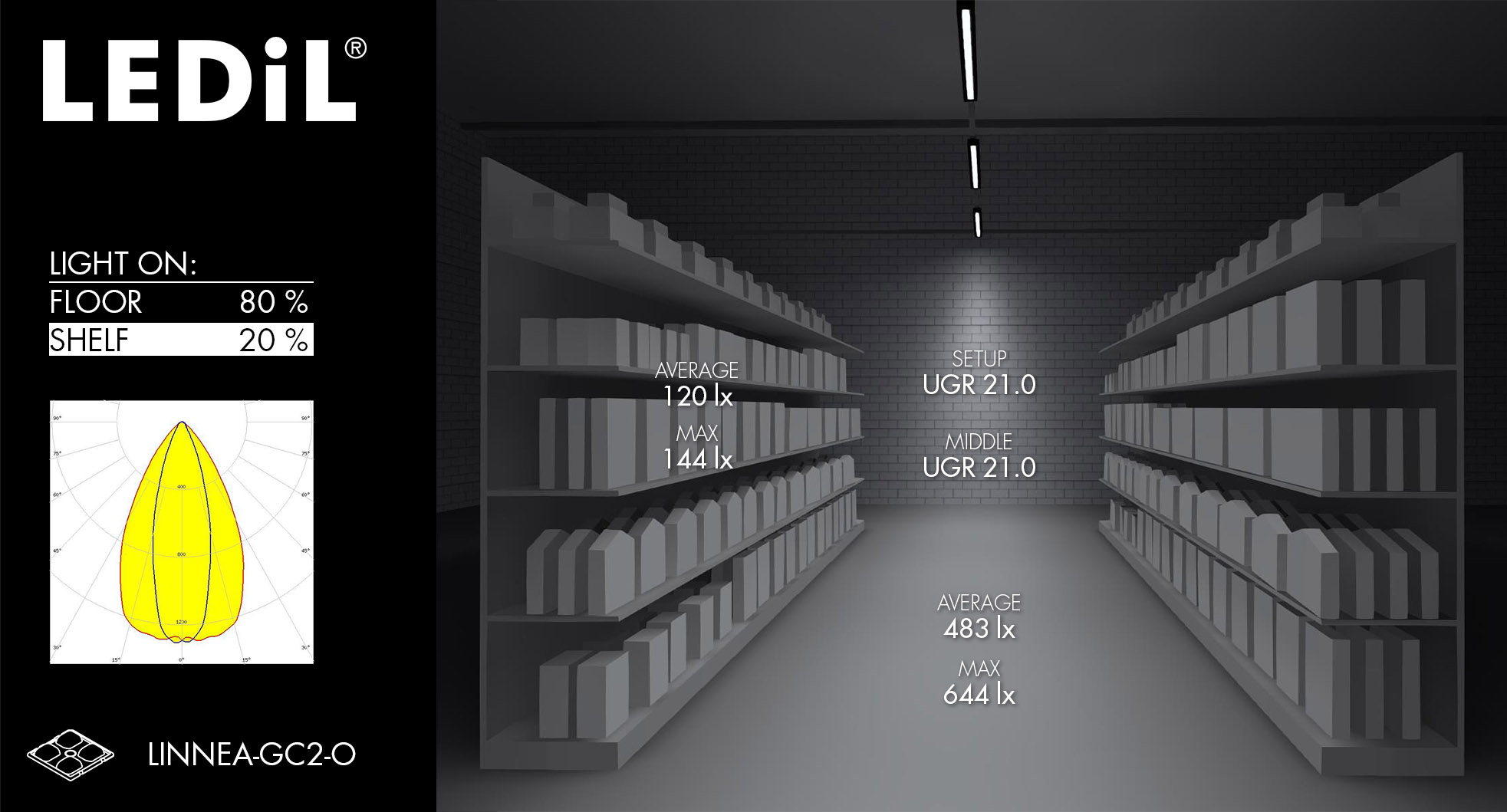

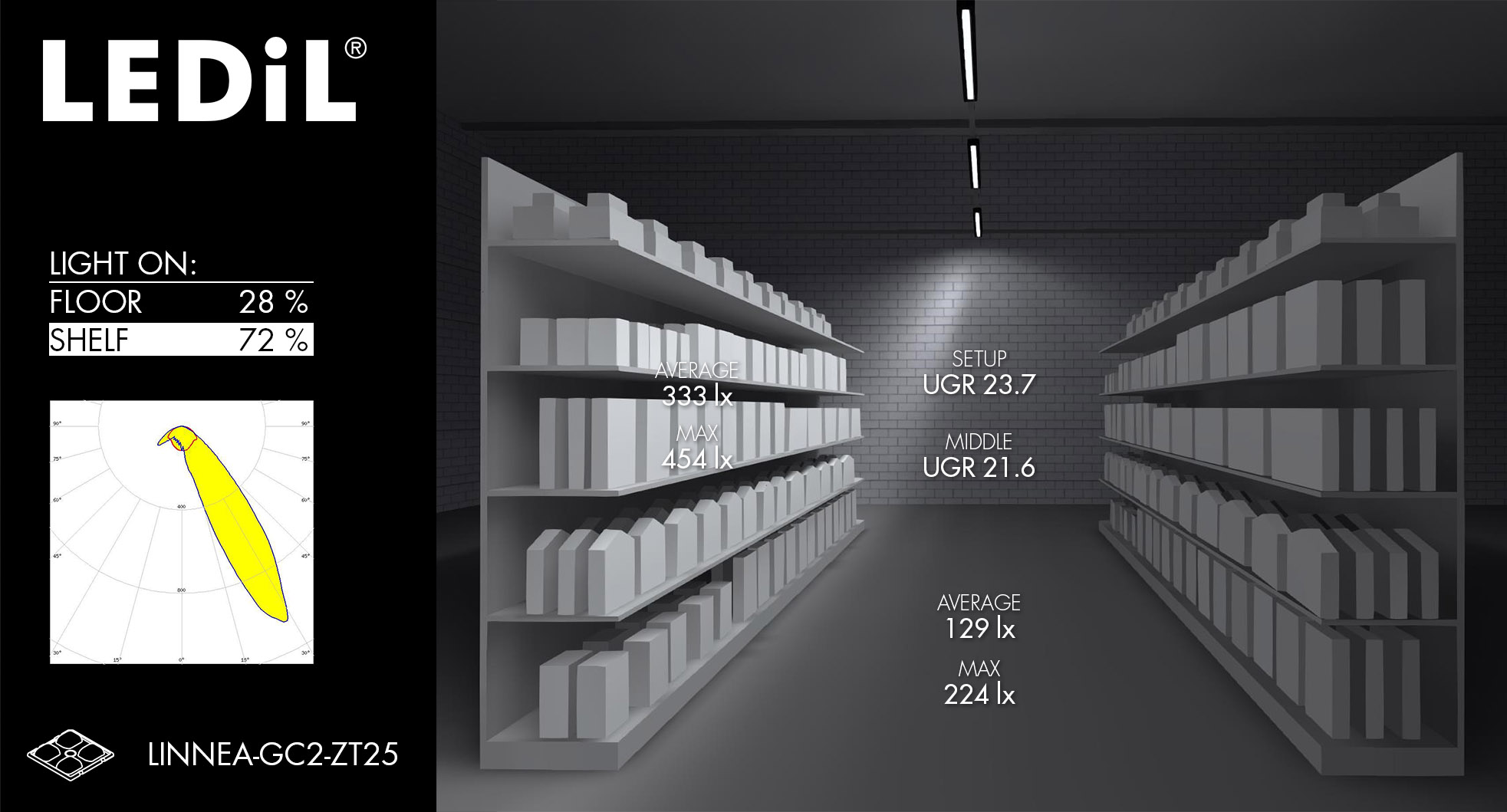

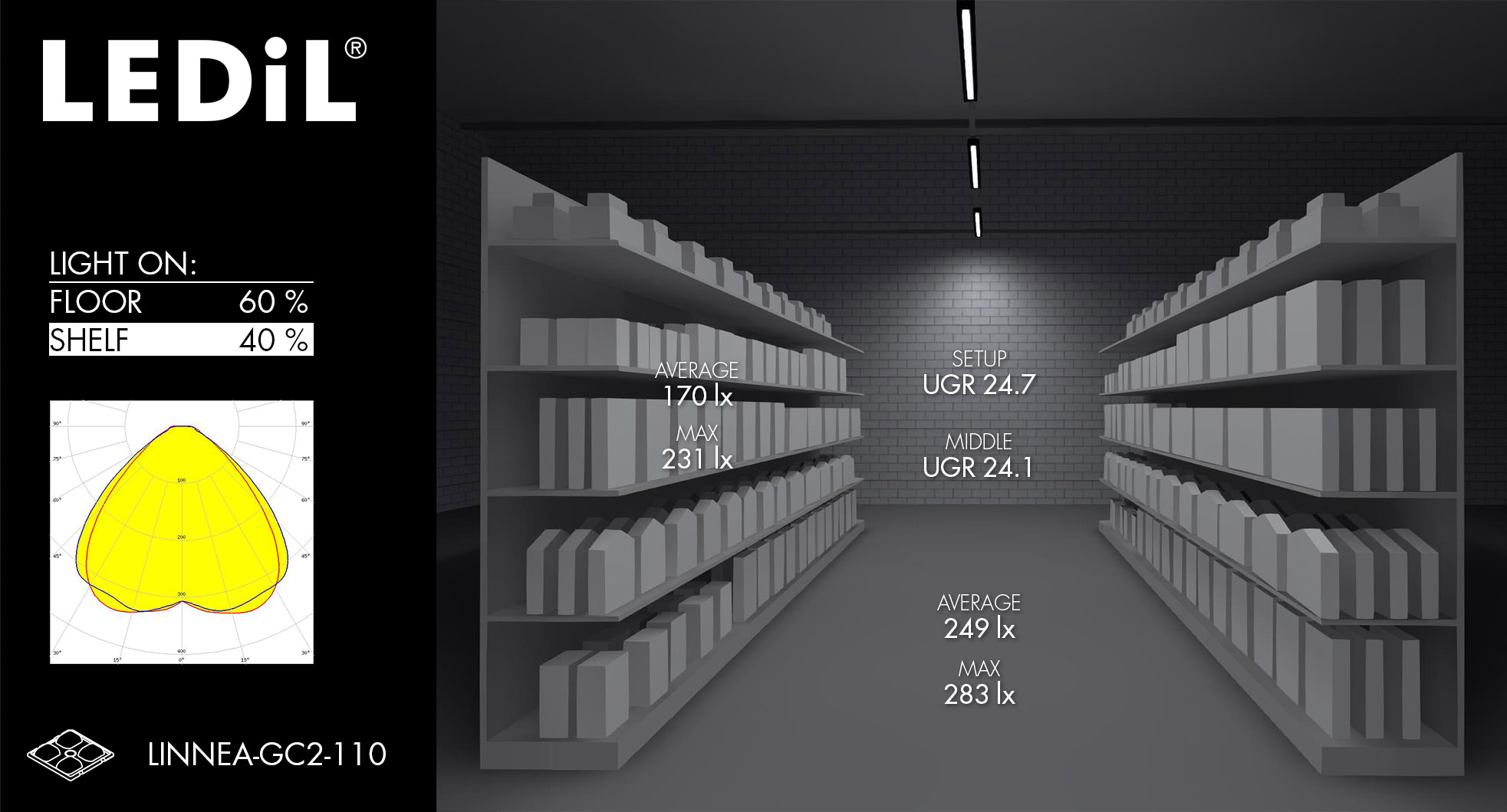

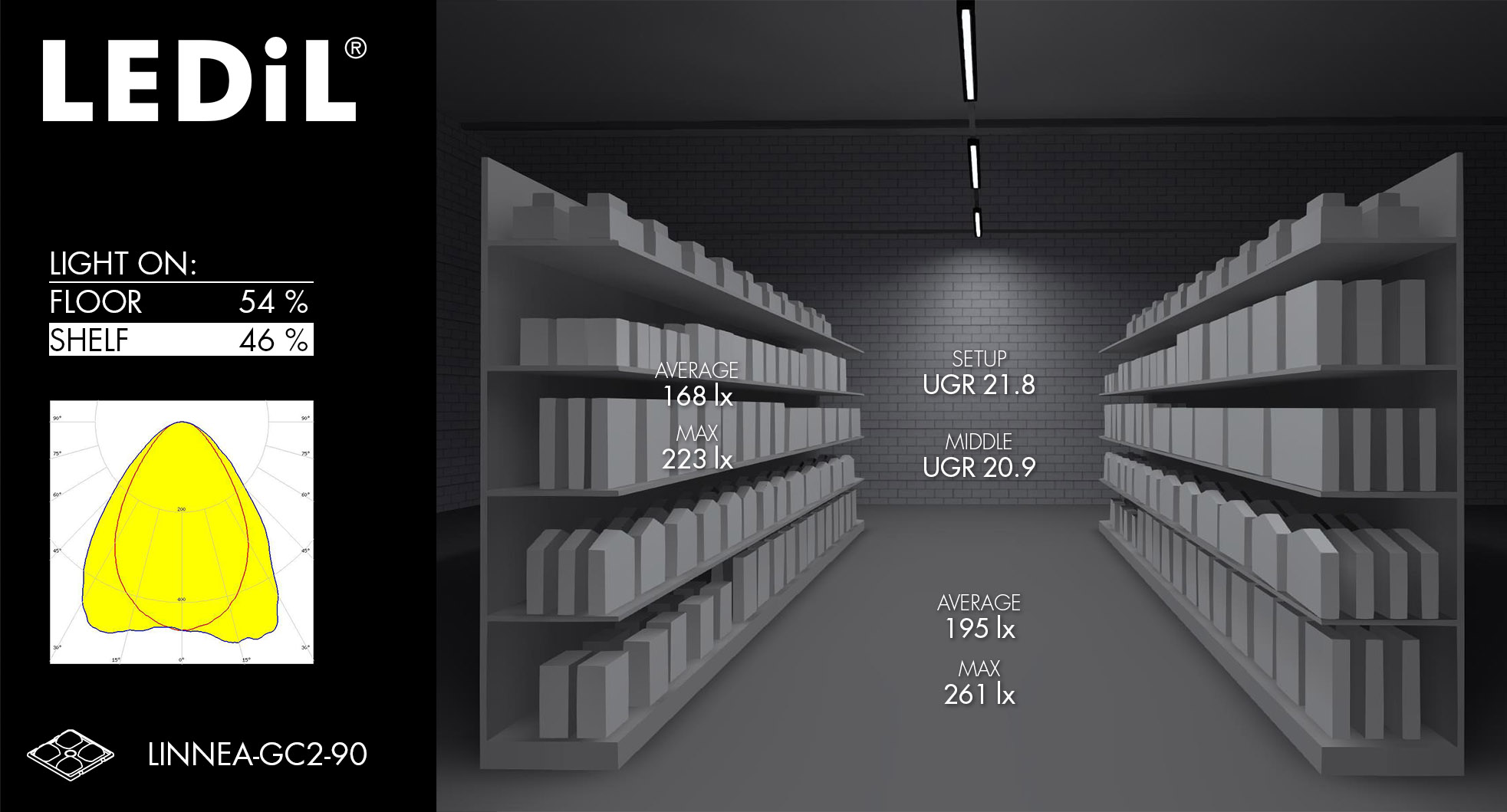

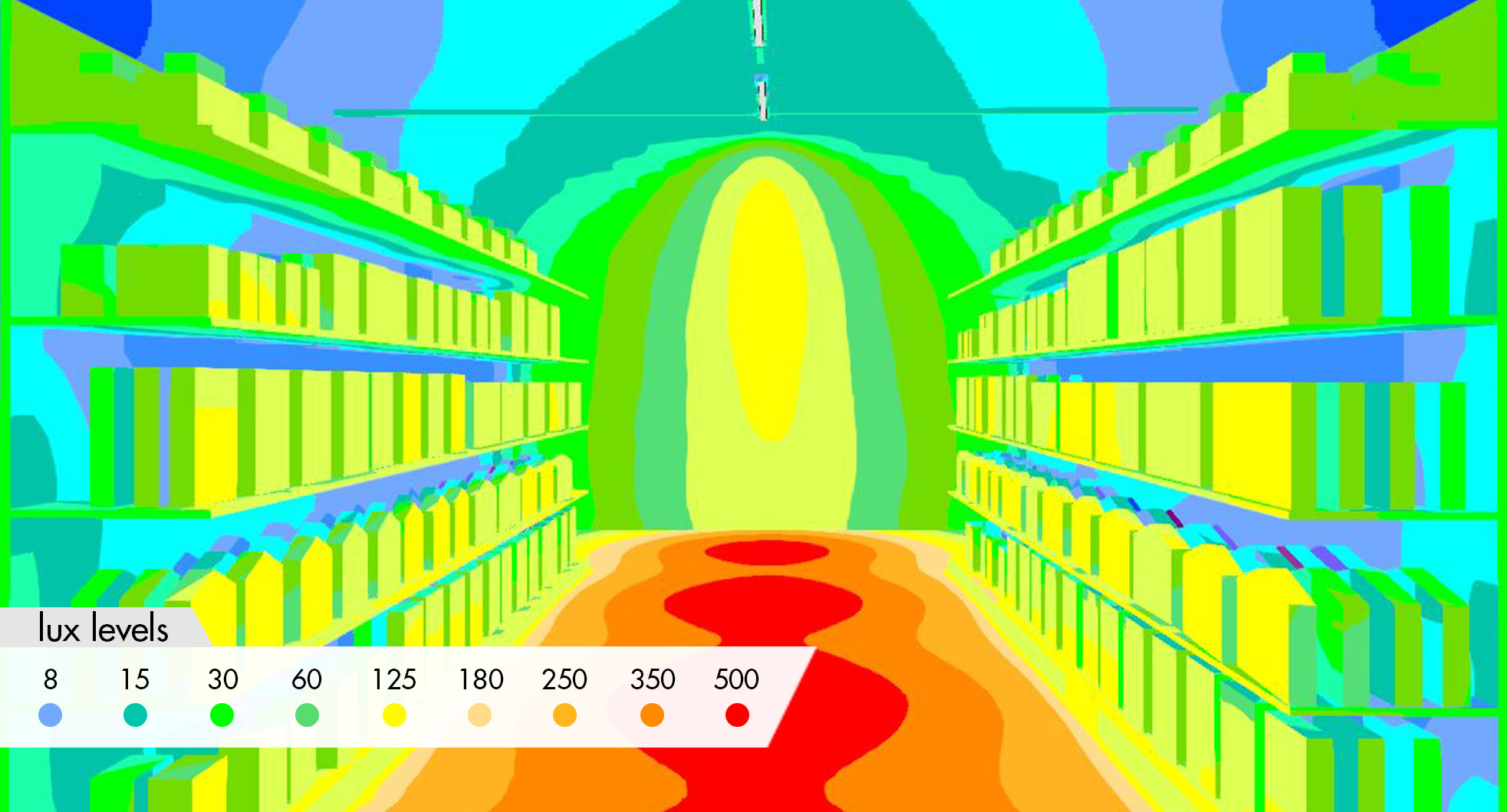

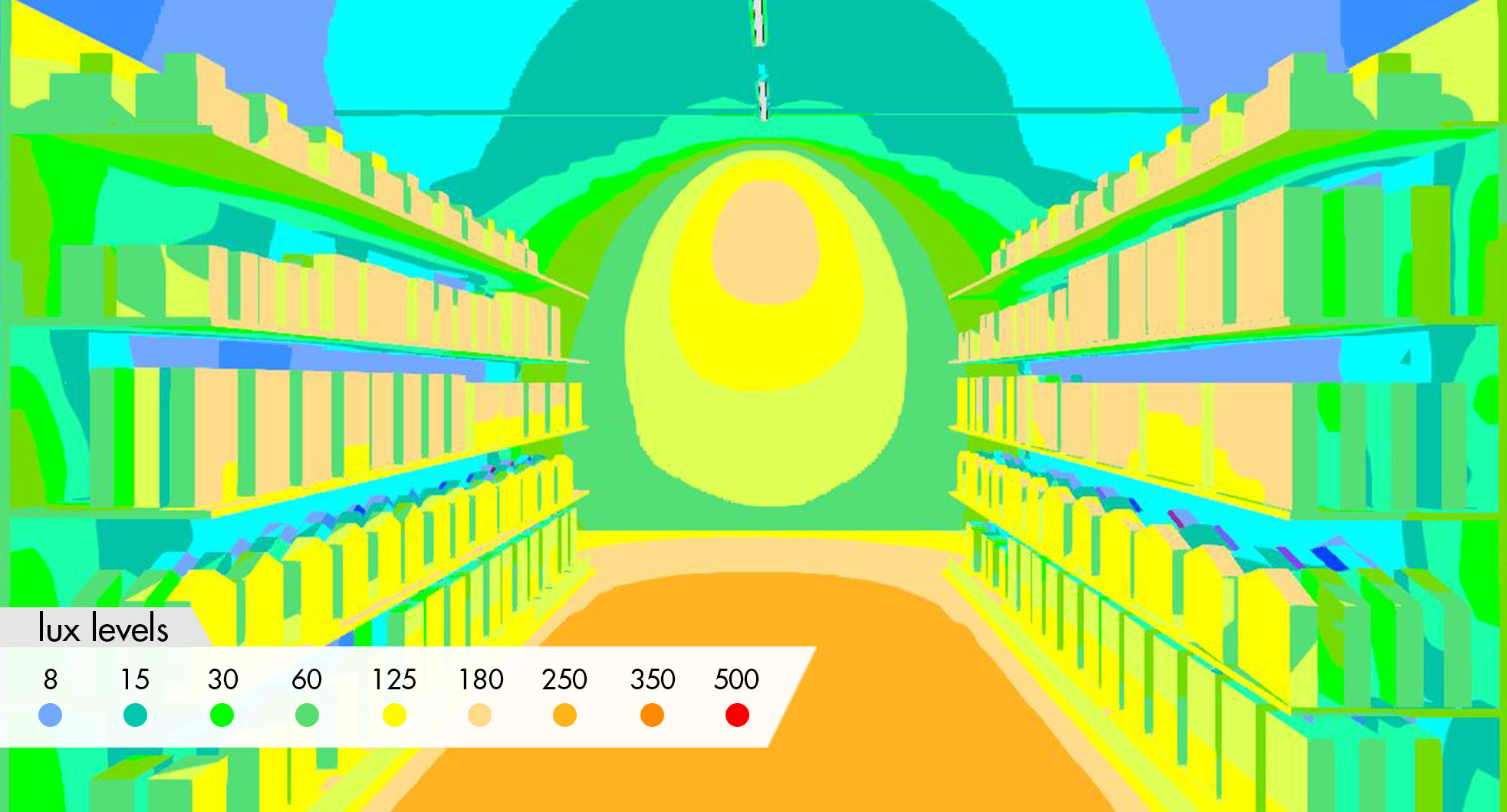

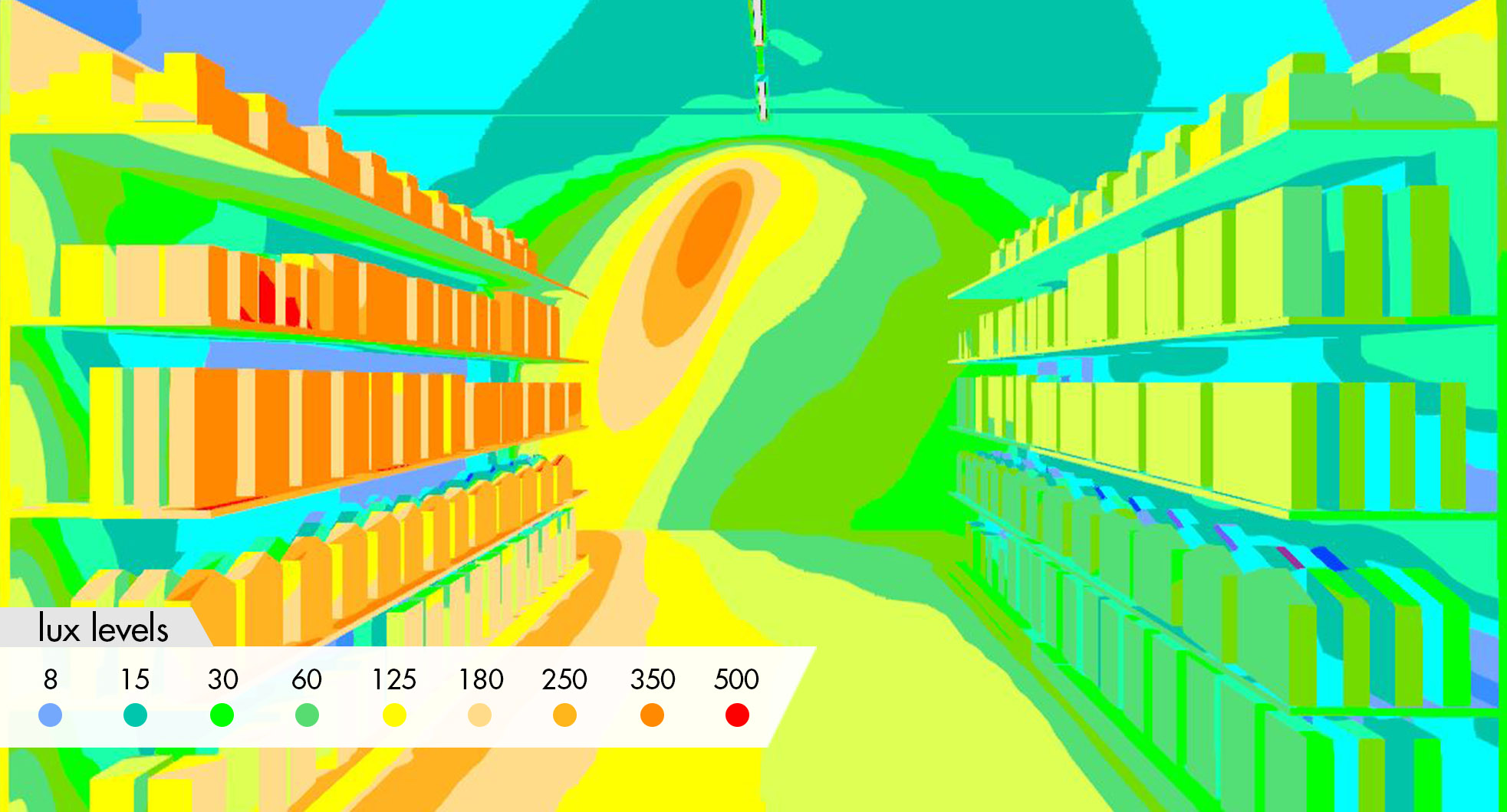

Visualization of various aisle lighting options using different LINNEA-GC2 beam angles. The setups show the light effects that can be achieved.
SETUP
| Application: | Supermarket lighting |
| LED: | 2835 Mid-power |
| PCB: | LLE_24x280mm Tridonic PCB |
| Efficiency (Optics): | 85-92% |
| Installation Height: | 3.5 m |
| Distance between aisle luminaires: | 1.8 m |
| Distance from wall, WG: | 0.3 m |
| Number of luminaires: | 3 aisle, 1 wallgrazer |
| Number of optics in the luminaire: | 4 x LINNEA-GC2 |
| Luminaire output: | 4000 lm |
| Luminaire power: | 22 W |
Aisle lighting with LINNEA-GC2
