APPLICATION EXAMPLE

Aisle lighting using track lights with ALISE reflectors


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

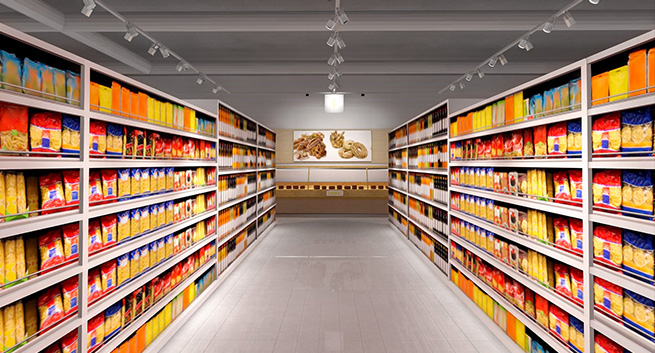

Aisle lighting with ALISE reflectors.

BENEFITS:

  • High level of accent light on the shelves
  • Easy to adjust to different aisle sizes
  • Low glare
  • No reflection from the floor
Ratio and uniformity can be improved with wall-washing reflectors.

SETUP:

Optics: ALISE-70-M
Luminous flux (Luminaire): 1500 lm
Luminaire spacing: 0.5 m

RESULTS:

On shelves: 1000 lx
On floor: 700 lx
GO TO PRODUCT CARDS
C16904_ALISE-70-M
