APPLICATION EXAMPLE

Aircraft stand area lighting with JENNY-FT65


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

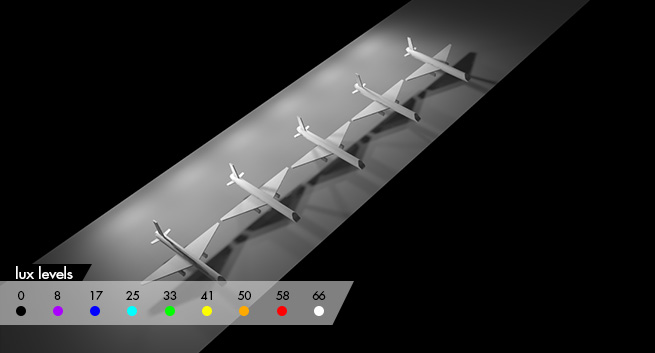

Correct lighting in aircraft stand area increases safety, comfort and decreases amount of shadows between planes. Simulation is made by using a luminaire fixture with protective glass. No light is going upwards.

SETUP:

Application: Aircraft stand area
Optics: JENNY-FT65
Area size: 75 x 285 m
Maintenance factor: 0.8
Luminous flux (luminaire): 41 000 lm
Number of luminaires in a pole: 1 pcs
Optic grid in luminaire: 5 x 8 pcs
Number of optics in a luminaire: 40 pcs
Pole spacing: 47.5 m
Mounting height: 28 m

RESULTS:

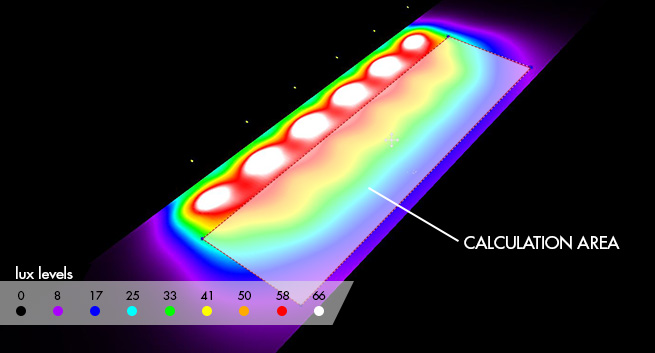

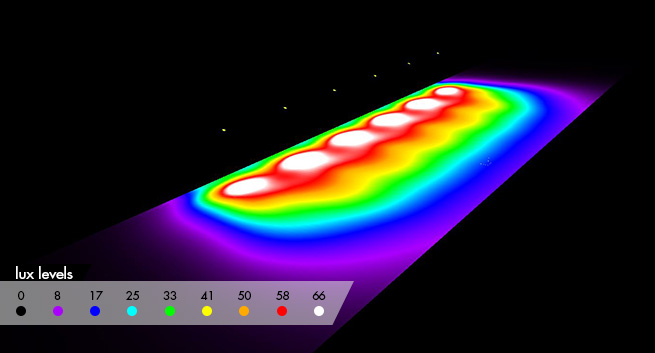

Horizontal at ground level
Average: 33 lx
Average requirement: ≥20 lx
Uo: 0.26
Uo requirement: ≥0.25
Vertical at 2 m height
Average: 20 lx
Average requirement: ≥20 lx
GO TO PRODUCT CARDS
F15909_JENNY-FT65
F15910_JENNY-8X1-FT65
